Area scan cameras
USB3.0 area scan camera, 0.3 MP, USB3, Color (LS-CMR-0468)
Model LS-CMR-0468
- Resolution640 × 480
- SensorGlobal Shutter
- InterfaceUSB3.0
- Speed721FPS
- Lens mountC-mount
- Mono / colourColor
$219.00
Ships in 2-3 weeks
0.16 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
This series of USB3.0 area scan cameras includes color and monochrome, global and rolling shutter.Fastest transmission speed reaches 440MByte/s.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0468 |
|---|---|
| Image Cache | 1Gbit |
| Compatibility | USB3.0Vision,GenlCam,HALCON,LabView,OpenCV |
Sensor and imaging
| Sensor type | Global Shutter |
|---|---|
| Resolution | 640 × 480 |
| Pixel size | 4.0 μm×4.0 μm |
| Mono/color | Color |
| Max Frame Rate | 721FPS |
| Gain | 1x~3x,step0.125x |
| Dynamic range | 40db |
| Exposure time | 5us-43ms |
| Shutter | Global Shutter |
Interfaces and I/O
| Data interface | USB3.0 |
|---|---|
| Lens interface | C-Mount |
Light
| Mono / colour | Color |
|---|
Environment and compliance
| Temperature | Operating temperature:-10℃~50℃ |
|---|---|
| Humidity | 5% ~ 90%RH (non-condensing) |
| Certifications | CE,FCC,RoHS |
Computing
| Operating Systems | Windows7/10 32/64bit; PC Linux 32/64bit |
|---|
Electrical
| Output Image Format | RAW8, RAW16, BGR24, MONO8, MONO16 |
|---|---|
| Trigger mode | Hardware Trigger, Software Trigger |
| Power supply | USB5V power supply |
| Typical Power Consumption | Working:1.64W,standby:1.12W |
| IP Protection Rating | IP30 |
| Voltage | USB5V power supply |
Mechanical
| Optical Size | 1/5" |
|---|---|

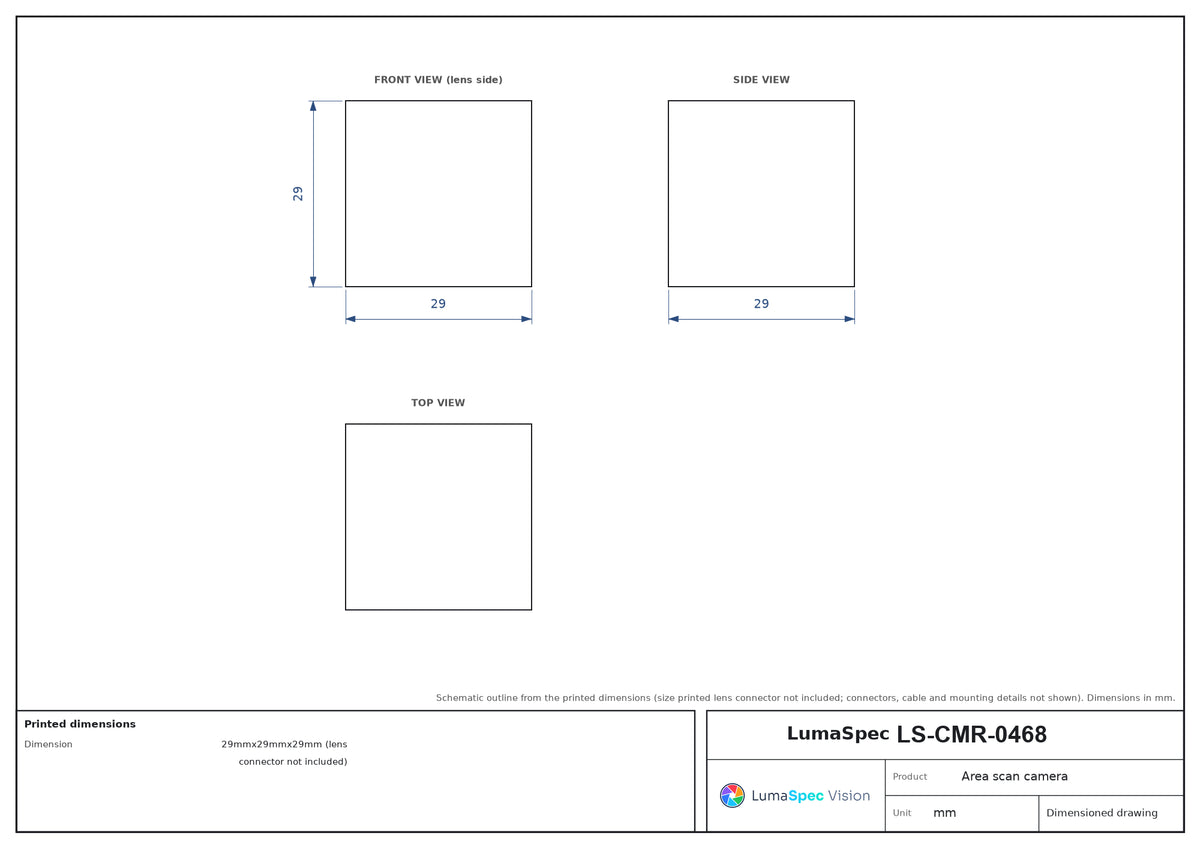

| Dimension | 29mmx29mmx29mm (lens connector not included) |
| Weight | Approx. 40g |

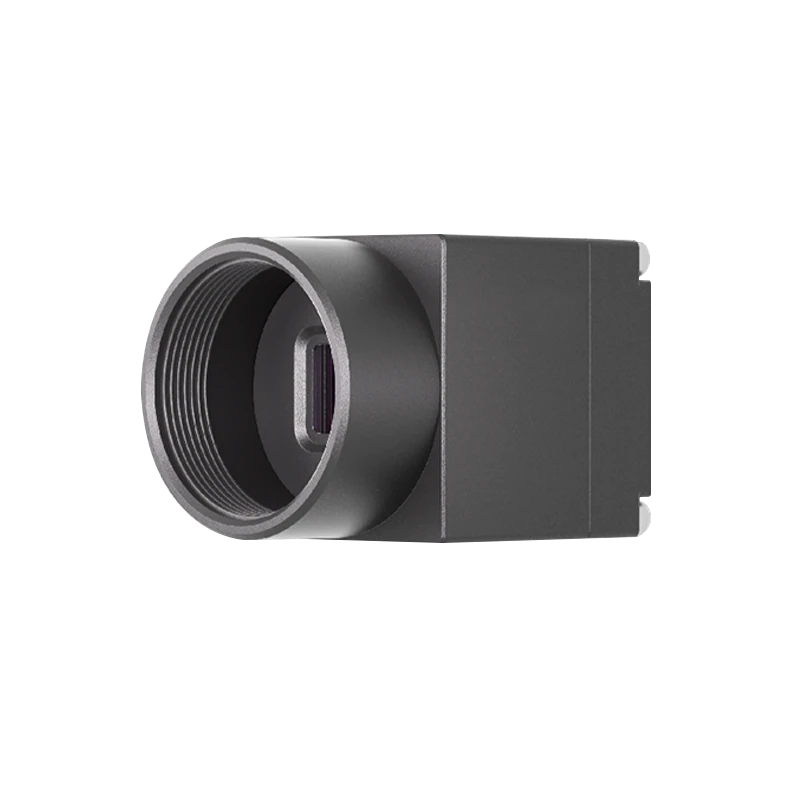

Photo shows a representative model of this series; see the specifications for this model.
Other models in the USB3.0 area scan camera (LS-CMR-S36) series
See all 17 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CMR-0475 | 2.5 MP, USB3, Color/Mono | $179.00 | Ships in 2-3 weeks | View |
| LS-CMR-0469 | 0.3 MP, USB3, Color/Mono | $219.00 | Ships in 2-3 weeks | View |
| LS-CMR-0470 | 0.3 MP, USB3, Mono | $219.00 | Ships in 2-3 weeks | View |
| LS-CMR-0476 | 5.0 MP, USB3, Mono | $239.00 | Ships in 2-3 weeks | View |
| LS-CMR-0478 | 6.3 MP, USB3, Color/Mono | $269.00 | Ships in 2-3 weeks | View |
| LS-CMR-0479 | 8.3 MP, USB3, Color | $269.00 | Ships in 2-3 weeks | View |
| LS-CMR-0471 | 1.3 MP, USB3, Color/Mono | $359.00 | Ships in 2-3 weeks | View |
| LS-CMR-0472 | 1.3 MP, USB3, Color/Mono | $359.00 | Ships in 2-3 weeks | View |
| LS-CMR-0480 | 12 MP, USB3, Color/Mono | $379.00 | Ships in 2-3 weeks | View |
| LS-CMR-0473 | 1.6 MP, USB3, Color/Mono | $389.00 | Ships in 2-3 weeks | View |
| LS-CMR-0474 | 2.3 MP, USB3, Color/Mono | $469.00 | Ships in 2-3 weeks | View |
| LS-CMR-0484 | 20 MP, USB3, Color/Mono | $569.00 | Ships in 2-3 weeks | View |
| LS-CMR-0477 | 5.0 MP, USB3, Color/Mono | $689.00 | Ships in 2-3 weeks | View |
| LS-CMR-0481 | 13 MP, USB3, Color/Mono | $1,769.00 | Ships in 2-3 weeks | View |
| LS-CMR-0482 | 13 MP, USB3, Color | $1,769.00 | Ships in 2-3 weeks | View |
| LS-CMR-0483 | 13 MP, USB3, Mono | $1,769.00 | Ships in 2-3 weeks | View |
