Area scan cameras

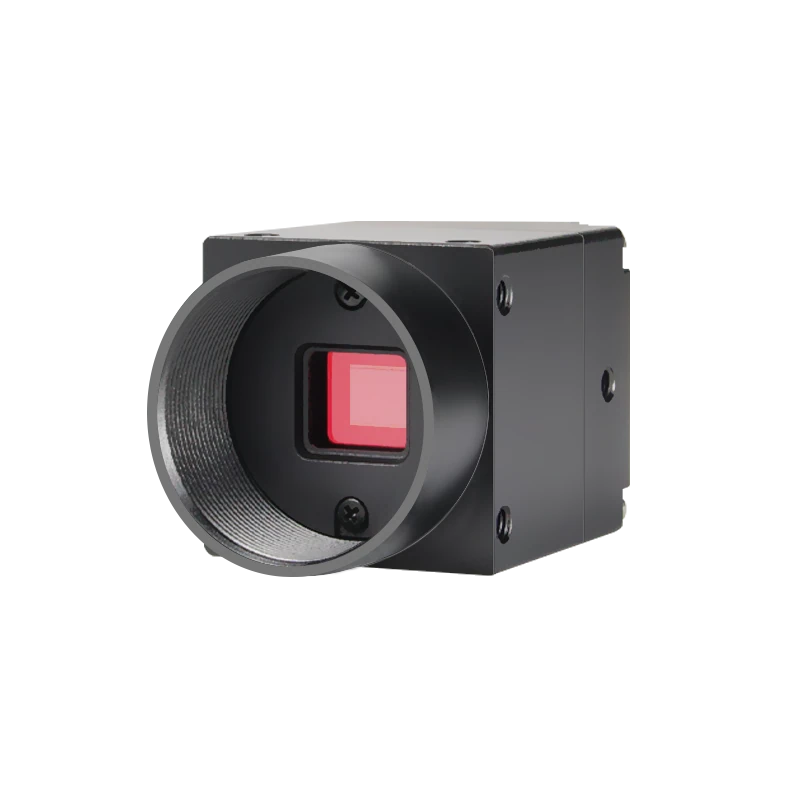

GigE area scan camera (LS-CMR-S30)
- 27 models
- from $149.00
- Series LS-CMR-S30
The GigE area scan camera (LS-CMR-S30) is a range of 27 area scan cameras from LumaSpec Vision, from $149.00. It comes in 22 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.3 MP, GigE, Mono, 0.4 MP, GigE, Color, 0.4 MP, GigE, Mono, 1.3 MP, GigE, Color, 1.3 MP, GigE, Color/Mono, 1.3 MP, GigE, Mono, 1.6 MP, GigE, Color/Mono, 2.1 MP, GigE, Mono, 2.3 MP, GigE, Color, 2.3 MP, GigE, Color/Mono, 2.5 MP, GigE, Color/Mono, 5.0 MP, GigE, Color/Mono, 5.0 MP, GigE, Mono, 5.2 MP, GigE, Mono, 6.2 MP, GigE, Color/Mono, 6.3 MP, GigE, Color/Mono and 6 more
- Interface
- GigE
- Resolution
- Up to 3 MP, 5 MP, 6-10 MP, 12 MP, 16-25 MP
- Shutter
- Global, Rolling
- Colour
- Color, Mono
- Lens mount
- C-mount
- Sensor format
- 1/2.5" and smaller, 1/1.8" - 1/1.56", 2/3", 1/1.2", 1", 1.1" - 1.2", 4/3" - APS-C
Features
- Built-in large capacity frame buffer,with packet retransmission technology, to ensure reliable and real-time transmission.
- Built-in ISP, support gamma, contrast, LUT, reduce host CPU consumption, improve real-time performance.
- Support multiple cameras work at the same time, the number is not limited, any networking.
- New appearance structure,higher installation accuracy.
All 27 models in the GigE area scan camera (LS-CMR-S30)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CMR-0436 | 5.0 MP, GigE, Mono | 2736*1842 | 7FPS | 4.88 μm | $149.00 | View |
| LS-CMR-0439 | 5.2 MP, GigE, Mono | 2640*1978 | 7FPS | 6.9 μm | $149.00 | View |
| LS-CMR-0437 | 5.0 MP, GigE, Color/Mono | 2592*1944 | 23.8FPS | 2.2 μm | $149.00 | View |
| LS-CMR-0432 | 2.1 MP, GigE, Mono | 1920*1080 | 30FPS | 2.9 μm | $219.00 | View |
| LS-CMR-0441 | 6.3 MP, GigE, Color/Mono | 3072*2048 | 19FPS | 2.4 μm | $219.00 | View |
| LS-CMR-0435 | 2.5 MP, GigE, Color/Mono | 2048*1200 | 49FPS | 4.0 μm | $239.00 | View |
| LS-CMR-0424 | 0.4 MP, GigE, Color | 720*540 | 300FPS | 8.0 μm | $299.00 | View |
| LS-CMR-0425 | 0.4 MP, GigE, Mono | 720*540 | 313FPS | 8.0 μm | $299.00 | View |
| LS-CMR-0428 | 1.3 MP, GigE, Color/Mono | 1280*1040 | 93FPS | 4.0 μm | $299.00 | View |
| LS-CMR-0430 | 1.3 MP, GigE, Mono | 1280*1040 | 93FPS | 4.0 μm | $299.00 | View |
| LS-CMR-0431 | 1.6 MP, GigE, Color/Mono | 1480*1092 | 75FPS | 4.0 μm | $299.00 | View |
| LS-CMR-0423 | 0.3 MP, GigE, Mono | 640*480 | 350FP | 4.0 μm | $299.00 | View |
| LS-CMR-0429 | 1.3 MP, GigE, Mono | 1280*1024 | 92FPS | 4.0 μm | $299.00 | View |
| LS-CMR-0427 | 1.3 MP, GigE, Color/Mono | 1280*1024 | 92FPS | 4.0 μm | $299.00 | View |
| LS-CMR-0426 | 1.3 MP, GigE, Color | 1272*1016 | 46.5FPS | 4.0 μm | $299.00 | View |
| LS-CMR-0433 | 2.3 MP, GigE, Color | 1920*1200 | 23.4FPS | 5.86 μm | $349.00 | View |
| LS-CMR-0434 | 2.3 MP, GigE, Color/Mono | 1920*1200 | 40FPS | 5.86 μm | $349.00 | View |
| LS-CMR-0440 | 6.2 MP, GigE, Color/Mono | 3200*1944 | 19.5FPS | 2.0 μm | $369.00 | View |
| LS-CMR-0438 | 5.0 MP, GigE, Color/Mono | 2448*2048 | 24FPS | 3.4 μm | $509.00 | View |
| LS-CMR-0442 | 8.3 MP, GigE, Color | 3840*2160 | 14.4FPS | 2.0 μm | $519.00 | View |
| LS-CMR-0444 | 12 MP, GigE, Mono | 4000*3000 | 10FPS | 1.85 μm | $559.00 | View |
| LS-CMR-0449 | 20 MP, GigE, Color | 5480*3648 | 5.8FPS | 2.4 μm | $559.00 | View |
| LS-CMR-0443 | 12 MP, GigE, Color/Mono | 4000*3000 | 10FPS | 1.85 μm | $559.00 | View |
| LS-CMR-0448 | 20 MP, GigE, Color/Mono | 5480*3648 | 6FPS | 2.4 μm | $559.00 | View |
| LS-CMR-0447 | 13 MP, GigE, Color/Mono | 4096*3072 | 9.4FPS | 3.4 μm | $1,109.00 | View |
| LS-CMR-0446 | 13 MP, GigE, Color/Mono | 4096*3072 | 9.4FPS | 3.4 μm | $1,109.00 | View |
| LS-CMR-0445 | 13 MP, GigE, Color/Mono | 4096*3072 | 9.7FPS | 3.2 μm | $1,109.00 | View |
