GigE area scan camera, 0.4 MP, GigE, Color (LS-CMR-0424)
Model LS-CMR-0424
- Resolution720*540
- SensorCMOS, Global Shutter
- InterfaceGigE
- Speed300FPS
- Lens mountC-mount
- Mono / colourColor
$299.00
Ships in 2-3 weeks
0.17 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
This series of GigE area scan cameras includes color and monochrome, global and rolling shutter. Gigabit network interface, 100 meters long distance stable transmission.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0424 |
|---|---|
| Image Cache | 1Gbit |
| Filter | 380nm-650nm bandpass filter |
| Software | SDK development kit, and associated demo/calibration software BasedCam3 |
| Compatible Software | NI MAX, Halcon, VisionPro, MV Viewer |
Sensor and imaging
| Resolution | 720*540 |
|---|---|
| Pixel size | 8.0 μm |
| Shutter | Global |
| Frame rate | 300FPS |
| Sensor type | CMOS, Global Shutter |
| Mono/color | Color |
| Max Frame Rate | 300FPS@720×540 Bayer8 |
| Gain | 1x~15.5x; step 0.2x |
| Dynamic range | 68.5 dB |
| Exposure time | 1μs~10sec, step 1μs |
| Exposure mode | Support Auto Exposure/Manual Exposure/Single Exposure |
Interfaces and I/O
| Data interface | GigE |
|---|---|
| I/O Interface | 1 optocoupler input, 1 optocoupler output, 1 bi-directional IO (no optocoupler isolation) |
| Lens interface | C port, optical back focus 17.5mm |
| IO and Power Interface | 6 pole industrial circular connector |
| Protocols/Standards | WIGigE Vision V1.2, GenICam |
Light
| Color/Mono | Color |
|---|---|
| Mono / colour | Color |
Environment and compliance
| Temperature | Operating temperature:-10℃~50℃, Storage temperature:-20℃ ~ 70℃ |
|---|---|
| Humidity | 5% ~ 90%RH (non-condensing) |
| Certifications | CE, RoHS |
Computing
| Operating Systems | Windows7/10 32/64bit; PC Linux 32/64bit |
|---|
Electrical
| Output Image Format | Bayer8 /Bayer12 /Mono8 /Mono12 |
|---|---|
| Trigger mode | Hardware Trigger, Software Trigger |
| Power supply | POE power supply or DC 12-24V (±10%) power supply |
| Typical Power Consumption | 2.2W@24VDC |
| IP Protection Rating | IP40 (with lens and cables properly installed) |
| Voltage | POE power supply or DC 12-24V (±10%) power supply |
Mechanical
| Target size | 1/2.5" |
|---|---|
| Lens mount | C |
| Optical Size | 1/2.5" Diagonal 7.2mm |
| Dimension | 29mm x 29mm x 31.5mm (lens connector not included) |
| Weight | Approx. 51.6g |

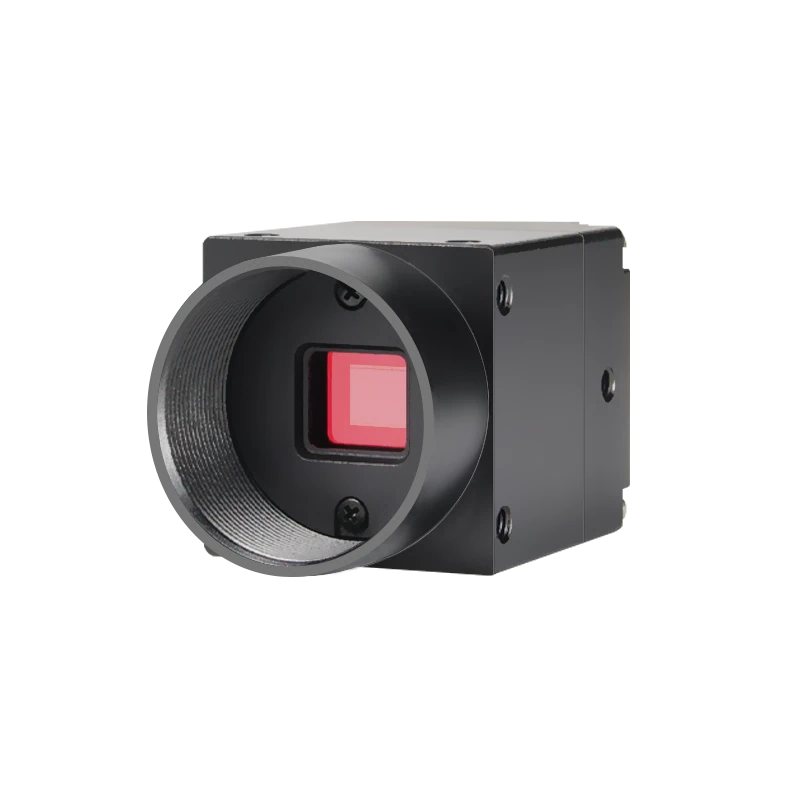

Photo shows a representative model of this series; see the specifications for this model.
