Area scan cameras

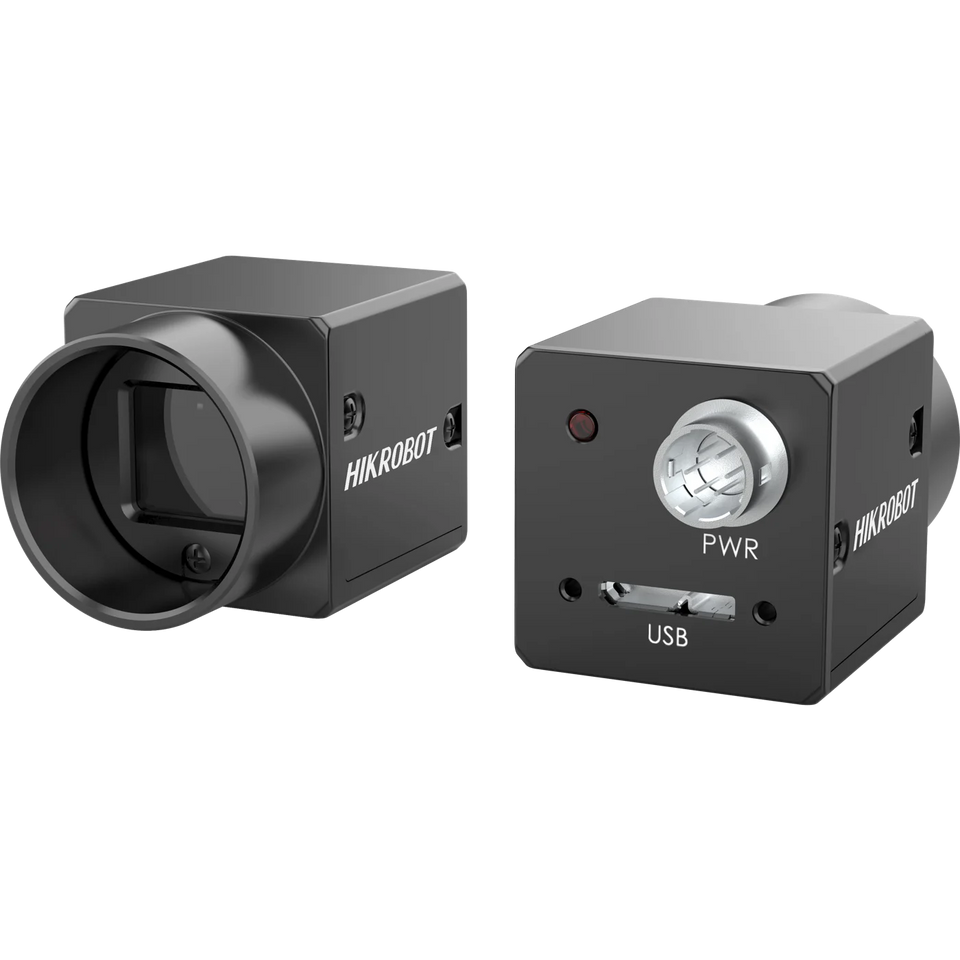

CA Series USB3.0 Area Scan Cameras
- 15 models
- from $289.00
- Series HIK-CA-USB
The CA Series USB3.0 Area Scan Cameras is a range of 15 area scan cameras from Hikrobot, from $289.00. It comes in 14 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.3 MP, 1/4", USB3, Color, 0.4 MP, 1/2.9", USB3, Color, 0.4 MP, 1/2.9", USB3, Mono, 1.3 MP, 1/2", USB3, Color, 1.3 MP, 1/2", USB3, Mono, 1.6 MP, 1/2.9", USB3, Color, 1.6 MP, 1/2.9", USB3, Mono, 2 MP, 1/1.7", USB3, Color, 2 MP, 1/1.7", USB3, Mono, 2.3 MP, 1/1.2", USB3, Color, 2.3 MP, 1/1.2", USB3, Mono, 5 MP, 2/3", USB3, Color, 5 MP, 2/3", USB3, Mono, 5.3 MP, 1", USB3, Mono
- Interface
- USB3
- Resolution
- Up to 3 MP, 5 MP
- Shutter
- Global
- Colour
- Color, Mono
- Lens mount
- C-mount
- Sensor format
- 1/2.5" and smaller, 1/2", 1/1.8" - 1/1.56", 2/3", 1/1.2", 1"
Features
- Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
- Supports hardware triggering, software triggering and free run mode.
- Adopts M2 screw holes for securing cable that connects USB3.0 interface.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
- Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc.
- Supports customized ROI, horizontal and vertical reverse image output.
- Adopts compact design for flexible installation.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
All 15 models in the CA Series USB3.0 Area Scan Cameras
| Link | ||||||
|---|---|---|---|---|---|---|
| MV-CA004-10UM | 0.4 MP, 1/2.9", USB3, Mono | 720 × 540 | 526.5 fps @ 720 × 540 | 1/2.9" | $289.00quote | View |
| MV-CA004-10UC | 0.4 MP, 1/2.9", USB3, Color | 720 × 540 | 526.5 fps @ 720 × 540 | 1/2.9" | $289.00quote | View |
| MV-CA003-21UC | 0.3 MP, 1/4", USB3, Color | 640 × 480 | 814.5 fps @ 640 × 480 | 1/4" | $329.00quote | View |
| MV-CA013-21UM | 1.3 MP, 1/2", USB3, Mono | 1280 × 1024 | 210 fps @ 1280 × 1024 | 1/2" | $469.00quote | View |
| MV-CA013-A0UM | 1.3 MP, 1/2", USB3, Mono | 1280 × 1024 | 201 fps @ 1280 × 1024 | 1/2" | $469.00quote | View |
| MV-CA013-A0UC | 1.3 MP, 1/2", USB3, Color | 1280 × 1024 | 201 fps @ 1280 × 1024 | 1/2" | $469.00quote | View |
| MV-CA016-10UM | 1.6 MP, 1/2.9", USB3, Mono | 1440 × 1080 | 249.1 fps @ 1440 × 1080 mono 8 | 1/2.9" | $509.00quote | View |
| MV-CA016-10UC | 1.6 MP, 1/2.9", USB3, Color | 1440 × 1080 | 249.1 fps @ 1440 × 1080 mono 8 | 1/2.9" | $509.00quote | View |
| MV-CA050-20UM | 5.3 MP, 1", USB3, Mono | 2592 × 2048 | 71.8 fps @ 2592 × 2048 | 1" | $519.00quote | View |
| MV-CA020-10UM | 2 MP, 1/1.7", USB3, Mono | 1624 × 1240 | 89.1 fps @ 1624 × 1240 | 1/1.7" | $579.00quote | View |
| MV-CA020-10UC | 2 MP, 1/1.7", USB3, Color | 1624 × 1240 | 89.1 fps @ 1624 × 1240 | 1/1.7" | $579.00quote | View |
| MV-CA023-10UM | 2.3 MP, 1/1.2", USB3, Mono | 1920 × 1200 | 41 fps @1920 × 1200 | 1/1.2" | $619.00quote | View |
| MV-CA023-10UC | 2.3 MP, 1/1.2", USB3, Color | 1920 × 1200 | 40 fps @1920 × 1200 | 1/1.2" | $619.00quote | View |
| MV-CA050-12UM | 5 MP, 2/3", USB3, Mono | 2448 × 2048 | 47 fps @2448 × 2048 | 2/3" | $909.00quote | View |
| MV-CA050-12UC | 5 MP, 2/3", USB3, Color | 2448 × 2048 | 60 fps @2448 × 2048 | 2/3" | $909.00quote | View |
