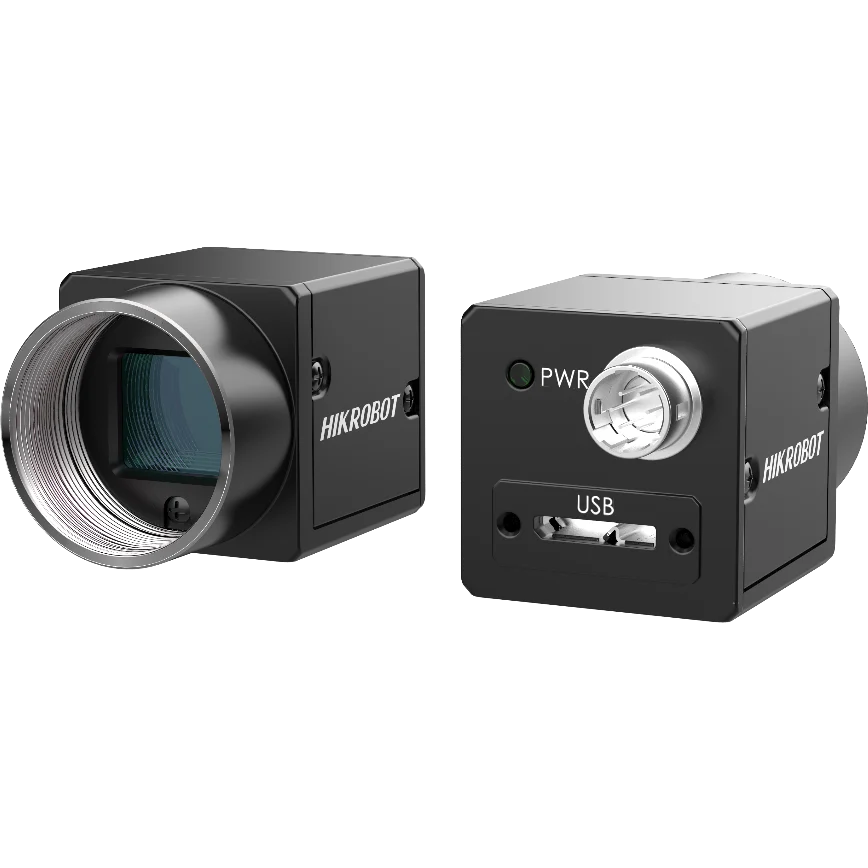

Hikrobot MV-CA013-A0UM 1.3MP Area Scan Camera, USB3, Mono

Area scan cameras

Hikrobot MV-CA013-A0UC 1.3MP Area Scan Camera, USB3, Color

Model MV-CA013-A0UCHikrobot

Resolution1280 × 1024
SensorCMOS, global shutter
InterfaceUSB3.0, compatible with USB2.0
Speed201 fps @ 1280 × 1024
Lens mountC-mount
Mono / colourColor

$469.00

Quote

Quoted price: add to quote for lead time and volume pricing.

End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.

Ships in 2-3 weeks

0.21 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CA013-A0UC 1.3MP Area Scan Camera, USB3, Color. Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc. Supports customized ROI, horizontal and vertical reverse image output.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CA013-A0UC
Brand	Hikrobot
Compatibility	USB3 Vision, GenlCam

Sensor and imaging

Sensor type	CMOS, global shutter
Pixel size	4.8 μm × 4.8 μm
Sensor size	1/2"
Resolution	1280 × 1024
Max. frame rate	201 fps @ 1280 × 1024
Dynamic range	53 dB
SNR	40 dB
Gain	0 dB to 16 dB
Exposure time	9 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Pixel format	Mono 8/10/12; Bayer GB 8/10/10Packed /12/1210Packed, YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output
Mono/color	Color

Interfaces and I/O

Data interface	USB3.0, compatible with USB2.0
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
Client software	MVS or third-party software meeting with USB3 Vision Protocol

Environment and compliance

Ingress protection	IP30 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows 7/10, 32/64-bit Linux

Electrical

Power supply	9 VDC to 24 VDC, supports USB3.0 power supply and PoE
Power consumption	Typ. 2.7 W@5 VDC; (USB3.0 provides power supply)

Mechanical

Lens mount	C-mount
Dimension	29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
Weight	Approx. 80 g (0.18 lb.)
Shipping weight (estimated)	0.21 kg

Downloads

Features

Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc.
Supports customized ROI, horizontal and vertical reverse image output.
Adopts compact design for flexible installation.
Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
