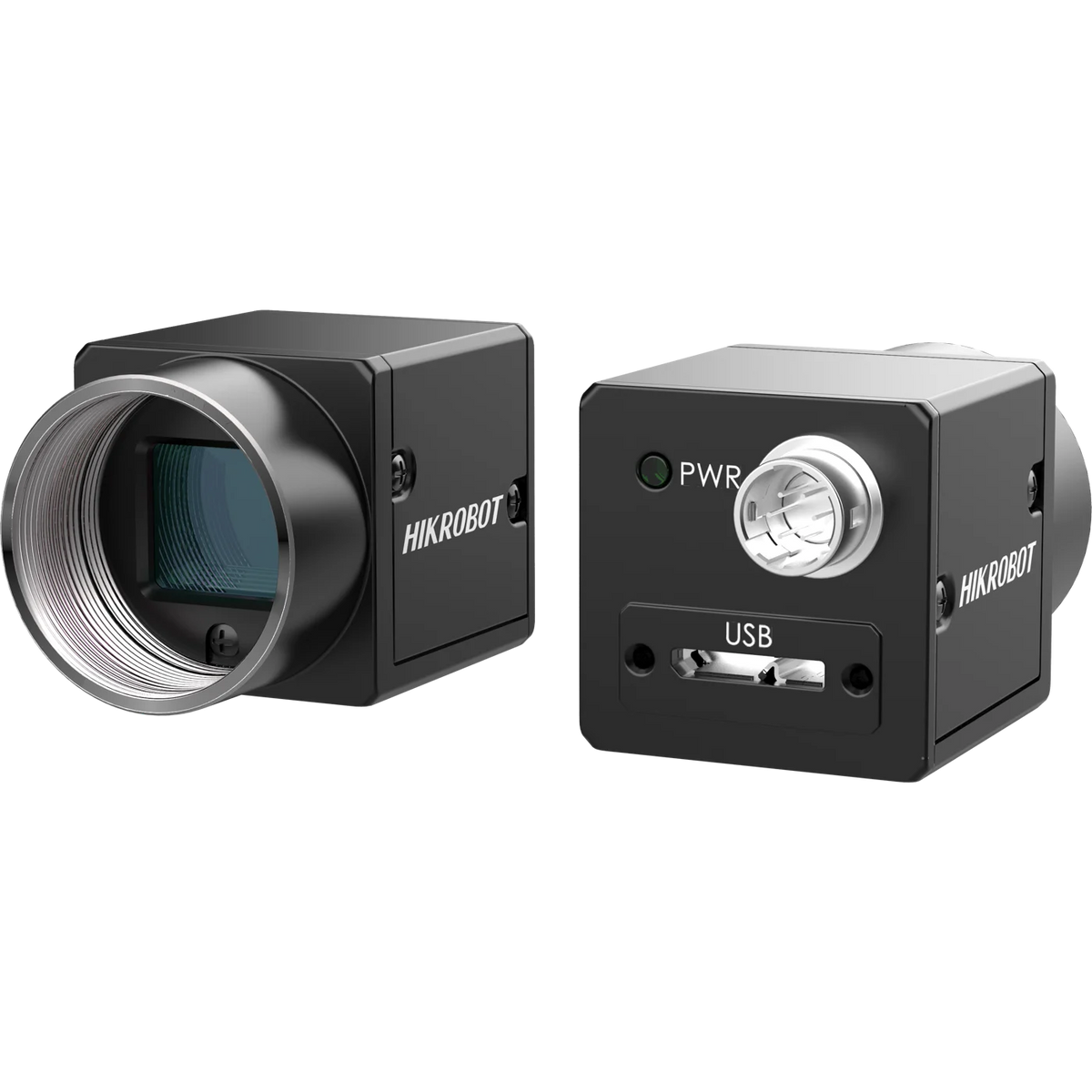

Hikrobot MV-CA050-12UM 5MP Area Scan Camera, USB3, IMX264, Mono

Model MV-CA050-12UMHikrobot

Resolution2448 × 2048
SensorCMOS, global shutter
InterfaceUSB3.0, compatible with USB2.0
Speed47 fps @2448 × 2048
Lens mountC-mount
Mono / colourMono

$909.00

Quote

Quoted price: add to quote for lead time and volume pricing.

End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.

Ships in 2-3 weeks

0.21 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CA050-12UM 5MP Area Scan Camera, USB3, IMX264, Mono. Supports auto and manual adjustment for gain, exposure control, white balance, etc. Supports hardware trigger, software trigger, free run, etc.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CA050-12UM
Brand	Hikrobot
Compatibility	USB3 Vision, GenlCam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	Sony® IMX264
Pixel size	3.45 μm × 3.45 μm
Sensor size	2/3"
Resolution	2448 × 2048
Max. frame rate	47 fps @2448 × 2048
Dynamic range	72 dB
SNR	40.2 dB
Gain	0 dB to 24 dB
Exposure time	UltraShort exposure mode: 1 μs to 14 μs; Standard exposure mode: 15 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Pixel format	Mono 8/10/10p/12/12p
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2
Reverse image	Supports horizontal and vertical reverse image output
Image buffer	128 MB
Mono/color	Mono

Interfaces and I/O

Data interface	USB3.0, compatible with USB2.0
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
Client software	MVS or third-party software meeting with USB3 Vision Protocol

Environment and compliance

Ingress protection	IP30 (under correct lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 80% RH (no condensation)
Certification	CE, RoHS, KC
Certifications	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows 7/10, 32/64-bit Linux

Electrical

Power supply	9 VDC to 24 VDC, supports USB3.0 power supply
Power consumption	Typ. 2.9 W @5 VDC (USB3.0 provides power supply)

Mechanical

Lens mount	C-mount
Dimension	29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
Weight	Approx. 80 g (0.18 lb.)
Shipping weight (estimated)	0.21 kg

Downloads

Features

Supports auto and manual adjustment for gain, exposure control, white balance, etc.
Supports hardware trigger, software trigger, free run, etc.
Adopts M2 screw holes for securing cable that connects USB3.0 interface.
Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Other models in the CA Series USB3.0 Area Scan Cameras series

See all 15 models

Model	Size / key data	Price	Availability	Link
MV-CA004-10UM	0.4 MP, 1/2.9", USB3, Mono	$289.00 Quote	Ships in 2-3 weeks	View
MV-CA004-10UC	0.4 MP, 1/2.9", USB3, Color	$289.00 Quote	Ships in 2-3 weeks	View
MV-CA003-21UC	0.3 MP, 1/4", USB3, Color	$329.00 Quote	Ships in 2-3 weeks	View
MV-CA013-21UM	1.3 MP, 1/2", USB3, Mono	$469.00 Quote	Ships in 2-3 weeks	View
MV-CA013-A0UM	1.3 MP, 1/2", USB3, Mono	$469.00 Quote	Ships in 2-3 weeks	View
MV-CA013-A0UC	1.3 MP, 1/2", USB3, Color	$469.00 Quote	Ships in 2-3 weeks	View
MV-CA016-10UM	1.6 MP, 1/2.9", USB3, Mono	$509.00 Quote	Ships in 2-3 weeks	View
MV-CA016-10UC	1.6 MP, 1/2.9", USB3, Color	$509.00 Quote	Ships in 2-3 weeks	View
MV-CA050-20UM	5.3 MP, 1", USB3, Mono	$519.00 Quote	Ships in 2-3 weeks	View
MV-CA020-10UM	2 MP, 1/1.7", USB3, Mono	$579.00 Quote	Ships in 2-3 weeks	View
MV-CA020-10UC	2 MP, 1/1.7", USB3, Color	$579.00 Quote	Ships in 2-3 weeks	View
MV-CA023-10UM	2.3 MP, 1/1.2", USB3, Mono	$619.00 Quote	Ships in 2-3 weeks	View
MV-CA023-10UC	2.3 MP, 1/1.2", USB3, Color	$619.00 Quote	Ships in 2-3 weeks	View
MV-CA050-12UC	5 MP, 2/3", USB3, Color	$909.00 Quote	Ships in 2-3 weeks	View
