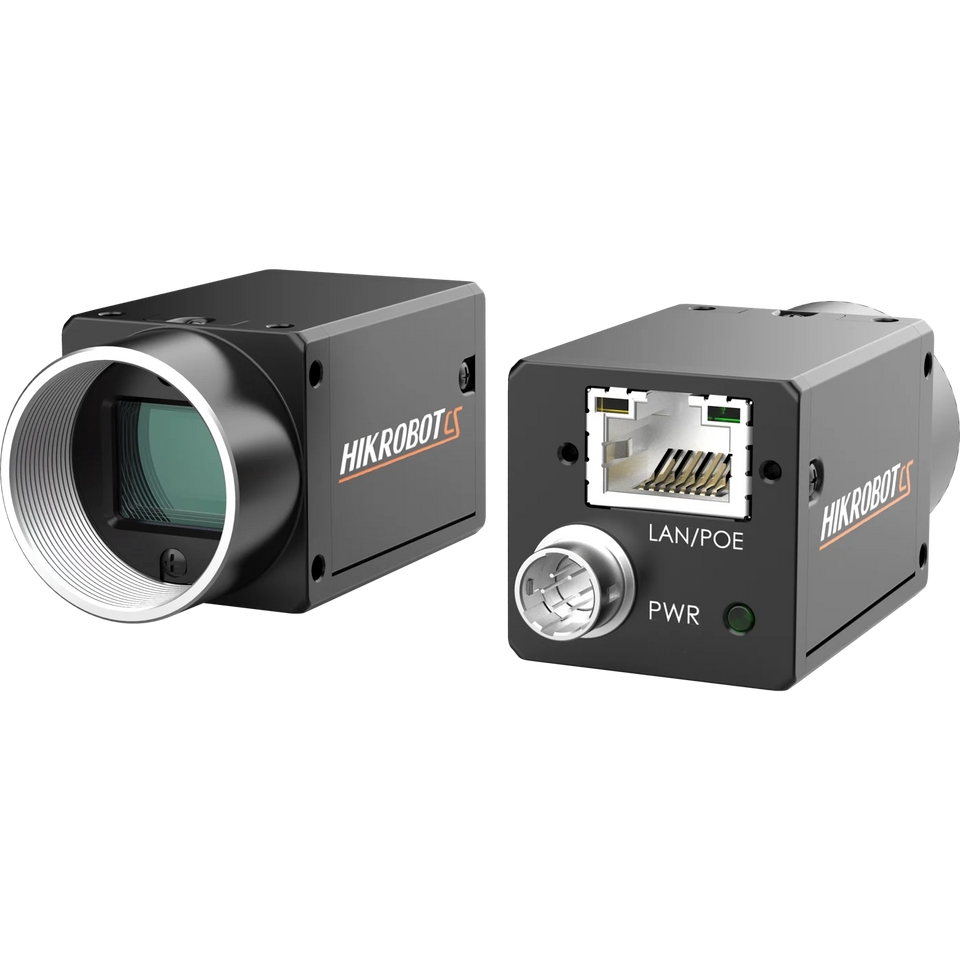

CS Series GigE Area Scan Cameras

Area scan cameras

CS Series GigE Area Scan Cameras

  • 84 models
  • from $289.00
  • Series HIK-CS-GIGE

The CS Series GigE Area Scan Cameras is a range of 84 area scan cameras from Hikrobot, from $289.00. It comes in 35 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 84 models Series datasheet (PDF)

The series at a glance

Sizes / versions
0.4 MP, 1/2.9", GigE, Color, 0.4 MP, 1/2.9", GigE, Mono, 1.3 MP, 1/2.7", GigE, Mono, 1.3 MP, 2/3", GigE, 1.6 MP, 1/2.9", GigE, Color, 1.6 MP, 1/2.9", GigE, Mono, 2 MP, 1/1.7", GigE, Color, 2 MP, 1/1.7", GigE, Mono, 2 MP, 1/2.53", GigE, Color, 2 MP, 1/2.53", GigE, Mono, 2 MP, GigE, Color, 2 MP, GigE, Mono, 2.3 MP, 1/1.2", GigE, Color, 2.3 MP, 1/1.2", GigE, Mono, 3.1 MP, 1/1.8", GigE, Color, 3.1 MP, 1/1.8", GigE, Mono and 19 more
Interface
GigE
Resolution
Up to 3 MP, 5 MP, 6-10 MP, 12 MP, 16-25 MP
Shutter
Global, Rolling
Colour
Color, Mono
Lens mount
C-mount
Sensor format
1/2.5" and smaller, 1/1.8" - 1/1.56", 2/3", 1/1.2", 1"

Features

  • Adopts brand new design to reduce power consumption.
  • Supports multiple ISP functions like CCM to provide high-quality images.
  • Compact design with mounting holes on panels for flexible mounting from 4 sides.
  • Adopts GigE interface and max. transmission distance of 100 meters without relay.
  • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
  • Supports auto or manual adjustment of gain, exposure time, LUT, and Gamma correction, etc.
  • Supports CCM function to provide high-quality images.
  • Supports noise reduction and color correction matrix function.

All 84 models in the CS Series GigE Area Scan Cameras

Link
MV-CS060-10GM6.3 MP, 1/1.8", GigE, Mono3072 × 20481/1.8"CMOS, rolling shutter$289.00View
MV-CS060-10GM V56.3 MP, 1/1.8", GigE, Mono3072 × 20481/1.8"CMOS, rolling shutter$289.00View
MV-CS060-10GC6.3 MP, 1/1.8", GigE, Color3072 × 20481/1.8"CMOS, rolling shutter$289.00View
MV-CS060-10GC V56.3 MP, 1/1.8", GigE, Color3072 × 20481/1.8"CMOS, rolling shutter$289.00View
MV-CS004-10GM0.4 MP, 1/2.9", GigE, Mono720 × 5401/2.9"CMOS, global shutter$329.00View
MV-CS004-10GC0.4 MP, 1/2.9", GigE, Color720 × 5401/2.9"CMOS, global shutter$329.00View
MV-CS013-80GM1.3 MP, 1/2.7", GigE, Mono1280 × 10241/2.7"CMOS, global shutter$419.00View
MV-CS013-80GC1.3 MP, 1/2.7", GigE, Mono1280 × 10241/2.7"CMOS, global shutter$419.00View
MV-CS016-10GM1.6 MP, 1/2.9", GigE, Mono1440 × 10801/2.9"CMOS, global shutter$429.00View
MV-CS016-10GC1.6 MP, 1/2.9", GigE, Color1440 × 10801/2.9"CMOS, global shutter$429.00View
MV-CS016-11GM1.6 MP, 1/2.9", GigE, Mono1440 × 10801/2.9"CMOS, global shutter$459.00View
MV-CS032-60GM3.1 MP, 1/1.8", GigE, Mono2048 × 15361/1.8"CMOS, global shutter$479.00View
MV-CS032-60GM V53.1 MP, 1/1.8", GigE, Mono2048 × 15361/1.8"CMOS, global shutter$479.00View
MV-CS032-60GC3.1 MP, 1/1.8", GigE, Color2048 × 15361/1.8"CMOS, global shutter$479.00View
MV-CS032-60GC V53.1 MP, 1/1.8", GigE, Color2048 × 15361/1.8"CMOS, global shutter$479.00View
MV-CS050-60GM5 MP, 2/3", GigE, Mono2448 × 20482/3"CMOS, global shutter$479.00View
MV-CS050-60GM V55 MP, 2/3", GigE, Mono2448 × 20482/3"CMOS, global shutter$479.00View
MV-CS050-60GC5 MP, 2/3", GigE, Color2448 × 20482/3"CMOS, global shutter$479.00View
MV-CS050-60GC V55 MP, 2/3", GigE, Color2448 × 20482/3"CMOS, global shutter$479.00View
MV-CS004-11GM0.4 MP, 1/2.9", GigE, Mono720 × 5401/2.9"CMOS, global shutter$509.00View
MV-CS004-11GC0.4 MP, 1/2.9", GigE, Color720 × 5401/2.9"CMOS, global shutter$509.00View
MV-CS020-60GM2 MP, 1/2.53", GigE, Mono1624 × 12401/2.53"CMOS, global shutter$519.00View
MV-CS020-60GC2 MP, 1/2.53", GigE, Mono1624 × 12401/2.53"CMOS, global shutter$519.00View
MV-CS020-60GM V52 MP, 1/2.53", GigE, Mono1624 × 12401/2.53"CMOS, global shutter$519.00View
MV-CS020-60GC V52 MP, 1/2.53", GigE, Color1624 × 12401/2.53"CMOS, global shutter$519.00View
SC-HCS020-60GM2 MP, GigE, Mono1624 × 12401/1.7”CMOS, global shutter$519.00View
HIK-C020-CG2 MP, GigE, Color1624 × 12401/2.53”CMOS, global shutter$519.00View
XXV-020M-XIG2 MP, GigE, Mono1624 × 12401/1.7”CMOS, global shutter$519.00View
XXV-020C-XIG2 MP, GigE, Color1624 × 12401/1.7”CMOS, global shutter$519.00View
MV-CS020-10GM2 MP, 1/1.7", GigE, Mono1624 × 12401/1.7"CMOS, global shutter$589.00View
MV-CS020-10GC2 MP, 1/1.7", GigE, Color1624 × 12401/1.7"CMOS, global shutter$589.00View
MV-CS050-20GM5.3 MP, 2/3", GigE, Mono2592 × 20482/3"CMOS, global shutter$589.00View
MV-CS050-20GC5.3 MP, 2/3", GigE, Color2592 × 20482/3"CMOS, global shutter$589.00View
MV-CS023-10GM2.3 MP, 1/1.2", GigE, Mono1920 × 12001/1.2"CMOS, global shutter$619.00View
MV-CS023-10GC2.3 MP, 1/1.2", GigE, Color1920 × 12001/1.2"CMOS, global shutter$619.00View
MV-CS032-10GM3.1 MP, 1/1.8", GigE, Mono2048 × 15361/1.8"CMOS, global shutter$669.00quoteView
MV-CS032-10GC3.1 MP, 1/1.8", GigE, Color2048 × 15361/1.8"CMOS, global shutter$669.00quoteView
MV-CS050-10GM5 MP, 2/3", GigE, Mono2448 × 20482/3"CMOS, global shutter$739.00View
MV-CS050-10GC5 MP, 2/3", GigE, Color2448 × 20482/3"CMOS, global shutter$739.00View
MV-CS050-10GM V55 MP, 2/3", GigE, Mono2448 × 20482/3"CMOS, global shutter$739.00View
MV-CS050-10GC V55 MP, 2/3", GigE, Color2448 × 20482/3"CMOS, global shutter$739.00View
MV-CS200-10GM20 MP, 1", GigE, Mono5472 × 36481"CMOS, rolling shutter$739.00View
MV-CS200-10GC20 MP, 1", GigE, Color5472 × 36481"CMOS, rolling shutter$739.00View
MV-CS200-10GM V520 MP, 1", GigE, Mono5472 × 36481"CMOS, rolling shutter$739.00View
MV-CS200-10GC V520 MP, 1", GigE, Mono5472 × 36481"CMOS, rolling shutter$739.00View
MV-CS013-60GN1.3 MP, 2/3", GigE1224 × 10242/3"CMOS, global shutter$759.00View
MV-CS050-60GN5 MP, 2/3", GigE2448 × 20482/3"CMOS, global shutter$819.00View
MV-CS050-80GM5 MP, 2/3", GigE, Mono2448 × 20482/3"CMOS, global shutter$819.00View
MV-CS050-80GC5 MP, 2/3", GigE, Color2448 × 20482/3"CMOS, global shutter$819.00View
MV-CS050-90GM5 MP, 2/3", GigE, Mono2448 × 20482/3"CMOS, global shutter$819.00View
MV-CS050-90GC5 MP, 2/3", GigE, Color2448 × 20482/3"CMOS, global shutter$819.00View
MV-CS050-10GM(NPOE)5 MP, GigE, Mono2448 × 20482/3”CMOS, global shutter$819.00View
HK-YZ05Z-9WM5 MP, GigE, Mono2448 × 20482/3”CMOS, global shutter$819.00View
MV-C7505-60GM5 MP, GigE, Mono2448 × 20482/3”CMOS, global shutter$819.00View
MV-C7505-60GC5 MP, GigE, Color2448 × 20482/3”CMOS, global shutter$819.00View
MV-C7505-60GN5 MP, GigE2448 × 20482/3”CMOS, global shutter$819.00View
HIK-C050-CG5 MP, GigE, Color2448 × 20482/3”CMOS, global shutter$819.00View
HK-SX-05KMG-H5 MP, GigE, Mono2448 × 20482/3”CMOS, global shutter$819.00View
HK-SX-05KMC-H5 MP, GigE, Color2448 × 20482/3”CMOS, global shutter$819.00View
XXV-050C-XIG5 MP, GigE, Color2448 × 20482/3”CMOS, global shutter$819.00View
XXV-050M-XIG5 MP, GigE, Mono2448 × 20482/3”CMOS, global shutter$819.00View
MV-HS500-GM5 MP, GigE, Mono2448 × 20482/3”CMOS, global shutter$819.00View
SY-500M5 MP, GigE, Mono2448 × 20482/3”CMOS, global shutter$819.00View
MV-Semi050H5 MP, GigE, Mono2448 × 20482/3”CMOS, global shutter$819.00View
MV-CS050-10GM-PRO5 MP, 2/3", GigE, Mono2448 × 20482/3"CMOS, global shutter$859.00View
MV-CS050-10GC-PRO5 MP, 2/3", GigE, Color2448 × 20482/3"CMOS, global shutter$859.00View
MV-CS060-10GM-PRO6.3 MP, 1/1.8", GigE, Mono3072 × 20481/1.8"CMOS, rolling shutter$909.00View
MV-CS060-10GC-PRO6.3 MP, 1/1.8", GigE, Color3072 × 20481/1.8"CMOS, rolling shutter$909.00View
MV-XD6010GM V56.3 MP, GigE, Mono3072 × 20481/1.8”CMOS, rolling shutter$909.00View
MV-XD6010GC V56.3 MP, GigE, Mono3072 × 20481/1.8”CMOS, rolling shutter$909.00View
MV-CS120-10GM V512.2 MP, GigE, Mono4024 × 30361/1.7”CMOS, rolling shutter$1,259.00View
MV-CS120-10GC V512.2 MP, GigE, Color4024 × 30361/1.7”CMOS, rolling shutter$1,259.00View
MV-CS120-60GM V512.4 MP, 1/1.56", GigE, Mono4096 × 30241/1.56"CMOS, rolling shutter$1,269.00View
MV-CS120-60GC V512.4 MP, 1/1.56", GigE, Color4096 × 30241/1.56"CMOS, rolling shutter$1,269.00View
MV-CS200-10GM-ADV20 MP, 1", GigE, Mono5472 × 36481"CMOS, rolling shutter$1,409.00View
FV-4024-09RM20 MP, GigE, Mono5472 × 36481”CMOS, rolling shutter$1,409.00View
FV-4024-09RC20 MP, GigE, Color5472 × 36481”CMOS, rolling shutter$1,409.00View
FV-5472-05RC20 MP, GigE, Color5472 × 36481”CMOS, rolling shutter$1,409.00View
FV-5472-05RM20 MP, GigE, Mono5472 × 36481”CMOS, rolling shutter$1,409.00View
HK-YZ002-9WM20 MP, GigE, Mono5472 × 36481”CMOS, rolling shutter$1,409.00View
HK-SX-20KMG-H20 MP, GigE, Mono5472 × 36481”CMOS, rolling shutter$1,409.00View
HK-SX-20KMC-H20 MP, GigE, Color5472 × 36481”CMOS, rolling shutter$1,409.00View
MV-SY2000-00Q-BCN20 MP, GigE, Color5472 × 36481”CMOS, rolling shutter$1,409.00View
SY-2000M20 MP, GigE, Mono5472 × 36481”CMOS, rolling shutter$1,409.00quoteView
