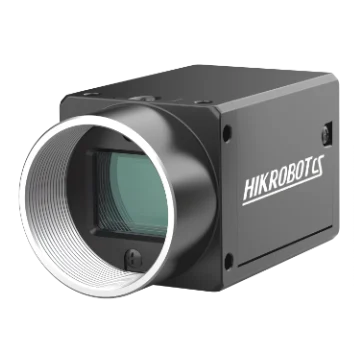

Hikrobot MV-CS060-10GC V5 6MP Area Scan Camera, GigE, V5, Color

Model MV-CS060-10GC V5Hikrobot

Resolution3072 × 2048
SensorCMOS, rolling shutter
Speed19.5 fps @ 3072 × 2048 Bayer RG 8
Lens mountC-mount
Mono / colourColor
Pixel size2.4 μm × 2.4 μm

$289.00

Ships in 2-3 weeks

0.24 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CS060-10GC V5 6MP Area Scan Camera, GigE, V5, Color. Adopts brand new design to reduce power consumption. Supports auto or manual adjustment of gain, exposure time, LUT, and Gamma correction, etc.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CS060-10GC V5
Brand	Hikrobot
Compatibility	GigE Vision V2.0, GenICam

Sensor and imaging

Sensor type	CMOS, rolling shutter
Pixel size	2.4 μm × 2.4 μm
Sensor size	1/1.8"
Resolution	3072 × 2048
Exposure time	25 μs to 2.5 sec
Gain	0 dB to 24 dB
Mono/color	Color
Max. frame rate	19.5 fps @ 3072 × 2048 Bayer RG 8
Pixel format	Mono 8; Bayer RG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8
Sensor model	Sony® IMX178
Dynamic range	71.3 dB
SNR	41.3 dB
Exposure mode	Off/Once/Continuous exposure mode, and supports Global Reset
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client software	MVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supply	9 VDC to 24 VDC, supports PoE
Power consumption	Typ. 1.4 W @ 12 VDC

Mechanical

Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2")
Weight	Approx. 100 g (0.22 lb.)
Lens mount	C-mount
Shipping weight (estimated)	0.24 kg

Downloads

Features

Adopts brand new design to reduce power consumption.
Supports auto or manual adjustment of gain, exposure time, LUT, and Gamma correction, etc.
Supports CCM function to provide high-quality images.
Adopts GigE interface and max. transmission distance of 100 meters without relay.
Compact design with mounting holes on panels for flexible mounting from 4 sides.
Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
