Hikrobot MV-CS032-60GM V5 3.2MP Area Scan Camera, GigE, V5, Mono

Model MV-CS032-60GM V5Hikrobot

Resolution2048 × 1536
SensorCMOS, global shutter
Speed38.9 fps @ 2048 × 1536 Mono 8
Lens mountC-mount
Mono / colourMono
Pixel size3.45 μm × 3.45 μm

$479.00

Ships in 2-3 weeks

0.24 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CS032-60GM V5 3.2MP Area Scan Camera, GigE, V5, Mono. Adopts brand new design to reduce power consumption. Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc., and supports Sequencer function.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CS032-60GM V5
Brand	Hikrobot
Compatibility	GigE Vision V2.0, GenICam

Sensor and imaging

Sensor type	CMOS, global shutter
Pixel size	3.45 μm × 3.45 μm
Sensor size	1/1.8"
Resolution	2048 × 1536
Exposure time	Full well mode: 30 μs to 10 sec; High sensitivity mode: 5 μs to 10 sec
Gain	Full well mode: 0 dB to 12.8 dB; High sensitivity mode: 0 dB to 24 dB
Mono/color	Mono
Max. frame rate	38.9 fps @ 2048 × 1536 Mono 8
Pixel format	Mono 8/10/10Packed/12/12Packed
Sensor model	Stacked BSI
Dynamic range	73.9 dB
SNR	42.4 dB
Exposure mode	Off/Once/Continuous exposure mode
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client software	MVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supply	9 VDC to 24 VDC, supports PoE
Power consumption	Typ. 1.7 W @ 12 VDC

Mechanical

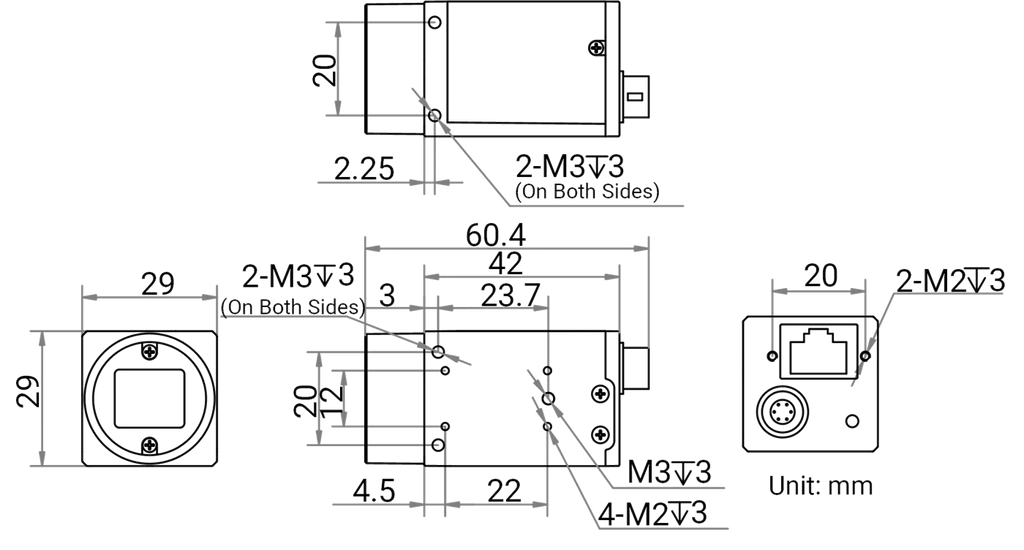

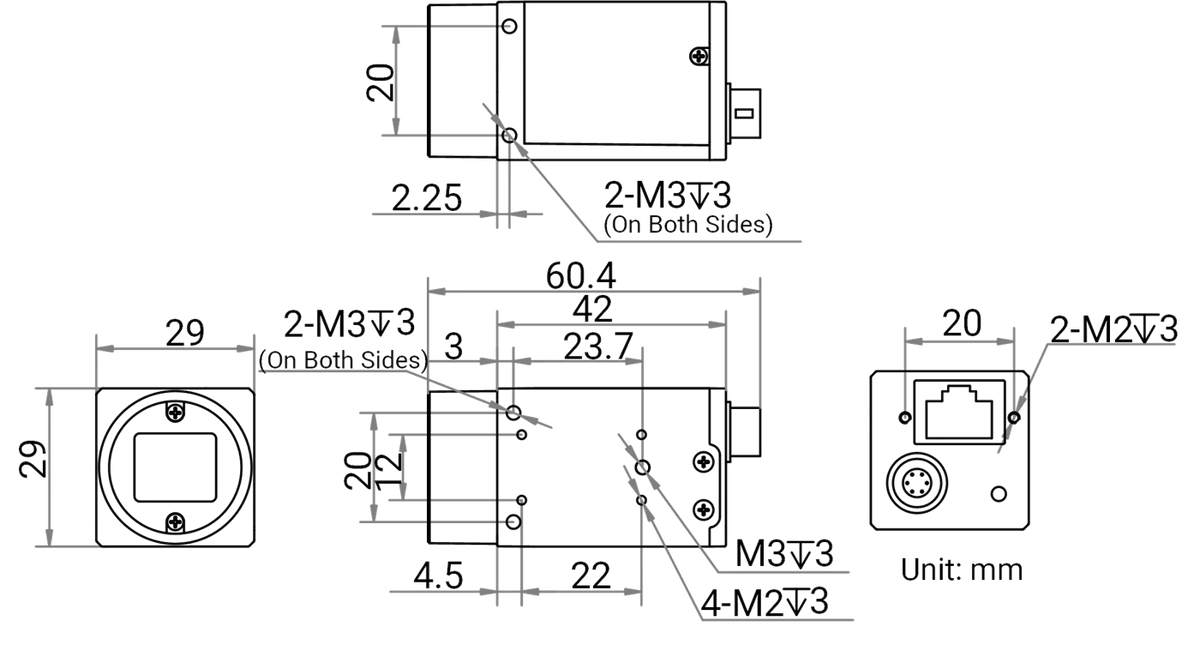

Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
Weight	Approx. 100 g (0.2 lb.)
Lens mount	C-mount
Shipping weight (estimated)	0.24 kg

Downloads

Features

Adopts brand new design to reduce power consumption.
Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc., and supports Sequencer function.
Supports ISP functions like CCM, Super Palette, and Super Bayer to provide high-quality images.
Compact design with mounting holes on panels for flexible mounting from 4 sides.
Adopts GigE interface and max. transmission distance of 100 meters without relay.
Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer
