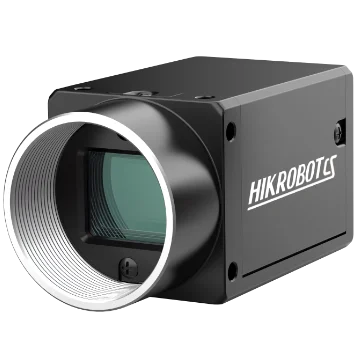

Hikrobot MV-CS016-11GM 1.6MP Area Scan Camera, GigE, IMX273, 2nd Generation

Model MV-CS016-11GMHikrobot

Resolution1440 × 1080
SensorCMOS, global shutter
Speed78.2 fps @ 1440 × 1080 Mono 8
Lens mountC-mount
Mono / colourMono
Pixel size3.45 μm × 3.45 μm

$459.00

Ships in 2-3 weeks

0.24 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CS016-11GM 1.6MP Area Scan Camera, GigE, IMX273, 2nd Generation. Adopts brand new design to reduce power consumption. Supports auto or manual adjustment for gain, exposure time, LUT, Gamma correction, white balance, etc.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CS016-11GM
Brand	Hikrobot
Compatibility	GigE Vision V2.0, GenlCam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	Sony® IMX273
Pixel size	3.45 μm × 3.45 μm
Sensor size	1/2.9"
Resolution	1440 × 1080
Max. frame rate	78.2 fps @ 1440 × 1080 Mono 8
Dynamic range	74 dB
SNR	41 dB
Gain	0 dB to 24 dB
Exposure time	UltraShort exposure mode: 1 μs to 14 μs; Standard exposure mode: 15 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Pixel format	Mono 8/10/10Packed/12/12Packed
Binning	Supports 1 × 1, 2 × 2
Decimation	Supports 1 × 1, 2 × 2
Reverse image	Supports horizontal and vertical reverse image output
Mono/color	Mono

Interfaces and I/O

Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client software	MVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux

Electrical

Power supply	9 VDC to 24 VDC, supports PoE
Power consumption	Typ. 2.3 W @ 12 VDC

Mechanical

Lens mount	C-mount
Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2")
Weight	Approx. 100 g (0.22 lb.)
Shipping weight (estimated)	0.24 kg

Downloads

Features

Adopts brand new design to reduce power consumption.
Supports auto or manual adjustment for gain, exposure time, LUT, Gamma correction, white balance, etc.
Adopts GigE interface and max. transmission distance of 100 meters without delay.
Compact design with mounting holes on panels for flexible mounting from 4 sides.
Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
