Hikrobot MV-CS020-60GM 2MP Area Scan Camera, GigE, 2nd Generation, Mono
Model MV-CS020-60GMHikrobot
- Resolution1624 × 1240
- SensorCMOS, global shutter
- Lens mountC-mount
- Mono / colourMono, Color
- Pixel size3.45 μm × 3.45 μm
$519.00
Ships in 2-3 weeks
0.24 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-CS020-60GM 2MP Area Scan Camera, GigE, 2nd Generation, Mono. Adopts brand new design to reduce power consumption. Supports auto or manual adjustment for gain, exposure control, white balance, LUT, Gamma correction, etc.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-CS020-60GM |
|---|---|
| Brand | Hikrobot |
| Compatibility | GigE Vision V2.0, GenICam |
Sensor and imaging
| Sensor type | CMOS, global shutter |
|---|---|
| Sensor model | Stacked BSI |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/2.53" |
| Resolution | 1624 × 1240 |
| Max. frame rate | 60.3 fps @ 1624 × 1240 Mono 8, 60.3 fps @ 1624 × 1240 Bayer GB 8 |
| Dynamic range | 66.6 dB |
| SNR | 44.1 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 23 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono, Color |
| Pixel format | Mono 8/10/10Packed/12/12Packed, Mono 8/10/12; Bayer GB 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
Interfaces and I/O
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
|---|---|
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
Environment and compliance
| Ingress protection | IP40 (under proper lens installation and wiring) |
|---|---|
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, RoHS, KC |
Computing
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
|---|
Electrical
| Power supply | 9 VDC to 24 VDC, supports PoE |
|---|---|
| Power consumption | Typ. 1.8 W @ 12 VDC, Typ. 1.9 W @ 12 VDC |
Mechanical
| Lens mount | C-mount |
|---|---|

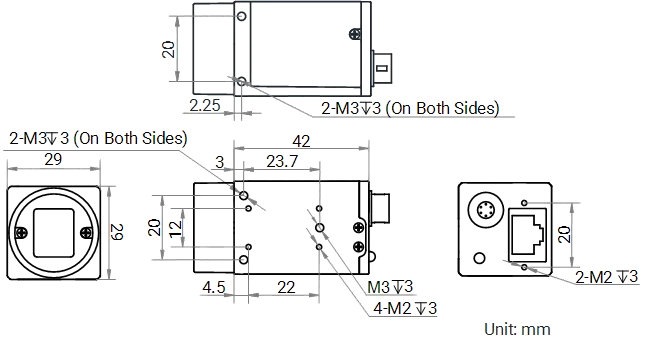

| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 100 g (0.2 lb.) |
| Shipping weight (estimated) | 0.24 kg |
Other models in the CS Series GigE Area Scan Cameras series
See all 84 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| MV-CS016-10GC | 1.6 MP, 1/2.9", GigE, Color | $429.00 | 3 in stock | View |
| MV-CS016-11GM | 1.6 MP, 1/2.9", GigE, Mono | $459.00 | 2 in stock | View |
| MV-CS032-60GM | 3.1 MP, 1/1.8", GigE, Mono | $479.00 | 4 in stock | View |
| MV-CS032-60GM V5 | 3.1 MP, 1/1.8", GigE, Mono | $479.00 | 5 in stock | View |

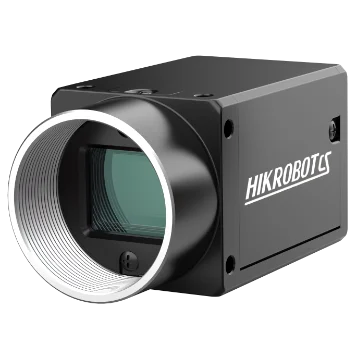

| MV-CS032-60GC | 3.1 MP, 1/1.8", GigE, Color | $479.00 | 4 in stock | View |
