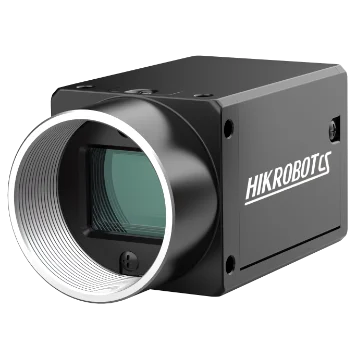

Hikrobot MV-CS120-60GM V5 12MP Area Scan Camera, GigE, V5, Mono
Model MV-CS120-60GM V5Hikrobot
- Resolution4096 × 3024
- SensorCMOS, rolling shutter
- Speed9.9 fps @ 4096 × 3024 Mono 8
- Lens mountC-mount
- Mono / colourMono
- Pixel size2.0 μm × 2.0 μm
$1,269.00
Ships in 2-3 weeks
0.24 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-CS120-60GM V5 12MP Area Scan Camera, GigE, V5, Mono. Provides optimized hardware design, stable performance, and low power consumption. Supports auto or manual adjustment of gain, exposure time, etc.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-CS120-60GM V5 |
|---|---|
| Brand | Hikrobot |
| Compatibility | GigE Vision V2.0, GenICam |
Sensor and imaging
| Sensor type | CMOS, rolling shutter |
|---|---|
| Sensor model | Stacked BSI |
| Pixel size | 2.0 μm × 2.0 μm |
| Sensor size | 1/1.56" |
| Resolution | 4096 × 3024 |
| Max. frame rate | 9.9 fps @ 4096 × 3024 Mono 8 |
| Dynamic range | 68.5 dB |
| SNR | 38.9 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 53 μs to 1.9 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
Interfaces and I/O
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
|---|---|
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
Environment and compliance
| Ingress protection | IP40 (under proper lens installation and wiring) |
|---|---|
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, RoHS, KC |
Computing
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
|---|
Electrical
| Power supply | 9 VDC to 24 VDC, supports PoE |
|---|---|
| Power consumption | Typ. 1.4 W @ 12 VDC |
Mechanical
| Lens mount | C-mount |
|---|---|
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 99.2 g (0.2 lb.) |
| Shipping weight (estimated) | 0.24 kg |
