Hikrobot MV-CS120-10GM V5 12MP Area Scan Camera, GigE, Mono
  • Hikrobot MV-CS120-10GM V5 12MP Area Scan Camera, GigE, Mono
  • MV-CS120-10GM V5 dimensions (mm)

Area scan cameras

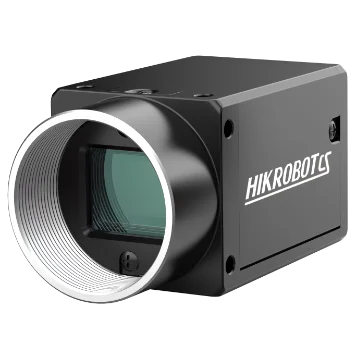

Hikrobot MV-CS120-10GM V5 12MP Area Scan Camera, GigE, Mono

Model MV-CS120-10GM V5Hikrobot

  • Resolution4024 × 3036
  • SensorCMOS, rolling shutter
  • Speed10 fps @ 4024 × 3036 Mono 8
  • Lens mountC-mount
  • Mono / colourMono
  • Pixel size1.85 μm × 1.85 μm
$1,259.00

Ships in 2-3 weeks

0.24 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Area scan cameras

MV-CS120-10GM V5: resolution 4024 x 3036; sensor type CMOS, rolling shutter; sensor size 1/1.7”; max. frame rate 10 fps @ 4024 x 3036 Mono 8.

Hikrobot MV-CS120-10GM V5 12MP Area Scan Camera, GigE, V5, Mono. Provides optimized hardware design, stable performance, and low power consumption. Supports auto or manual adjustment of gain, exposure time, etc.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CS120-10GM V5
BrandHikrobot
CompatibilityGigE Vision V2.0, GenICam

Sensor and imaging

Sensor typeCMOS, rolling shutter
Sensor modelSony® IMX226
Pixel size1.85 μm × 1.85 μm
Sensor size1/1.7”
Resolution4024 × 3036
Max. frame rate10 fps @ 4024 × 3036 Mono 8
Dynamic range69.4 dB
SNR42.3 dB
Gain0 dB to 20 dB
Exposure time33 μs to 2 sec
Exposure modeOff/Once/Continuous exposure mode, and supports Rolling and Global Reset mode
Mono/colorMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2)
Client softwareMVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 1.5 W @ 12 VDC

Mechanical

Lens mountC-mount
Dimension29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
WeightApprox. 100 g (0.2 lb.)
Shipping weight (estimated)0.24 kg

Engineering data

Field of view and resolution with the MV-CS120-10GM V5

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area7.44 × 5.62 mm1/1.7" optical format
Lens image circle needed≥ Ø 9.3 mmC-mount
Pixel pitch1.85 µm4024 x 3036 px
Image data at max frame rate122 MB/sCalculated: 10 fps × 4024 × 3036 px at 8 bit · GigE carries 125 MB/s nominal
With a 16 mm lens at 500 mm232 × 176 mm0.058 mm per pixel
Dynamic range69.4 dB
SNR42.3 dB
Power consumption1.5 Wtyp. at 12 V DC
ShutterRolling
Exposure range33 µs to 2 s
Weight100 gapprox.
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
8 mm279 × 211 mm0.069 mm per pixel465 × 351 mm0.116 mm per pixel930 × 702 mm0.231 mm per pixel
12 mm186 × 140 mm0.046 mm per pixel310 × 234 mm0.077 mm per pixel620 × 468 mm0.154 mm per pixel
16 mm140 × 105 mm0.035 mm per pixel232 × 176 mm0.058 mm per pixel465 × 351 mm0.116 mm per pixel
25 mm89.3 × 67.4 mm0.022 mm per pixel149 × 112 mm0.037 mm per pixel298 × 225 mm0.074 mm per pixel
35 mm63.8 × 48.2 mm0.016 mm per pixel106 × 80.3 mm0.026 mm per pixel213 × 161 mm0.053 mm per pixel
50 mm44.6 × 33.7 mm0.011 mm per pixel74.4 × 56.2 mm0.018 mm per pixel149 × 112 mm0.037 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.
