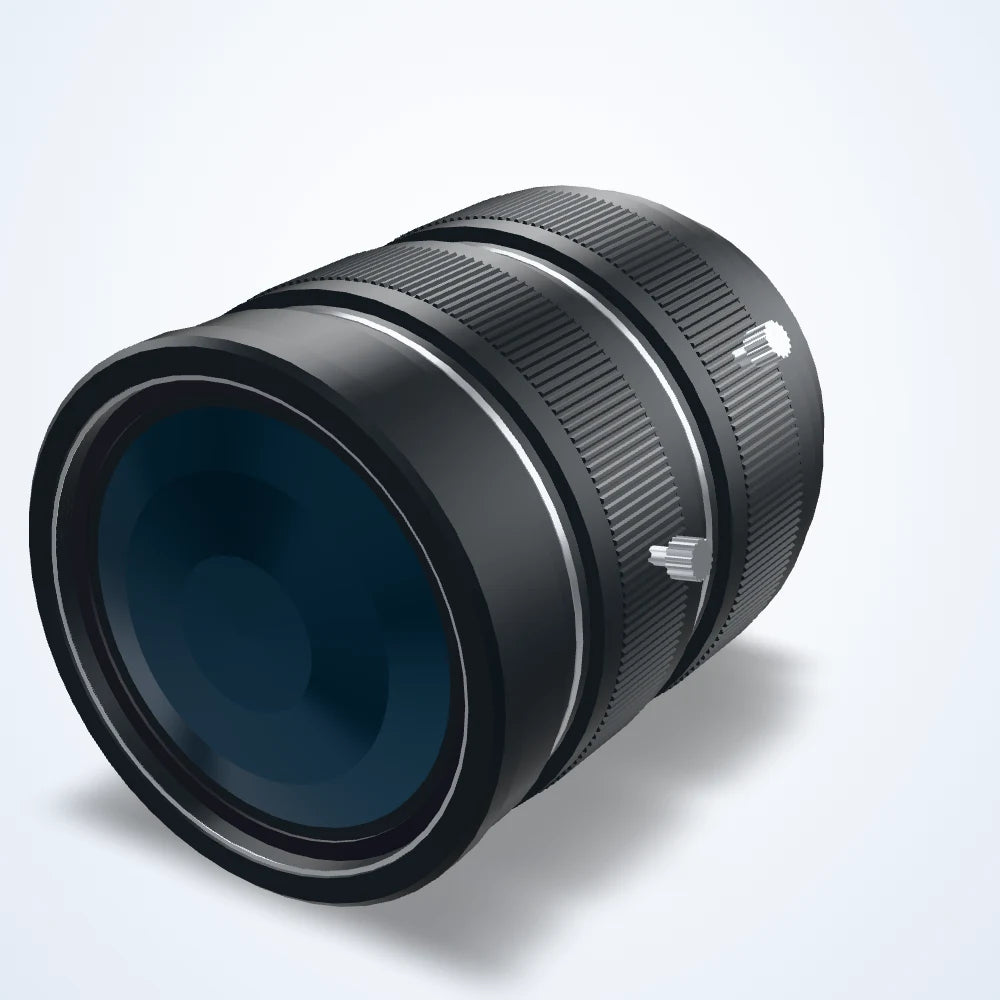

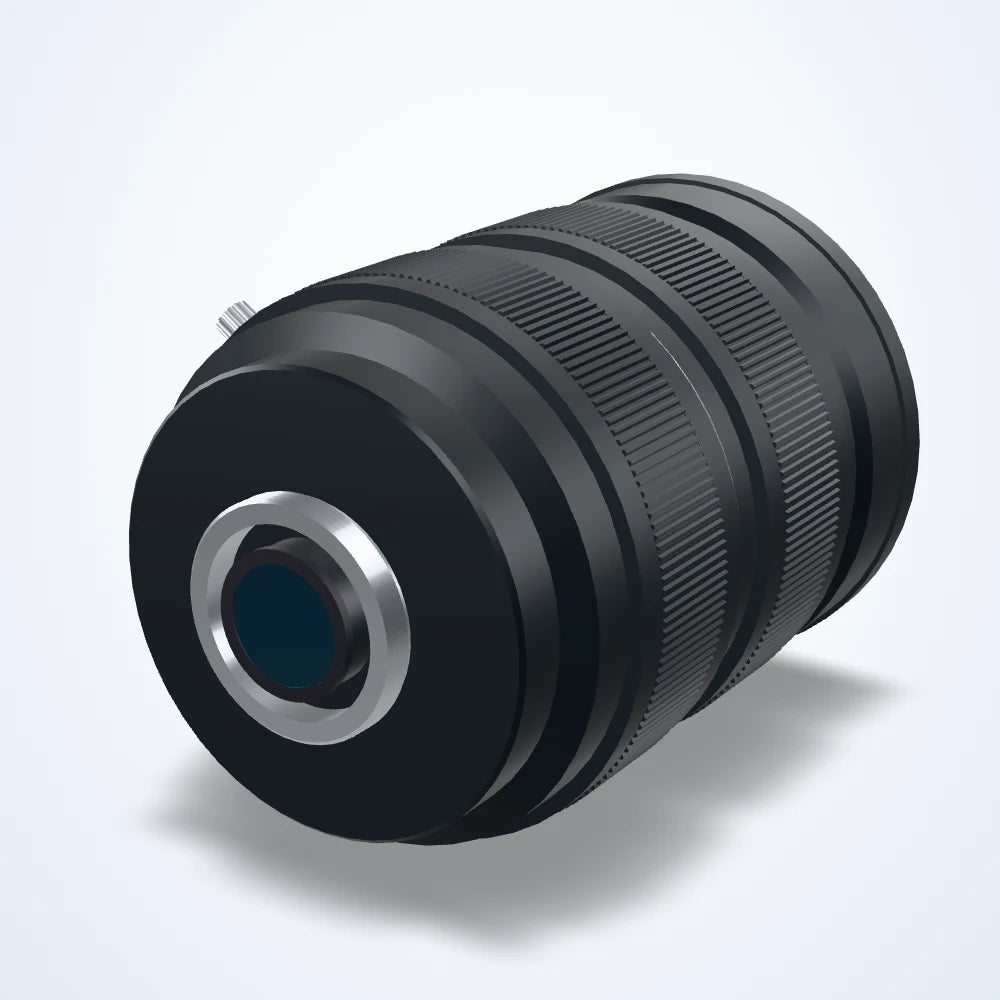

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
16 mm fixed focal length lens, 1/1.7", 12 MP (LS-FFL-1282)
Model LS-FFL-1282
- Focal length16 mm
- MountC-mount
- Sensor1/1.7"
- Working distance50 mm
- Aperture5.6
- Resolution12 MP
$50.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
16 mm fixed focal length lens for machine-vision cameras. Focal length 16 mm; working distance 50 mm; covers sensors up to 1/1.7"; resolves 12 MP.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1282 |
|---|---|
| Angle of view | 30.22×20.36×13.64 |
Optics
| Focal length | 16 mm |
|---|---|
| Working distance | 50 mm |
| Aperture | 5.6 |
| Distortion | -0.8 % |
Sensor and imaging
| Resolution | 12 MP |
|---|---|
| Sensor format | 9.3 mm |
| Suits pixel size | 1/1.7" |
Mechanical
| Mount | C/CS |
|---|---|
| Shipping weight | 1.00 kg |
Other models in the 1/1.7" fixed focal length lenses (LS-FFL-S108) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1281 | 12 mm, 1/1.7" | $50.00 | Ships in 3-4 weeks | View |
| LS-FFL-1283 | 25 mm, 1/1.7" | $50.00 | Ships in 3-4 weeks | View |
| LS-FFL-1280 | 8 mm, 1/1.7" | $55.00 | Ships in 3-4 weeks | View |
