Hikrobot SY-500M 5 MP 2/3" CMOS Gigabit Ethernet industrial area scan camera

Model SY-500MHikrobot

Resolution2448 × 2048
SensorCMOS, global shutter
Speed24.2 fps @2448 × 2048 Mono 8
Lens mountC-mount
Mono / colourMono
Pixel size3.4 μm × 3.4 μm

$819.00

Ships in 2-3 weeks

0.24 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot SY-500M 5 MP 2/3" CMOS Gigabit Ethernet industrial area scan camera. New hardware platform with optimized logic resources for greatly reduced power consumption Auto or manual adjustment of gain, exposure time, white balance, contrast, Gamma correction and more

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	SY-500M
Brand	Hikrobot
Compatibility	GigE Vision V2.0, GenICam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	GMAX3405
Pixel size	3.4 μm × 3.4 μm
Sensor size	2/3”
Resolution	2448 × 2048
Max. frame rate	24.2 fps @2448 × 2048 Mono 8
Dynamic range	66 dB
SNR	39.4 dB
Gain	0 dB ~ 24 dB
Exposure time	Ultra-short exposure mode: 2 μs ~ 4 μs; Standard exposure mode: 5 μs ~ 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Mono
Pixel format	Mono 8/10/10Packed/12/12Packed
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client software	MVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supply	9 VDC to 24 VDC, supports PoE
Power consumption	2.2 W @12 VDC

Mechanical

Lens mount	C-Mount

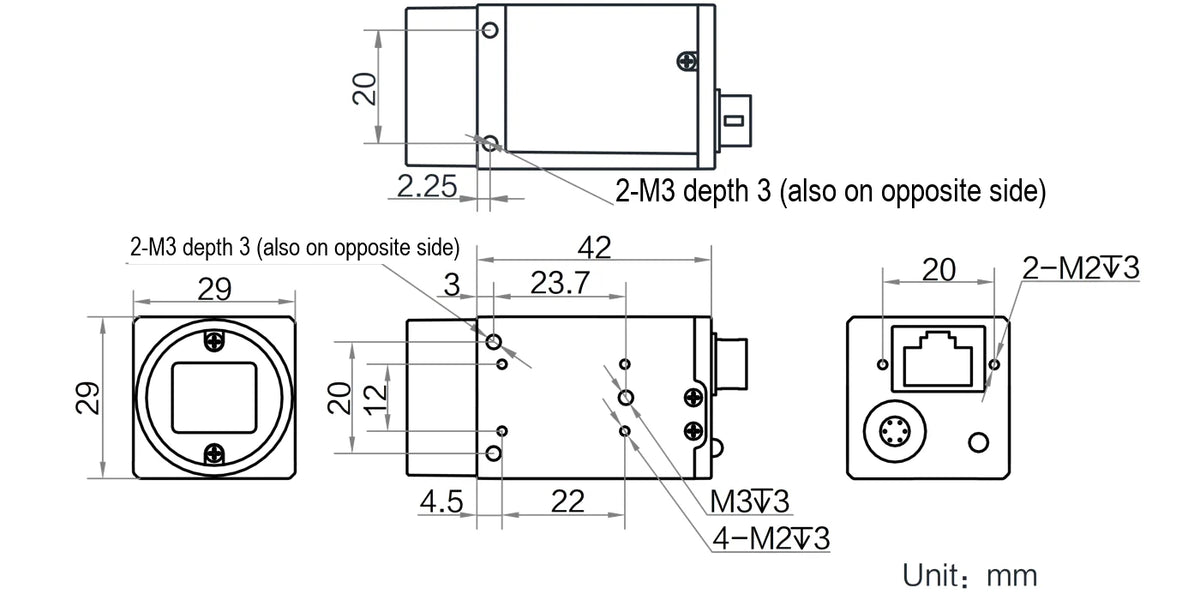

Dimension	29 mm × 29 mm × 42 mm
Weight	Approx. 100 g (0.2 lb.)
Shipping weight (estimated)	0.24 kg

Downloads

Datasheet (PDF, Chinese)SY-500M · 1.0 MB

Features

New hardware platform with optimized logic resources for greatly reduced power consumption
Auto or manual adjustment of gain, exposure time, white balance, contrast, Gamma correction and more
New-generation housing design with four-side mounting
Gigabit Ethernet interface: up to 100 m transmission without a repeater
Compatible with GigE Vision V2.0 and the GenICam standard for seamless connection to third-party software

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer
