Hikrobot SY-2000M 20 MP 1" CMOS Gigabit Ethernet industrial area scan camera
Model SY-2000MHikrobot
- Resolution5472 × 3648
- SensorCMOS, rolling shutter
- Speed5.9 fps @5472 × 3648 Mono 8
- Lens mountC-mount
- Mono / colourMono
- Pixel size2.4 μm × 2.4 μm
$1,409.00
Quoted price: add to quote for lead time and volume pricing.
End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.
Ships in 2-3 weeks
0.24 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot SY-2000M 20 MP 1" CMOS Gigabit Ethernet industrial area scan camera. Automatic or manual adjustment of gain, exposure time, white balance, LUT, gamma correction and more Integrated ISP algorithms including CCM and LSC correction
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | SY-2000M |
|---|---|
| Brand | Hikrobot |
| Compatibility | GigE Vision V2.0, GenICam |
Sensor and imaging
| Sensor type | CMOS, rolling shutter |
|---|---|
| Sensor model | Sony IMX183 |
| Pixel size | 2.4 μm × 2.4 μm |
| Sensor size | 1” |
| Resolution | 5472 × 3648 |
| Max. frame rate | 5.9 fps @5472 × 3648 Mono 8 |
| Dynamic range | 65.5 dB |
| SNR | 41.5 dB |
| Gain | 0 dB ~ 24 dB |
| Exposure time | 46 μs ~ 2.5 sec |
| Exposure mode | Off/Once/Continuous exposure mode, and supports Rolling and Global Reset mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse image | Supports horizontal and vertical reverse image output |
Interfaces and I/O
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
|---|---|
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
Environment and compliance
| Ingress protection | IP40 (under proper lens installation and wiring) |
|---|---|
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, RoHS, KC |
Computing
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
|---|
Electrical
| Power supply | 9 VDC to 24 VDC, supports PoE |
|---|---|
| Power consumption | 2.4 W@12 VDC |
Mechanical
| Lens mount | C-Mount |
|---|---|

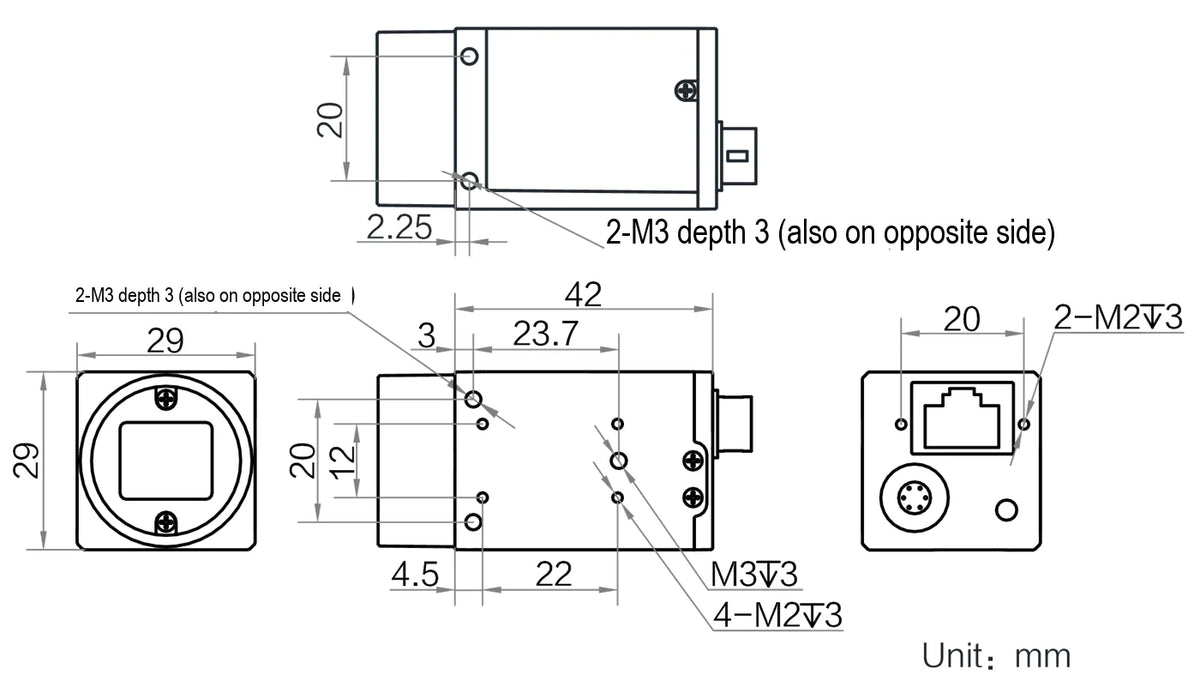

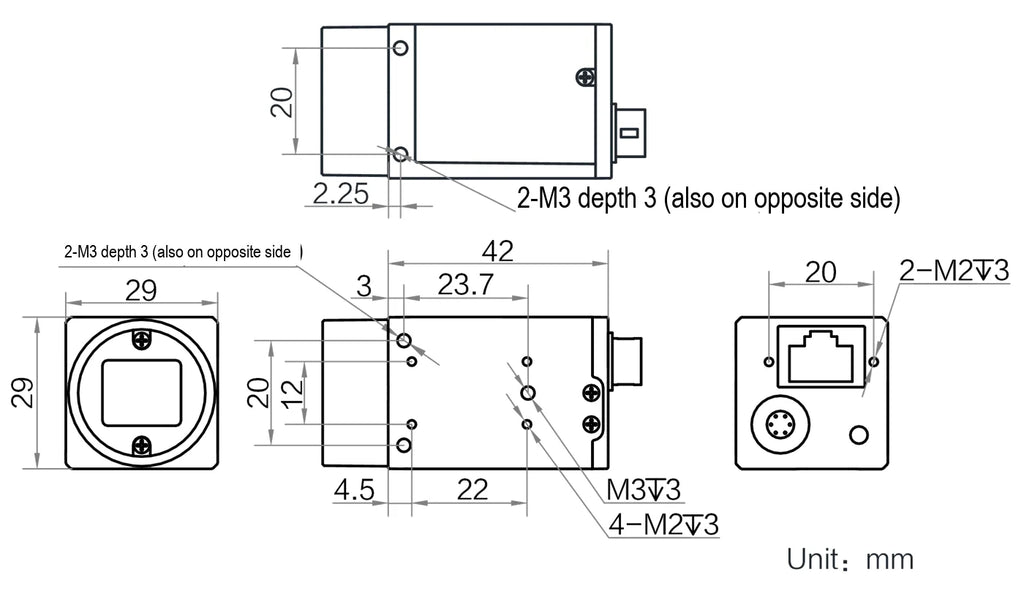

| Dimension | 29 mm × 29 mm × 42 mm |
| Weight | Approx. 100 g (0.2 lb.) |
| Shipping weight (estimated) | 0.24 kg |
