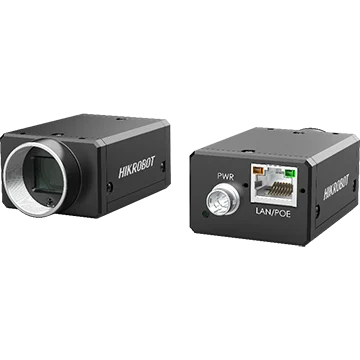

CH Series GigE Area Scan Cameras

Area scan cameras

CH Series GigE Area Scan Cameras

  • 40 models
  • from $1,139.00
  • Series HIK-CH-GIGE

The CH Series GigE Area Scan Cameras is a range of 40 area scan cameras from Hikrobot, from $1,139.00. It comes in 26 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 40 models Series datasheet (PDF)

The series at a glance

Sizes / versions
5 MP, 2/3", 2.5GigE, Color, 5 MP, 2/3", 2.5GigE, Mono, 8.8 MP, 1", GigE, Color, 8.8 MP, 1", GigE, Mono, 10.1 MP, 1", GigE, Color, 10.1 MP, 1", GigE, Mono, 12.3 MP, 1.1", GigE, Color, 12.3 MP, 1.1", GigE, Mono, 12.3 MP, GigE, Color, 12.3 MP, GigE, Mono, 12.6 MP, 1", GigE, Color, 12.6 MP, 1", GigE, Mono, 12.6 MP, 1.1", 2.5GigE, Color, 12.6 MP, 1.1", 2.5GigE, Mono, 12.6 MP, 1.1", GigE, Color, 12.6 MP, 1.1", GigE, Mono and 10 more
Interface
2.5GigE, GigE
Resolution
5 MP, 6-10 MP, 12 MP, 16-25 MP, 29 MP +
Shutter
Global
Colour
Color, Mono
Lens mount
M58, M72, C-mount, F-mount
Sensor format
2/3", 1", 1.1" - 1.2", 4/3" - APS-C, Medium / large

Features

  • Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc.
  • Adopts GigE interface and max. transmission distance of 100 meters without relay.
  • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
  • Four-side mounting, compact size, C-mount lens compatible
  • Automatic or manual gain and exposure time; manual LUT and gamma correction
  • Advanced features including LSC lens shading correction, Sequencer cycling and passive transmission
  • Color cameras support interpolation, white balance, CCM, SuperPalette, SuperBayer and other color algorithms
  • Compatible with GigE Vision V2.0 and the GenICam standard for seamless integration with third-party software platforms

All 40 models in the CH Series GigE Area Scan Cameras

Link
MV-CH100-60GM10.1 MP, 1", GigE, Mono4096 × 24601"3.45 μm × 3.45 μm$1,139.00View
MV-CH100-60GC10.1 MP, 1", GigE, Color4096 × 24601"3.45 μm × 3.45 μm$1,139.00View
HIK-C120-CG12.3 MP, GigE, Color4096 × 30001.1”3.45 μm × 3.45 μm$1,259.00View
MV-HH1200-GM12.3 MP, GigE, Mono4096 × 30001.1”3.45 μm × 3.45 μm$1,259.00quoteView
MV-CH120-20GM12.6 MP, 1", GigE, Mono4096 × 30721"3.2 μm × 3.2 μm$1,479.00View
MV-CH120-20GC12.6 MP, 1", GigE, Color4096 × 30721"3.2 μm × 3.2 μm$1,479.00View
MV-Semi250H26.2 MP, GigE, Mono5120 × 51201.1”2.5 μm × 2.5 μm$1,609.00View
MV-CH089-60GM V58.8 MP, 1", GigE, Mono4096 × 21601"3.45 μm × 3.45 μm$1,659.00View
MV-CH089-60GC V58.8 MP, 1", GigE, Mono4096 × 21601"3.45 μm × 3.45 μm$1,659.00View
MV-CH089-10GM8.8 MP, 1", GigE, Mono4096 × 21601"3.45 μm × 3.45 μm$1,719.00quoteView
MV-CH089-10GC8.8 MP, 1", GigE, Color4096 × 21601"3.45 μm × 3.45 μm$1,719.00quoteView
MV-CH120-10GM(EoL)12.3 MP, 1.1", GigE, Mono4096 × 30001.1"3.45 μm × 3.45 μm$1,959.00quoteView
MV-CH120-10GC(EoL)12.3 MP, 1.1", GigE, Color4096 × 30001.1"3.45 μm × 3.45 μm$1,959.00quoteView
MV-CH120-10GM12.3 MP, 1.1", GigE, Mono4096 × 30001.1"3.45 μm × 3.45 μm$1,959.00View
MV-CH120-10GC12.3 MP, 1.1", GigE, Color4096 × 30001.1"3.45 μm × 3.45 μm$1,959.00View
MV-CH120-10GM V512.3 MP, 1.1", GigE, Mono4096 × 30001.1"3.45 μm × 3.45 μm$1,959.00View
MV-CH120-10GC V512.3 MP, 1.1", GigE, Color4096 × 30001.1"3.45 μm × 3.45 μm$1,959.00View
MV-CH120-60GM12.3 MP, 1.1", GigE, Mono4096 × 30001.1"3.45 μm × 3.45 μm$1,959.00quoteView
MV-CH120-60GC12.3 MP, 1.1", GigE, Color4096 × 30001.1"3.45 μm × 3.45 μm$1,959.00quoteView
MV-CH120-60GM V512.3 MP, 1.1", GigE, Mono4096 × 30001.1"3.45 μm × 3.45 μm$1,959.00View
MV-CH120-60GC V512.3 MP, 1.1", GigE, Color4096 × 30001.1"3.45 μm × 3.45 μm$1,959.00View
MV-CH123-10GM12.3 MP, GigE, Mono4096 × 30001/1.1”2.74 μm × 2.74 μm$1,959.00View
MV-CH123-10GC12.3 MP, GigE, Color4096 × 30001/1.1”2.74 μm × 2.74 μm$1,959.00View
MV-CH120-90GM V512.6 MP, 1.1", GigE, Mono4096 × 30721.1"3.4 μm × 3.4 μm$1,979.00View
MV-CH120-90GC V512.6 MP, 1.1", GigE, Color4096 × 30721.1"3.4 μm × 3.4 μm$1,979.00View
MV-CH140-60GM13.3 MP, 1", GigE, Mono4708 × 28241"3 μm × 3 μm$2,029.00View
MV-CH140-60GC13.3 MP, 1", GigE, Color4708 × 28241"3 μm × 3 μm$2,029.00View
MV-CH160-60GM16 MP, 1.1", GigE, Mono4000 × 40001.1"3.2 μm × 3.2 μm$2,229.00quoteView
MV-CH250-90GM26.2 MP, 1.1", GigE, Mono5120 × 51201.1"2.5 μm × 2.5 μm$2,459.00View
MV-CH250-90GC26.2 MP, 1.1", GigE, Color5120 × 51201.1"2.5 μm × 2.5 μm$2,459.00View
MV-CH050-60NM5 MP, 2/3", 2.5GigE, Mono2448 × 20482/3"3.45 μm × 3.45 μm$2,469.00View
MV-CH050-60NC5 MP, 2/3", 2.5GigE, Color2448 × 20482/3"3.45 μm × 3.45 μm$2,469.00View
MV-CH250-90GN26.2 MP, 1.1", GigE5120 × 51201.1"2.5 μm × 2.5 μm$2,859.00quoteView
MV-CH310-10GM-F-NF31.4 MP, GigE, Mono6464 × 485222.3 mm × 16.7 mm3.45 μm × 3.45 μm$3,119.00quoteView
MV-CH310-10GC-F-NF31.4 MP, GigE, Color6464 × 485222.3 mm × 16.7 mm3.45 μm × 3.45 μm$3,119.00quoteView
MV-CH120-60NM12.6 MP, 1.1", 2.5GigE, Mono4096 × 30721.1"3.45 μm × 3.45 μm$3,919.00quoteView
MV-CH120-60NC12.6 MP, 1.1", 2.5GigE, Color4096 × 30721.1"3.45 μm × 3.45 μm$3,919.00quoteView
MV-CH1520-90GM-M72-NN150.1 MP, GigE, Mono16320 × 920053.0 mm × 29.4 mm3.2 μm × 3.2 μm$6,829.00quoteView
MV-CH310-10GM-M58S-NF31.4 MP, GigE, Mono6464 × 485222.3 mm × 16.7 mm3.45 μm × 3.45 μm$9,579.00quoteView
MV-CH310-10GC-M58S-NF31.4 MP, GigE, Color6464 × 485222.3 mm × 16.7 mm3.45 μm × 3.45 μm$9,579.00quoteView
