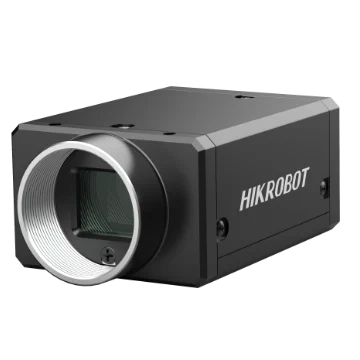

Hikrobot MV-CH160-60GM 16MP Area Scan Camera, GigE
Model MV-CH160-60GMHikrobot
- Resolution4000 × 4000
- SensorCMOS, global shutter
- Speed7.25 fps @ 4000 × 4000
- Lens mountC-mount
- Mono / colourMono
- Pixel size3.2 μm × 3.2 μm
$2,229.00
Quoted price: add to quote for lead time and volume pricing.
End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.
Ships in 2-3 weeks
0.24 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-CH160-60GM 16MP Area Scan Camera, GigE. Resolution of 4000 × 4000, pixel size of 3.2 µm × 3.2 µm. Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-CH160-60GM |
|---|---|
| Brand | Hikrobot |
| Compatibility | GigE Vision V2.0, GenlCam |
Sensor and imaging
| Sensor type | CMOS, global shutter |
|---|---|
| Sensor model | HK |
| Pixel size | 3.2 μm × 3.2 μm |
| Sensor size | 1.1" |
| Resolution | 4000 × 4000 |
| Max. frame rate | 7.25 fps @ 4000 × 4000 |
| Dynamic range | 65 dB |
| SNR | 38 dB |
| Gain | 6 dB to 14 dB |
| Exposure time | 12 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
Interfaces and I/O
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
|---|---|
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
Environment and compliance
| Ingress protection | IP30 (under proper lens installation and wiring) |
|---|---|
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Certification | CE, RoHS, KC |
Computing
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
|---|
Electrical
| Power supply | 9 VDC to 26 VDC, supports PoE |
|---|---|
| Power consumption | Typ. 3.72 W @ 12 VDC |
Mechanical
| Lens mount | C-mount |
|---|---|
| Dimension | 29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3") |
| Weight | Approx. 100 g (0.2 lb.) |
| Shipping weight (estimated) | 0.24 kg |
