Area scan cameras

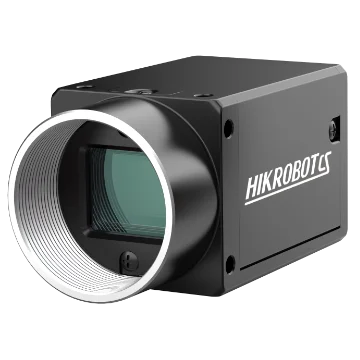

Hikrobot MV-CH123-10GM 12 MP GigE area scan camera, IMX545, Mono
Model MV-CH123-10GMHikrobot
- Resolution4096 × 3000
- SensorCMOS, global shutter
- Speed9.50 fps @4096 × 3000 Mono 8
- Lens mountC-mount
- Mono / colourMono
- Pixel size2.74 μm × 2.74 μm
$1,959.00
Ships in 2-3 weeks
0.24 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-CH123-10GM 12 MP GigE area scan camera, IMX545, Mono. Four-side mounting, compact size, C-mount lens compatible Automatic or manual gain and exposure time; manual LUT and gamma correction
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-CH123-10GM |
|---|---|
| Brand | Hikrobot |
| Compatibility | GigE Vision V2.0, GenICam |
Sensor and imaging
| Sensor type | CMOS, global shutter |
|---|---|
| Sensor model | Sony IMX545 |
| Pixel size | 2.74 μm × 2.74 μm |
| Sensor size | 1/1.1” |
| Resolution | 4096 × 3000 |
| Max. frame rate | 9.50 fps @4096 × 3000 Mono 8 |
| Dynamic range | 69.4 dB |
| SNR | 39.2 dB |
| Gain | 0 dB ~ 24 dB |
| Exposure time | Ultra-short exposure time: 1 μs to 2 μs; Standard exposure time: 3 μs to 10 s |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
Interfaces and I/O
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
|---|---|
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
Environment and compliance
| Ingress protection | IP40 (under proper lens installation and wiring) |
|---|---|
| Temperature | Operating temperature -10°C to 50°C, Storage temperature -30°C to 80°C |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, RoHS, KC |
Computing
| Operating system | Windows 7/10 32bits, Windows 11/64bits, Linux 32/64bits |
|---|
Electrical
| Power supply | 9~24VDC, PoE power supported |
|---|---|
| Power consumption | 2.4 W@12 VDC |
Mechanical
| Lens mount | C-Mount |
|---|---|

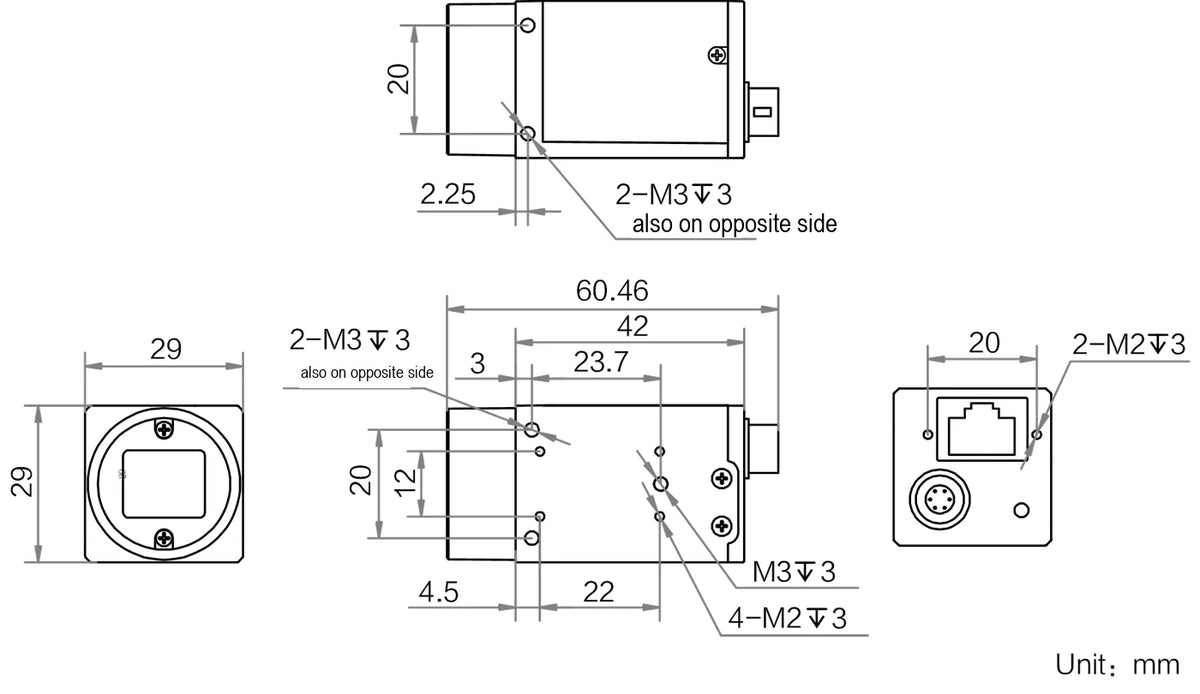

| Dimension | 29 mm × 29 mm × 42 mm |
| Weight | 101.6 g |
| Shipping weight (estimated) | 0.24 kg |
