Area scan cameras

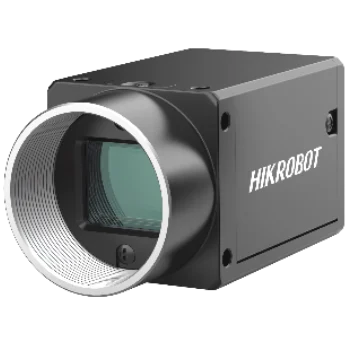

Hikrobot MV-CH050-60NC 5MP Area Scan Camera, 2.5GigE, Color
Model MV-CH050-60NCHikrobot
- Resolution2448 × 2048
- SensorCMOS, global shutter
- Speed60 fps @ 2448 × 2048 Bayer GR 8
- Lens mountC-mount
- Mono / colourColor
- Pixel size3.45 μm × 3.45 μm
$2,469.00
Ships in 2-3 weeks
0.24 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-CH050-60NC 5MP Area Scan Camera, 2.5GigE, Color. Adopts brand new design to reduce power consumption. Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc., and supports HDR function.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-CH050-60NC |
|---|---|
| Brand | Hikrobot |
| Compatibility | GigE Vision V2.0, GenICam |
Sensor and imaging
| Sensor type | CMOS, global shutter |
|---|---|
| Sensor model | Stacked BSI |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 2/3" |
| Resolution | 2448 × 2048 |
| Max. frame rate | 60 fps @ 2448 × 2048 Bayer GR 8 |
| Dynamic range | 69.6 dB |
| SNR | 44.1 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 5 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Pixel format | Mono 8/10/12; Bayer GR 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Mono/color | Color |
Interfaces and I/O
| Data interface | 2.5 Gigabit Ethernet (2500 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) |
|---|---|
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
Environment and compliance
| Ingress protection | IP40 (under proper lens installation and wiring) |
|---|---|
| Temperature | Working temperature: –10 °C to 45 °C (–14 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, RoHS, KC |
Computing
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
|---|
Electrical
| Power supply | 9 VDC to 24 VDC, supports PoE |
|---|---|
| Power consumption | Typ. 3.7 W @ 12 VDC |
Mechanical
| Lens mount | C-mount |
|---|---|
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 100 g (0.2 lb.) |
| Shipping weight (estimated) | 0.24 kg |
