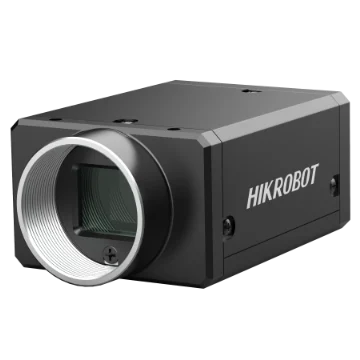

Hikrobot MV-CH140-60GC 14MP Area Scan Camera, GigE, Color

Area scan cameras

Hikrobot MV-CH140-60GM 14MP Area Scan Camera, GigE, Mono

Model MV-CH140-60GMHikrobot

Resolution4708 × 2824
SensorCMOS, global shutter
Speed9 fps @ 4708 × 2824 Mono 8
Lens mountC-mount
Mono / colourMono
Pixel size3 μm × 3 μm

$2,029.00

Ships in 2-3 weeks

0.26 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CH140-60GM 14MP Area Scan Camera, GigE, Mono. Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc. Adopts GigE interface and max. transmission distance of 100 meters without relay.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CH140-60GM
Brand	Hikrobot
Compatibility	GigE Vision V2.0, GenlCam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	Stacked BSI
Pixel size	3 μm × 3 μm
Sensor size	1"
Resolution	4708 × 2824
Max. frame rate	9 fps @ 4708 × 2824 Mono 8
Dynamic range	56.9 dB
SNR	41.9 dB
Gain	0 dB to 24 dB
Exposure time	80 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Mono
Pixel format	Mono 8/10/10Packed/12/12Packed
Binning	Supports 1 × 1, 2 × 2
Decimation	Supports 1 × 1, 2 × 2
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client software	MVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supply	9 VDC to 24 VDC, supports PoE
Power consumption	Typ. 3.0 W @ 12 VDC

Mechanical

Lens mount	C-mount
Dimension	29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3")
Weight	Approx. 117 g (0.3 lb.)
Shipping weight (estimated)	0.26 kg

Downloads

Features

Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc.
Adopts GigE interface and max. transmission distance of 100 meters without relay.
Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
