Hikrobot MV-CH310-10GM-F-NF 31MP Area Scan Camera, GigE, IMX342, Mono, F-mount, with fan
  • Hikrobot MV-CH310-10GM-F-NF 31MP Area Scan Camera, GigE, IMX342, Mono, F-mount, with fan
  • MV-CH310-10GM-F-NF dimensions (mm)

Area scan cameras

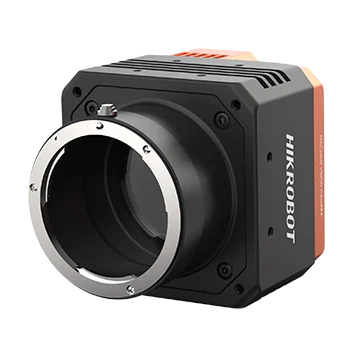

Hikrobot MV-CH310-10GM-F-NF 31MP Area Scan Camera, GigE, IMX342, Mono, F-mount, with fan

Model MV-CH310-10GM-F-NFHikrobot

  • Resolution6464 × 4852
  • SensorCMOS, global shutter
  • Speed3.9 fps @ 6464 × 4852 Mono 8
  • Lens mountF-mount
  • Mono / colourMono
  • Pixel size3.45 μm × 3.45 μm
$3,119.00
List price

Ships in 2-3 weeks

0.94 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Area scan cameras

lumaspecvision.com/products/lumaspec-mv-ch310-10gm-f-nf

With a 6464 x 4852 (31 MP) sensor, MV-CH310-10GM-F-NF, the mono version, sits in the upper half of the 10 resolutions of this camera series: about 1.2 times the resolution of the 5120 x 5120 (26 MP) version, for finer detail over the same field.

MV-CH310-10GM-F-NF: resolution 6464 x 4852; sensor size 22.3 mm x 16.7 mm; max. frame rate 3.9 fps @ 6464 x 4852 Mono 8; dynamic range 73 dB; lens mount F-mount, flange back length 46.5 mm.

Hikrobot MV-CH310-10GM-F-NF 31MP Area Scan Camera, GigE, IMX342, Mono, F-mount, with fan.

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CH310-10GM-F-NF
BrandHikrobot
CompatibilityGigE Vision V2.0, GenICam

Sensor and imaging

Sensor typeCMOS, global shutter
Sensor modelSony® IMX342
Pixel size3.45 μm × 3.45 μm
Sensor size22.3 mm × 16.7 mm
Resolution6464 × 4852
Max. frame rate3.9 fps @ 6464 × 4852 Mono 8
Dynamic range73 dB
SNR40 dB
Gain0 dB to 24 dB
Exposure timeUltraShort exposure mode: 3 μs to 33 μs; Standard exposure mode: 36 μs to 2 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2
DecimationSupports 1 × 1, 2 × 2
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Client softwareMVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating system32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux

Electrical

Power supply9 VDC to 24 VDC
Power consumptionTyp. 9 W @ 12 VDC

Mechanical

Lens mountF-mount, flange back length 46.5 mm
Dimension74 mm × 74 mm × 80.1 mm (2.9" × 2.9" × 3.2")
WeightApprox. 600 g (1.3 lb.)
Shipping weight (estimated)0.94 kg

Engineering data

Field of view and resolution with the MV-CH310-10GM-F-NF

Sensor area22.3 × 16.74 mmAPS-C optical format
Lens image circle needed≥ Ø 27.9 mmF-mount
Pixel pitch3.45 µm6464 x 4852 px
Image data at max frame rate122 MB/sCalculated: 3.9 fps × 6464 × 4852 px at 8 bit · GigE carries 125 MB/s nominal
With a 35 mm lens at 500 mm319 × 239 mm0.049 mm per pixel
Dynamic range73 dB
SNR40 dB
Power consumption9 Wtyp. at 12 V DC
Exposure range36 µs to 2 sstandard mode
Weight600 gapprox.
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
16 mm418 × 314 mm0.065 mm per pixel697 × 523 mm0.108 mm per pixel1394 × 1046 mm0.216 mm per pixel
25 mm268 × 201 mm0.041 mm per pixel446 × 335 mm0.069 mm per pixel892 × 670 mm0.138 mm per pixel
35 mm191 × 143 mm0.03 mm per pixel319 × 239 mm0.049 mm per pixel637 × 478 mm0.099 mm per pixel
50 mm134 × 100 mm0.021 mm per pixel223 × 167 mm0.034 mm per pixel446 × 335 mm0.069 mm per pixel
75 mm89.2 × 67 mm0.014 mm per pixel149 × 112 mm0.023 mm per pixel297 × 223 mm0.046 mm per pixel
100 mm66.9 × 50.2 mm0.01 mm per pixel112 × 83.7 mm0.017 mm per pixel223 × 167 mm0.034 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $4,028.00

Lenses for this F-mount camera

This camera's 27.9 mm sensor diagonal uses 93 % of the lens's 30 mm image circle

This camera's 27.9 mm sensor diagonal uses 100 % of the lens's 28 mm image circle

This camera's 27.9 mm sensor diagonal uses 63 % of the lens's 44 mm image circle

This camera's 27.9 mm sensor diagonal uses 63 % of the lens's 44 mm image circle

This camera's 27.9 mm sensor diagonal uses 63 % of the lens's 44 mm image circle

This camera's 27.9 mm sensor diagonal uses 63 % of the lens's 44 mm image circle

Cables and frame grabbers

Connector not printed: GigE Vision cameras usually take RJ-45; check the drawing

Connector not printed: GigE Vision cameras usually take RJ-45; check the drawing

Connector not printed: GigE Vision cameras usually take RJ-45; check the drawing

Connector not printed: GigE Vision cameras usually take RJ-45; check the drawing

Connector not printed: GigE Vision cameras usually take RJ-45; check the drawing

Connector not printed: GigE Vision cameras usually take RJ-45; check the drawing

Before you buy

Questions about the MV-CH310-10GM-F-NF

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which lenses fit the MV-CH310-10GM-F-NF?

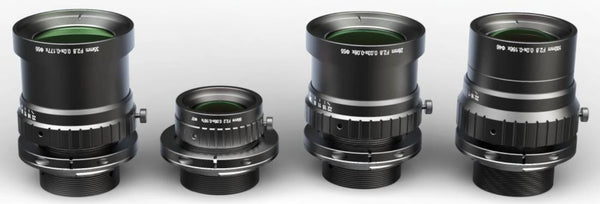

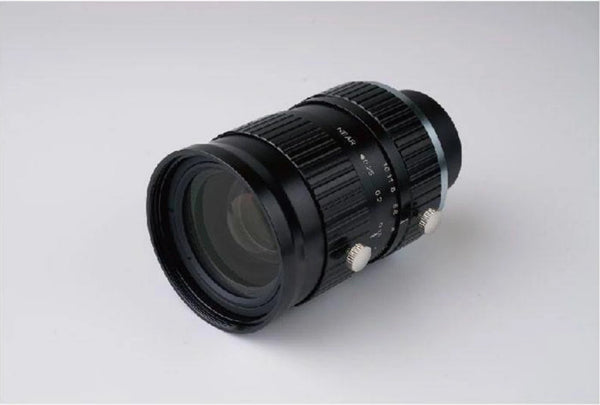

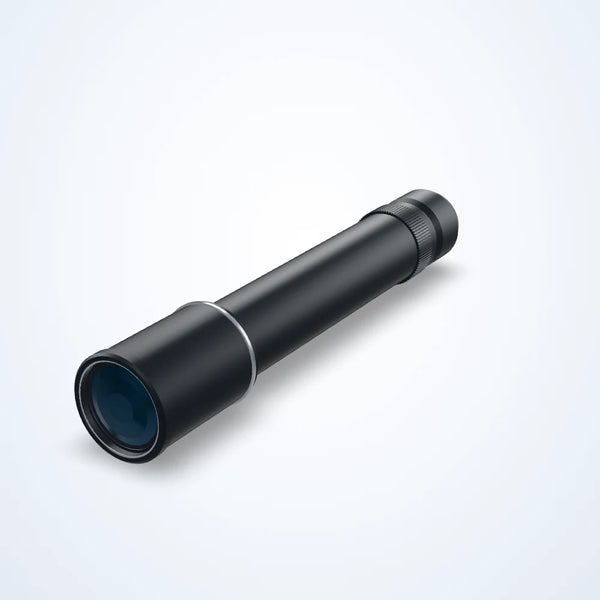

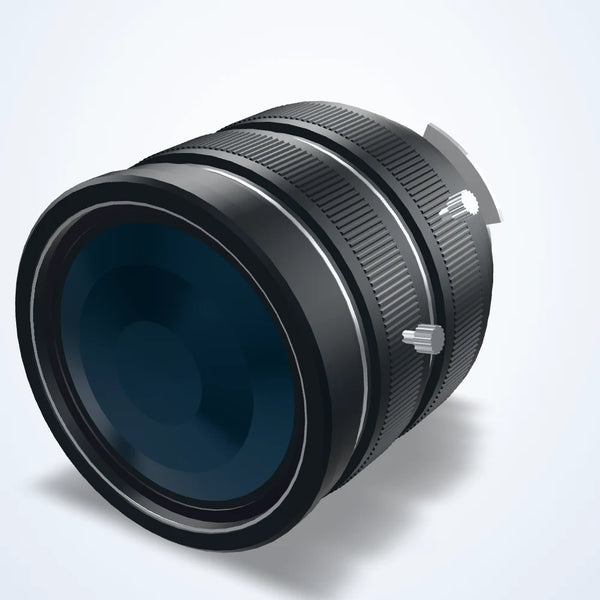

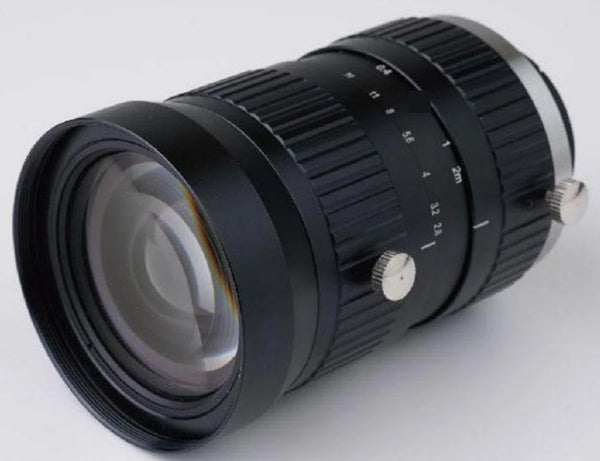

F-mount lenses whose image circle covers its sensor diagonal (about 27.9 mm): LS-FFL-1546 (28 mm), LS-TCL-1208 (1.115x), LS-FFL-1501 (35 mm) and LS-FFL-1194 (100 mm).

What data rate does the MV-CH310-10GM-F-NF need over GigE?

About 122 MB/s at its printed 3.9 fps at 6464 x 4852 (8 bits per pixel, calculated), about 98 % of the nominal 125 MB/s GigE link.

Which cables does the MV-CH310-10GM-F-NF take?

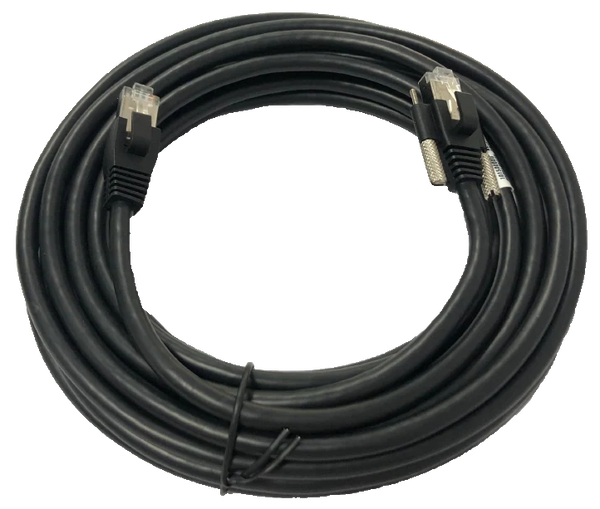

Fit-tested for its GigE interface: LS-CBL-0195 (3 m), LS-CBL-0196 (5 m), LS-CBL-0107 (1 m), LS-CBL-0197 (10 m) and LS-CBL-0102 (3 m).

How does the MV-CH310-10GM-F-NF connect?

Printed: Data interface: Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s).

What I/O does the MV-CH310-10GM-F-NF have?

Printed: Digital I/O: 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.

Other models in the CH Series GigE Area Scan Camera series

See all 40 models
  • Joint highest dynamic range in this series (56.9 to 73 dB)

How this model compares

  • Same 6464 × 4852 sensor as MV-CH310-10GC-F-NF (Color) and MV-CH310-10GC-M58S-NF (Color) and 2 more; this one: Mono.
  • Full-resolution 8-bit frames at 3.9 fps work out to about 122 MB/s, 98% of the 125 MB/s a 1 Gbit/s link carries.
  • Compared with MV-CH310-10GM-M58S-NF: weight Approx. 600 g (1.3 lb.) here, Approx. 550 g (1.2 lb.) there.
