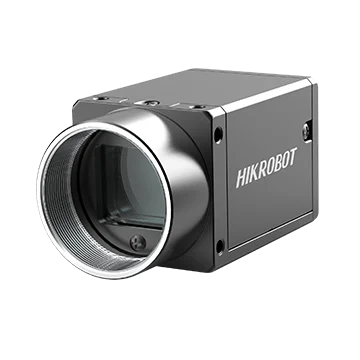

Hikrobot MV-CH089-60GM V5 8.9MP Area Scan Camera, GigE, V5, Mono

Area scan cameras

Hikrobot MV-CH120-10GM 12MP Area Scan Camera, GigE, IMX304, Mono, V4

Model MV-CH120-10GMHikrobot

Resolution4096 × 3000
SensorCMOS, global shutter
Speed9.9 fps @ 4096 × 3000 Mono 8
Lens mountC-mount
Mono / colourMono
Pixel size3.45 μm × 3.45 μm

$1,959.00

Ships in 2-3 weeks

0.24 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CH120-10GM 12MP Area Scan Camera, GigE, IMX304, Mono, V4. Supports LSC, Sequencer, passive transmission, Super Bayer, Super Palette, etc. Compact design with mounting holes on panels for flexible mounting from 4 sides.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CH120-10GM
Brand	Hikrobot
Compatibility	GigE Vision 2.0, GenlCam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	Sony® IMX304
Pixel size	3.45 μm × 3.45 μm
Sensor size	1.1"
Resolution	4096 × 3000
Max. frame rate	9.9 fps @ 4096 × 3000 Mono 8
Dynamic range	70.4 dB
SNR	40 dB
Gain	0 dB to 24 dB
Exposure time	UltraShort exposure mode: 2 μs to 14 μs; Standard exposure mode: 15 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Pixel format	Mono 8/10/10Packed/12/12Packed
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output
Mono/color	Mono

Interfaces and I/O

Data interface	Gigabit Ethernet, compatible with Fast Ethernet
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client software	MVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protection	IP 40 (under proper lens installation and wiring)
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supply	9 VDC to 24 VDC, supports PoE
Power consumption	Typ. 2.9 W@12 VDC

Mechanical

Lens mount	C-mount
Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
Weight	100 g (0.2 lb.)
Shipping weight (estimated)	0.24 kg

Downloads

Features

Supports LSC, Sequencer, passive transmission, Super Bayer, Super Palette, etc.
Compact design with mounting holes on panels for flexible mounting from 4 sides.
Adopts GigE interface and max. transmission distance of 100 meters without relay.
Supports hardware trigger, software trigger, free run, etc.
Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on these protocol and standard.
