Area scan cameras

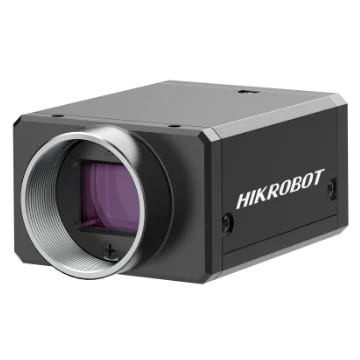

Hikrobot MV-Semi250H 25 MP 1.1" CMOS Gigabit Ethernet industrial area scan camera
Model MV-Semi250HHikrobot
- Resolution5120 × 5120
- SensorCMOS, global shutter
- Speed4.5 fps @5120 × 5120 Mono 8
- Lens mountC-mount
- Mono / colourMono
- Pixel size2.5 μm × 2.5 μm
$1,609.00
Ships in 2-3 weeks
0.24 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-Semi250H 25 MP 1.1" CMOS Gigabit Ethernet industrial area scan camera. 25 MP resolution, 2.5 µm pixel size Compact size, compatible with C-mount lenses
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-Semi250H |
|---|---|
| Brand | Hikrobot |
| Compatibility | GigE Vision V2.0, GenICam |
Sensor and imaging
| Sensor type | CMOS, global shutter |
|---|---|
| Sensor model | Gpixel GMAX0505 |
| Pixel size | 2.5 μm × 2.5 μm |
| Sensor size | 1.1” |
| Resolution | 5120 × 5120 |
| Max. frame rate | 4.5 fps @5120 × 5120 Mono 8 |
| Dynamic range | 63 dB |
| SNR | 36 dB |
| Gain | 2.0 ×, 2.5 ×, 3.0 ×, 3.5 ×, 4.0 ×, 4.5 ×, 5.0 × |
| Exposure time | 12 μs ~ 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
Interfaces and I/O
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
|---|---|
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
Environment and compliance
| Ingress protection | IP40 (under proper lens installation and wiring) |
|---|---|
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, RoHS, KC |
Computing
| Operating system | Windows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits |
|---|
Electrical
| Power supply | 9 VDC to 24 VDC, supports PoE |
|---|---|
| Power consumption | 3.1 W@12 VDC |
Mechanical
| Lens mount | C-mount |
|---|---|

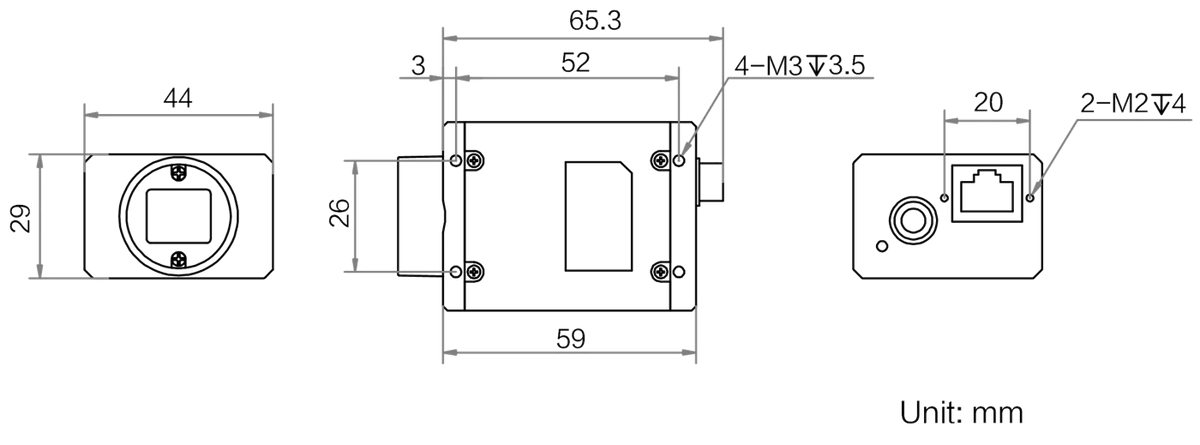

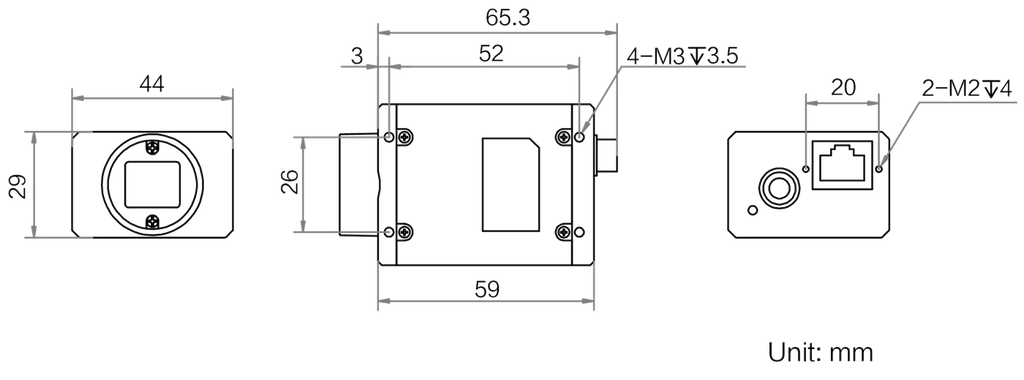

| Dimension | 29 mm x 44 mm × 59 mm |
| Weight | Approx. 100 g (0.2 lb.) |
| Shipping weight (estimated) | 0.24 kg |
