Hikrobot MV-CH250-90GC 25MP Area Scan Camera, GigE, GMAX0505, Color, V4

Model MV-CH250-90GCHikrobot

Resolution5120 × 5120
SensorCMOS, global shutter
Speed4.5 fps @ 5120 × 5120 Bayer BG 8
Lens mountC-mount
Mono / colourColor
Pixel size2.5 μm × 2.5 μm

$2,459.00

Ships in 2-3 weeks

0.24 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CH250-90GC 25MP Area Scan Camera, GigE, GMAX0505, Color, V4. Resolution of 5120 × 5120, pixel size of 2.5 µm × 2.5 µm. Supports binning, reverse image output and LSC. Compatible with C-mount lenses.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CH250-90GC
Brand	Hikrobot
Compatibility	GigE Vision V2.0, GenlCam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	Gpixel GMAX0505
Pixel size	2.5 μm × 2.5 μm
Sensor size	1.1"
Resolution	5120 × 5120
Max. frame rate	4.5 fps @ 5120 × 5120 Bayer BG 8
Dynamic range	63 dB
SNR	36 dB
Gain	0 dB to 24 dB
Exposure time	12 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Color
Pixel format	Mono 8/10/12; Bayer BG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client software	MVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supply	9 VDC to 24 VDC, supports PoE
Power consumption	Typ. 3.2 W @ 12 VDC

Mechanical

Lens mount	C-mount

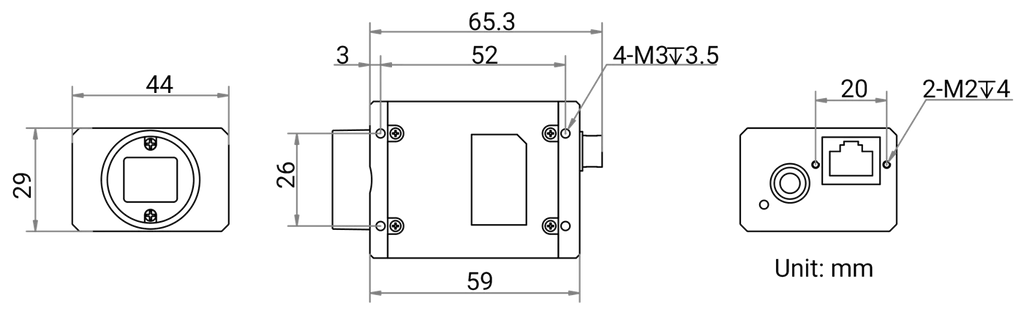

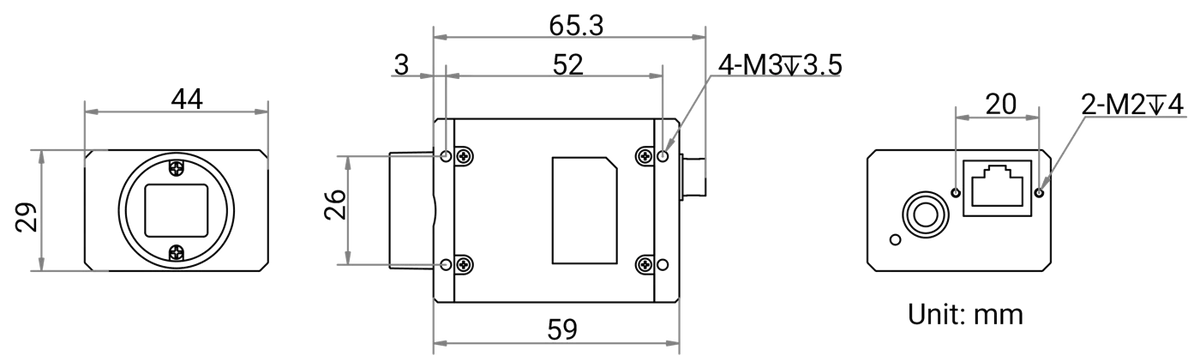

Dimension	29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3")
Weight	Approx. 100 g (0.2 lb.)
Shipping weight (estimated)	0.24 kg

Downloads

Features

Resolution of 5120 × 5120, pixel size of 2.5 µm × 2.5 µm.
Supports binning, reverse image output and LSC. Compatible with C-mount lenses.
Easy and flexible installation, with mounting holes on both panels of the camera.
Adopts GigE interface and max. transmission distance of 100 meters without relay.
Supports hardware trigger, software trigger, free run, etc.
Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
