Area scan cameras

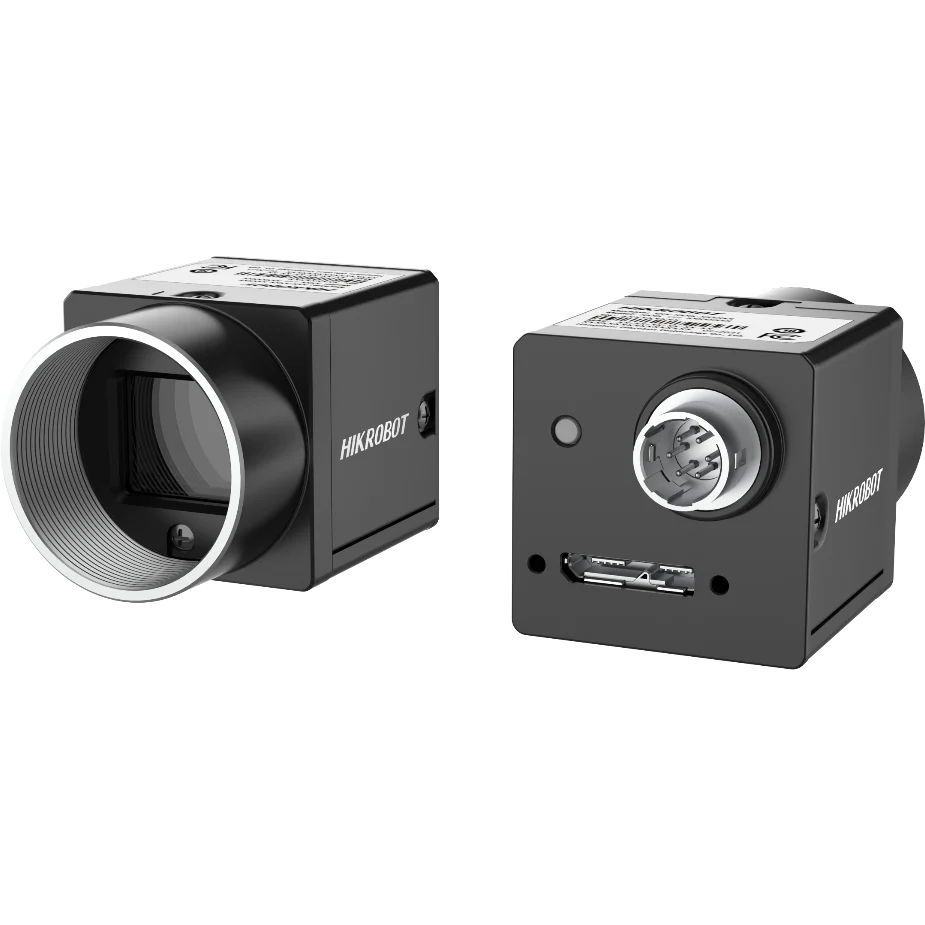

CU Series USB3.0 Area Scan Cameras
- 20 models
- from $219.00
- Series HIK-CU-USB
The CU Series USB3.0 Area Scan Cameras is a range of 20 area scan cameras from Hikrobot, from $219.00. It comes in 18 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 1.3 MP, 1/2", USB3, Color, 1.3 MP, 1/2", USB3, Mono, 1.3 MP, 1/2.7", USB3, Color, 1.3 MP, 1/2.7", USB3, Mono, 1.3 MP, USB3, Color, 1.3 MP, USB3, Mono, 2.5 MP, 1/1.7", USB3, Color, 2.5 MP, 1/1.7", USB3, Mono, 2.5 MP, USB3, Color, 5 MP, 1/2.5", USB3, Mono, 5.6 MP, 1/2", USB3, Color, 5.6 MP, 1/2", USB3, Mono, 6.3 MP, 1/1.8", USB3, Color, 6.3 MP, 1/1.8", USB3, Mono, 12.2 MP, 1/1.7", USB3, Color, 12.2 MP, 1/1.7", USB3, Mono and 2 more
- Interface
- USB3
- Resolution
- Up to 3 MP, 5 MP, 6-10 MP, 12 MP, 16-25 MP
- Shutter
- Global, Rolling
- Colour
- Color, Mono
- Lens mount
- C-mount
- Sensor format
- 1/2.5" and smaller, 1/2", 1/1.8" - 1/1.56"
Features
- Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc.
- Supports customized ROI, horizontal and vertical reverse image output.
- Adopts compact design for flexible installation.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
- Supports Sequencer and multiple ISP functions to provide high-quality images.
- Adopts optimized hardware design and low-power design with stable performance.
- Supports auto or manual adjustment of gain, exposure time, manual adjustment of LUT, and Gamma correction, etc.
- Supports auto or manual adjustment of gain, exposure time, manual adjustment of LUT, Gamma correction, etc.
All 20 models in the CU Series USB3.0 Area Scan Cameras
| Link | ||||||
|---|---|---|---|---|---|---|
| MV-CU013-A0UM | 1.3 MP, 1/2", USB3, Mono | 1280 × 1024 | 1/2" | CMOS, global shutter | $219.00 | View |
| MV-CU013-A0UC | 1.3 MP, 1/2", USB3, Color | 1280 × 1024 | 1/2" | CMOS, global shutter | $219.00 | View |
| MV-CU013-A1UC | 1.3 MP, 1/2", USB3, Color | 1280 × 1024 | 1/2" | CMOS, global shutter | $219.00 | View |
| MV-CU020-90UM | 2.5 MP, 1/1.7", USB3, Mono | 2048 × 1200 | 1/1.7" | CMOS, global shutter | $229.00 | View |
| MV-CU020-90UC | 2.5 MP, 1/1.7", USB3, Color | 2048 × 1200 | 1/1.7" | CMOS, global shutter | $229.00 | View |
| MV-CU013-80UM | 1.3 MP, 1/2.7", USB3, Mono | 1280 × 1024 | 1/2.7" | CMOS, global shutter | $279.00 | View |
| MV-CU013-80UC | 1.3 MP, 1/2.7", USB3, Color | 1280 × 1024 | 1/2.7" | CMOS, global shutter | $279.00 | View |
| MV-CU050-60UM | 5 MP, 1/2.5", USB3, Mono | 2592 × 1944 | 1/2.5" | CMOS, rolling shutter | $319.00 | View |
| MV-CU060-10UM | 6.3 MP, 1/1.8", USB3, Mono | 3072 × 2048 | 1/1.8" | CMOS, rolling shutter | $319.00 | View |
| MV-CU060-10UC | 6.3 MP, 1/1.8", USB3, Color | 3072 × 2048 | 1/1.8" | CMOS, rolling shutter | $319.00 | View |
| MV-CU050-90UC | 5.6 MP, 1/2", USB3, Color | 2600 × 2160 | 1/2" | CMOS, global shutter | $339.00quote | View |
| XXV-013C-XAU | 1.3 MP, USB3, Color | 1280 × 1024 | 1/2” | CMOS, global shutter | $439.00 | View |
| XXV-013M-XAU | 1.3 MP, USB3, Mono | 1280 × 1024 | 1/2” | CMOS, global shutter | $439.00 | View |
| MV-CU120-10UM | 12.2 MP, 1/1.7", USB3, Mono | 4024 × 3036 | 1/1.7" | CMOS, rolling shutter | $499.00 | View |
| MV-CU120-10UC | 12.2 MP, 1/1.7", USB3, Color | 4024 × 3036 | 1/1.7" | CMOS, rolling shutter | $499.00 | View |
| MV-CU050-90UM | 5.6 MP, 1/2", USB3, Mono | 2600 × 2160 | 1/2" | CMOS, global shutter | $569.00 | View |
| HIK-C020-C | 2.5 MP, USB3, Color | 2048 × 1200 | 1/1.7” | CMOS, global shutter | $609.00 | View |
| MV-CU200-20UC | 19.7 MP, 1/1.8", USB3, Color | 5120 × 3840 | 1/1.8" | CMOS, rolling shutter | $629.00 | View |
| MV-CU200-20UM | 19.7 MP, 1/1.8", USB3, Mono | 5120 × 3840 | 1/1.8" | CMOS, rolling shutter | $629.00 | View |
| MVAC-PY-FX453-43XP | 12.2 MP, 1/1.7", USB3, Color | 4024 × 3036 | 1/1.7" | CMOS, rolling shutter | $1,349.00 | View |
