Hikrobot MV-CU060-10UC 6MP Area Scan Camera, USB3, IMX178, Color
Model MV-CU060-10UCHikrobot
- Resolution3072 × 2048
- SensorCMOS, rolling shutter
- InterfaceUSB3.0, compatible with USB2.0
- Speed59.6 fps @3072 × 2048 Bayer RG 8
- Lens mountC-mount
- Mono / colourColor
$319.00
Ships in 2-3 weeks
0.21 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-CU060-10UC 6MP Area Scan Camera, USB3, IMX178, Color. Adopts brand new design to reduce power consumption. Supports increasing frame rate via ROI, and supports binning, horizontal and vertical reverse image output.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-CU060-10UC |
|---|---|
| Brand | Hikrobot |
| Compatibility | USB3 Vision, GenlCam |
Sensor and imaging
| Sensor type | CMOS, rolling shutter |
|---|---|
| Sensor model | Sony® IMX178 |
| Pixel size | 2.4 μm × 2.4 μm |
| Sensor size | 1/1.8" |
| Resolution | 3072 × 2048 |
| Max. frame rate | 59.6 fps @3072 × 2048 Bayer RG 8 |
| Dynamic range | 66.4 dB |
| SNR | 41.5 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 8 μs to 1 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Bayer RG 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
Interfaces and I/O
| Data interface | USB3.0, compatible with USB2.0 |
|---|---|
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
Environment and compliance
| Ingress protection | IP40 (under proper lens installation and wiring) |
|---|---|
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 80% RH, non-condensing |
| Certification | CE, RoHS, KC |
Computing
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
|---|
Electrical
| Power supply | 9 VDC to 24 VDC, supports USB3.0 power supply |
|---|---|
| Power consumption | Typ. 1.9 W@5 VDC (USB3.0 provides power supply) |
Mechanical
| Lens mount | C-mount |
|---|---|

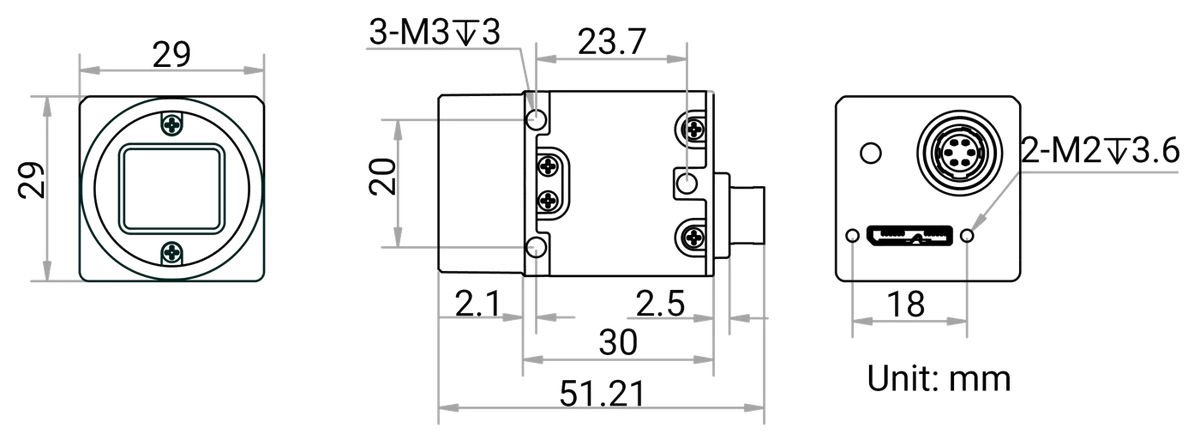

| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 76 g (0.2 lb.) |
| Shipping weight (estimated) | 0.21 kg |
