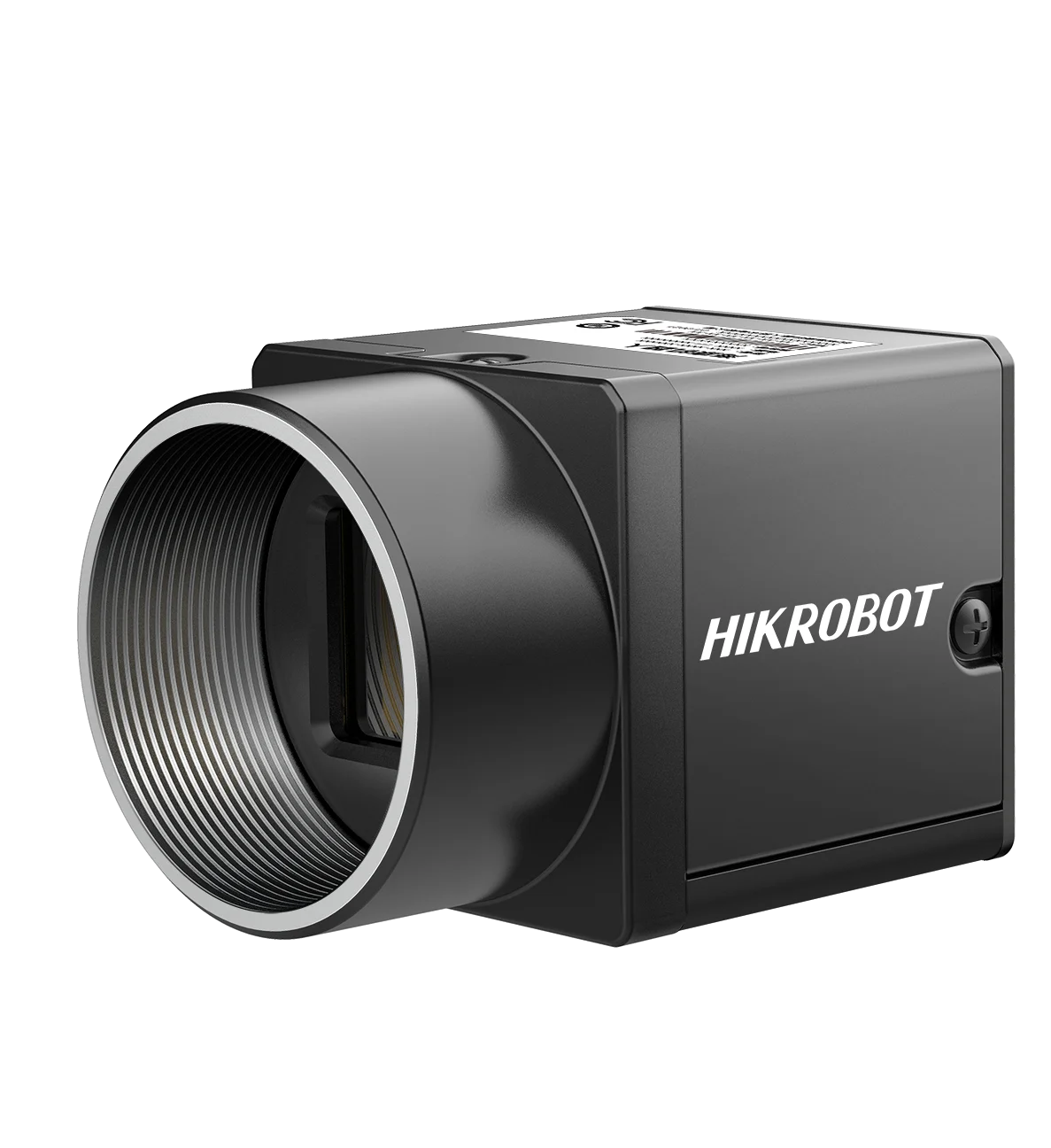

Hikrobot MV-CU013-A1UC 1.3MP Area Scan Camera, USB3

Model MV-CU013-A1UCHikrobot

Resolution1280 × 1024
SensorCMOS, global shutter
InterfaceUSB 3.0, compatible with USB 2.0
Speed210 fps @ 1280 × 1024 Bayer GB 8
Lens mountC-mount
Mono / colourColor

$219.00

Ships in 2-3 weeks

0.21 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CU013-A1UC 1.3MP Area Scan Camera, USB3. Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc. Supports Sequencer and multiple ISP functions to provide high-quality images.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CU013-A1UC
Brand	Hikrobot
Compatibility	USB3 Vision, GenlCam

Sensor and imaging

Sensor type	CMOS, global shutter
Pixel size	4.8 μm × 4.8 μm
Sensor size	1/2"
Resolution	1280 × 1024
Max. frame rate	210 fps @ 1280 × 1024 Bayer GB 8
Dynamic range	54.2 dB
SNR	40.3 dB
Gain	0 dB to 16 dB
Exposure time	30 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Color
Pixel format	Mono 8/10/12; Bayer GB 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	USB 3.0, compatible with USB 2.0
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2).
Client software	MVS or third-party software meeting with USB3 Vision Protocol

Environment and compliance

Ingress protection	IP30 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Window 11, and 32/64-bit Linux

Electrical

Power supply	9 VDC to 24 VDC, supports USB power supply
Power consumption	Typ. 2.1 W @ 5 VDC; (USB 3.0 provides power supply)

Mechanical

Lens mount	C-mount
Dimension	29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
Weight	Approx. 76 g (0.2 lb.)
Shipping weight (estimated)	0.21 kg

Downloads

Features

Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc.
Supports Sequencer and multiple ISP functions to provide high-quality images.
Supports customized ROI, horizontal and vertical reverse image output.
Adopts compact design for flexible installation.
Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
