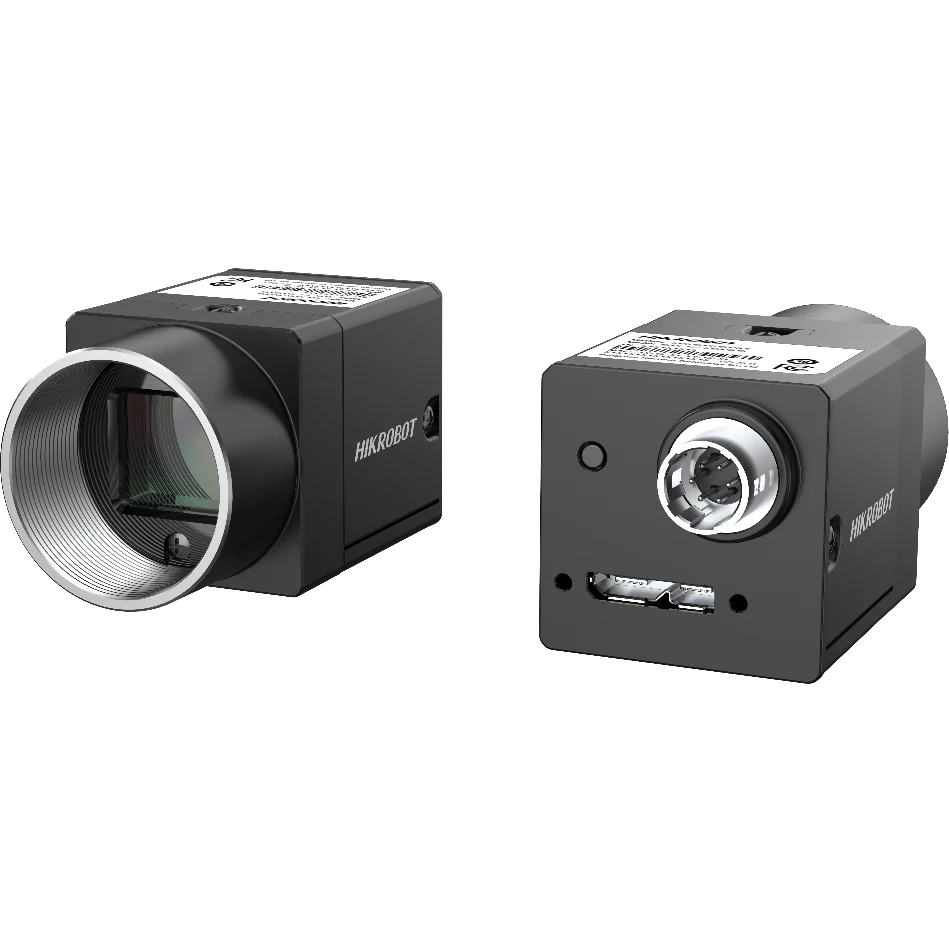

Hikrobot MV-CU050-90UC 5MP Area Scan Camera, USB3, GMAX2505, Color

Model MV-CU050-90UCHikrobot

Resolution2600 × 2160
SensorCMOS, global shutter
InterfaceUSB3.0, compatible with USB2.0
Speed59.8 fps @2600 × 2160 Bayer BG 8
Lens mountC-mount
Mono / colourColor

$339.00

Quote

Quoted price: add to quote for lead time and volume pricing.

End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.

Ships in 2-3 weeks

0.23 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CU050-90UC 5MP Area Scan Camera, USB3, GMAX2505, Color. Adopts brand new design to reduce power consumption. Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CU050-90UC
Brand	Hikrobot
Compatibility	USB3 Vision, GenlCam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	GMAX2505
Pixel size	2.5 μm × 2.5 μm
Sensor size	1/2"
Resolution	2600 × 2160
Max. frame rate	59.8 fps @2600 × 2160 Bayer BG 8
Dynamic range	63.9 dB
SNR	37 dB
Gain	0 dB to 12 dB
Exposure time	3 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Color
Pixel format	Bayer BG 8/10/10Packed/12/12Packed
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	USB3.0, compatible with USB2.0
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
Client software	MVS or third-party software meeting with USB3 Vision Protocol

Environment and compliance

Ingress protection	IP30 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity	20% to 80% RH, non-condensing
Certification	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS

Electrical

Power supply	9 VDC to 24 VDC, supports USB3.0 power supply
Power consumption	Typ. 2.2 W@5 VDC; (USB3.0 provides power supply)

Mechanical

Lens mount	C-mount

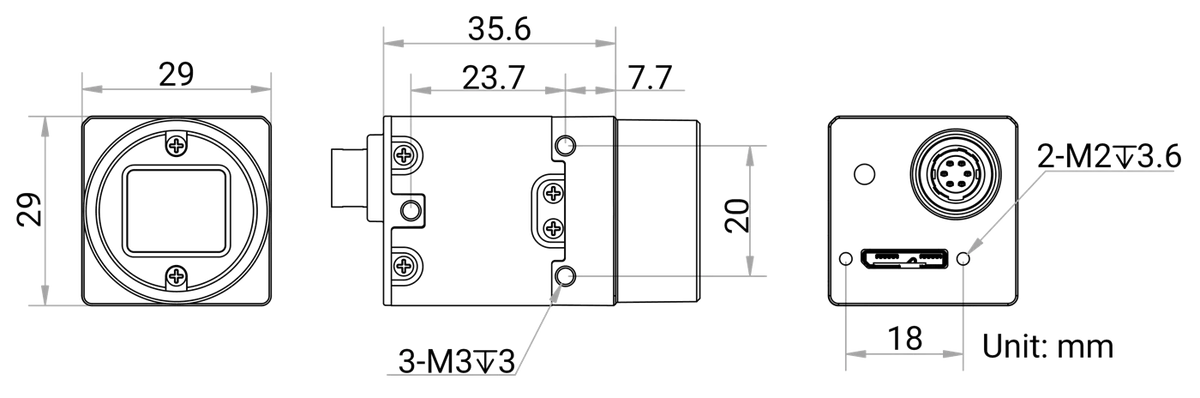

Dimension	29 mm × 29 mm × 35.6 mm (1.1" × 1.1" × 1.4")
Weight	Approx. 94 g (0.2 lb.)
Shipping weight (estimated)	0.23 kg

Downloads

Features

Adopts brand new design to reduce power consumption.
Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc.
Supports customized ROI, horizontal and vertical reverse image output.
Adopts compact design for flexible installation.
Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
