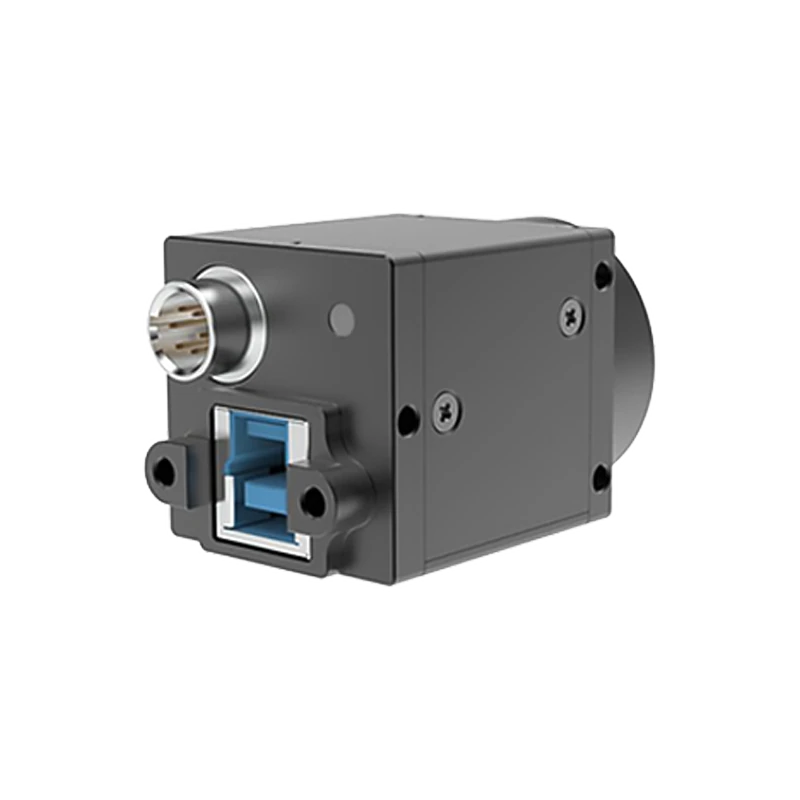

USB3.0 area scan camera, LS-CMR-S22 series

Area scan cameras

USB3.0 area scan camera, LS-CMR-S22 series

  • 23 models
  • from $219.00
  • Series LS-CMR-S22

The USB3.0 area scan camera, LS-CMR-S22 series is a range of 23 area scan cameras from LumaSpec Vision, from $219.00. It comes in 17 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 23 models Series datasheet (PDF)

The series at a glance

Sizes / versions
0.3 MP, USB3, Color/Mono, 0.4 MP, USB3, Color/Mono, 1.2 MP, USB3, Color, 1.3 MP, USB3, Color/Mono, 1.3 MP, USB3, Mono, 1.9 MP, USB3, Color/Mono, 2.3 MP, USB3, Color/Mon0, 2.3 MP, USB3, Color/Mono, 3.1 MP, USB3, Color/Mono, 5.0 MP, USB3, Color/Mono, 5.3 MP, USB3, Color/Mono, 6.4 MP, USB3, Color/Mono, 8.3 MP, USB3, Color/Mono, 10 MP, USB3, Color/Mono, 12 MP, USB3, Color/Mono, 16 MP, USB3, Color/Mono and 1 more
Interface
USB3
Resolution
Up to 3 MP, 5 MP, 6-10 MP, 12 MP, 16-25 MP
Shutter
Global, Rolling
Lens mount
C-mount, CS-mount
Sensor format
1/2.5" and smaller, 1/2", 1/1.8" - 1/1.56", 2/3", 1/1.2", 1"
Colour
Color, Mono

Features

  • Programmable IO, supports external trigger and flash synchronous photography
  • Supports 16bit gray and 48bit color lossless format output
  • 0.3MP to 20MP CMOS, multiple global shutter cameras available
  • One computer can connect multiple cameras and work stably for a long time without dropping frames
  • Fully compatible with the GigE camera SDK, seamless replacement
  • Supports PC Linux and ARM Linux, can be integrated into embedded devices
  • Supports vision protocols; compatible with Halcon, VisionPro, LabVIEW and other vision software
  • Camera comes with programmable IO.

Typical uses

  • Electronic 3C
  • Semiconductor automation
  • Logistics code scanning
  • Intelligent transportation
  • Biomedicine
  • Packaging and printing

All 23 models in the USB3.0 area scan camera, LS-CMR-S22 series

Link
LS-CMR-03310.3 MP, USB3, Color/Mono640×480@791FPS7911/5.6"$219.00View
LS-CMR-03320.3 MP, USB3, Color/Mono640×480@454FPS4541/4"$219.00View
LS-CMR-03330.4 MP, USB3, Color/Mono720×540@523.75FPS523.751/2.9"$219.00View
LS-CMR-03455.0 MP, USB3, Color/Mono2592x1944@59FPS591/2.5"$239.00View
LS-CMR-03465.3 MP, USB3, Color/Mono2592×2048@42.75FPS42.752/3"$259.00View
LS-CMR-03476.4 MP, USB3, Color/Mono3088×2064@59.5FPS59.51/1.8"$269.00View
LS-CMR-03488.3 MP, USB3, Color/Mono3840x2160@45.75FPS45.751/1.8"$269.00View
LS-CMR-03371.3 MP, USB3, Color/Mono1280×1024@241.5FPS241.51/2.7"$359.00View
LS-CMR-03381.3 MP, USB3, Color/Mono1280X1024@211FPS216.251/2"$359.00View
LS-CMR-03351.3 MP, USB3, Mono30$359.00View
LS-CMR-03341.3 MP, USB3, Mono61$359.00View
LS-CMR-03361.2 MP, USB3, Color72.25$359.00View
LS-CMR-034910 MP, USB3, Color/Mono3664X2748@8FPS81/2.3"$379.00View
LS-CMR-035012 MP, USB3, Color/Mono4000×3000@32FPS321/1.7"$379.00View
LS-CMR-03391.9 MP, USB3, Color/Mono1600×1200@60FPS601/1.8"$439.00View
LS-CMR-03402.3 MP, USB3, Color/Mono1920×1200@165.5FPS165.52/3"$469.00View
LS-CMR-03412.3 MP, USB3, Color/Mon01920x1200@165FPS165.251/1.2"$469.00View
LS-CMR-03422.3 MP, USB3, Color/Mono1920×1200@40FPS401/1.2"$469.00View
LS-CMR-035116 MP, USB3, Color/Mono4608X3456@12FPS121/2.3"$479.00View
LS-CMR-03433.1 MP, USB3, Color/Mono2048×1536@55.75FPS55.751/1.8"$519.00View
LS-CMR-035220 MP, USB3, Color/Mono[email protected]19.51"$569.00View
LS-CMR-035320 MP, USB3, Color/Mono5488x3672@19FPS191"$569.00View
LS-CMR-03445.0 MP, USB3, Color/Mono2448×2048@40.5FPS40.52/3"$689.00View
