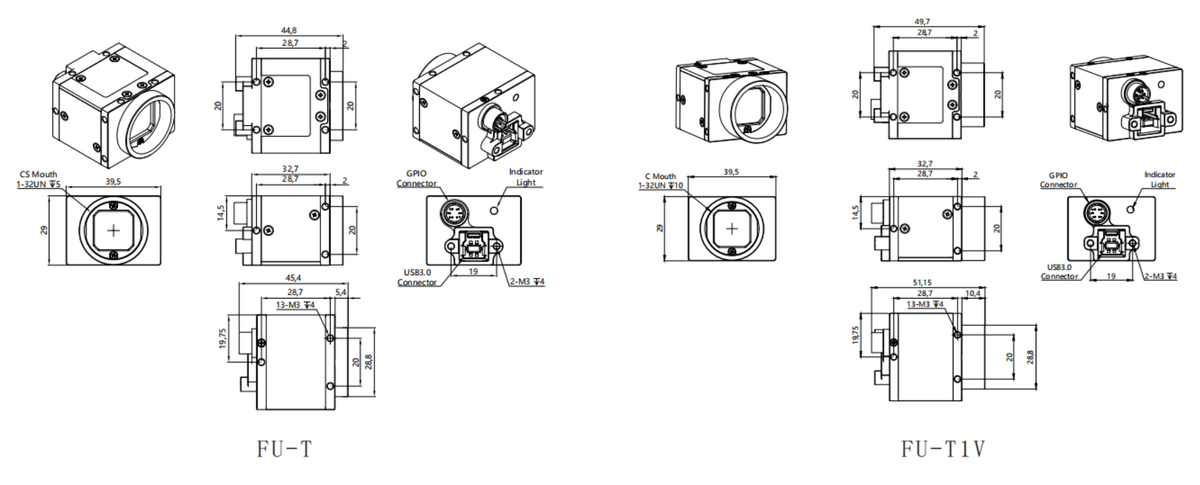

  • LS-CMR-0379 dimensions (mm)

Area scan cameras

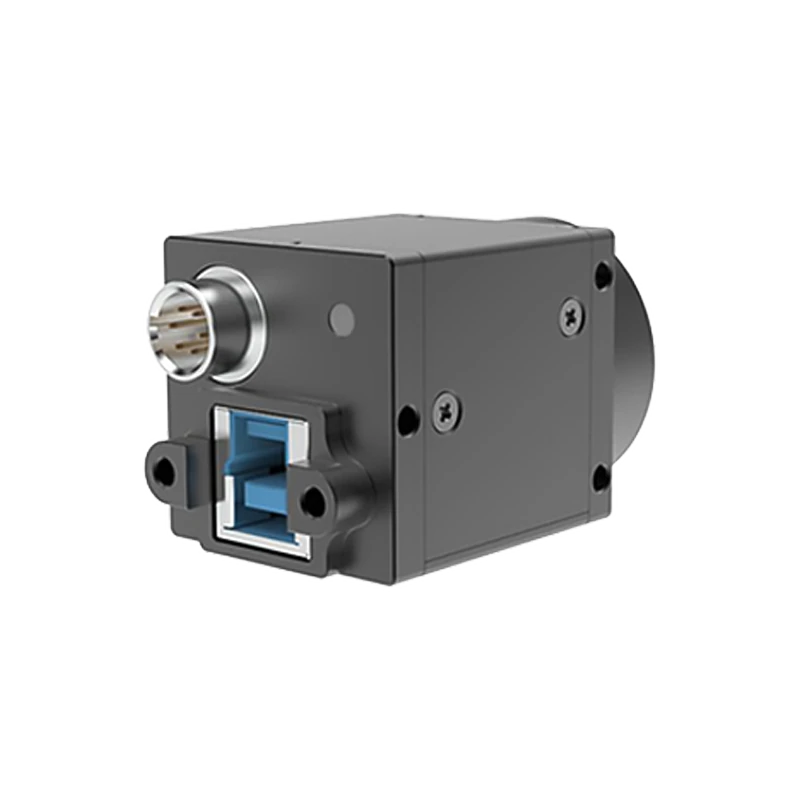

USB3.0 area scan camera, LS-CMR-S28 series, 8.8 MP, USB3, Color/Mono (LS-CMR-0379)

Model LS-CMR-0379

  • Resolution4096×2160
  • SensorCMOS
  • InterfaceUSB3.0
  • Speed32
  • Lens mountC-mount
  • Pixel size3.45μm
$1,489.00

Ships in 2-3 weeks

0.24 kg shipping weight

Sensor

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

USB3.0 area scan camera, LS-CMR-S28 series, 8.8 MP, USB3, Color/Mono (LS-CMR-0379)LS-CMR-0379

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

USB3.0 area scan cameras with 5Gbps transmission bandwidth and high-speed sensors: a 0.3MP camera reaches 800 fps with a minimum transmission time of 1.2 ms and a 20MP camera reaches 18fps; one computer can run multiple cameras at high frame rate. Low CPU utilization through DMA transmission. Widely used in electronic 3C, semiconductor automation, logistics code scanning, intelligent transportation, biomedicine, packaging and printing.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0379
Vision standardUSB3Vision 1.0, GenICam
DriverDirectshow component Halcon special component Labview special driver OCX component TWAIN component
Programming language packC/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Other functionsSupport any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc.
Tailpiece suffix options (AU/FU/CU/2SU)T1V-C: line sequence definition 1, 12V power supply, power supply shrapnel type aircraft head, C-mount, Recommend; -T: line sequence definition 2, aircraft head, CS-mount, planned shutdown; -T-C: line sequence definition 2, aircraft head, C-mount, planned shutdown; -TV-C: line sequence definition 3, 12V power supply, aircraft head, C-mount, planned shutdown
Sensitivity1146 mV/915mV
SynchronizationContinuous/software trigger/hardware trigger
Filter650nm infrared cut-off filter is standard/Standard double-sided AR anti-reflection film
Frame buffer128M Bytes
Camera custom data2K Bytes
DriversDirectshow component Halcon Dedicated Component Labview Dedicated Driver OCX Component TWAIN component
Programming language packageC/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Acquisition modeContinuous/soft trigger/hard trigger
User-defined data area2K Bytes

Sensor and imaging

E ff ective pixels8.9MP
SensorCMOS
ShutterGlobal
Max resolution4096×2160
Pixel size3.45μm
Frame rate (FPS)32
Mini exposure0.0141ms
Sensor modelIMX267
Sensor1" CMOS
Pixel size3.45X3.45μm
Resolution @ frame rate4096X2160@32FPS
Pixel bit depth12bit
Maximum gain249.9
Exposure time (ms)0.034~29546.9
Pixels8.9MP
Sensor typeCMOS
Shutter methodGlobal
Maximum resolution4096×2160
Minimum exposure0.0141ms
Pixel size (detail)3.45μm×3.45μm
Maximum gain (multiple)250
Exposure time range (ms)0.0141~29546.9
Sensor format1"

Interfaces and I/O

Data interfaceUSB3.0
Connector pinout -T1V-C (Port A)1 Red PWR+ (camera power input positive); 2 White GPI1+/TRIG_IN+ (default trigger input); 3 Brown GPI2/GPO2 (non-isolated bidirectional IO); 4 Green GPO1+/STRB_OUT+ (default flash output); 5 Yellow GPO1-/STRB-OUT-/TRIG_IN- (GPIO common negative terminal); 6 Black PWRGND
Connector pinout -T, -T-C1 Green GPO1+/STRB_OUT+ (default flash output); 2 Yellow GPO1-/STRB_OUT- (default flash output); 3 White GPI1+/TRIG_IN+ (default trigger input); 4 Brown GPI1-/TRIG_IN- (default trigger input); 5 Red GPO2+; 6 Black GPO2
Connector pinout -TV-C (Port A)1 Green GPO1+/STRB_OUT+; 2 Yellow GPO1-/STRB_OUT; 3 White GPI1+/TRIG_IN+; 4 Brown GPI1-/TRIG_IN-; 5 Red PWR+; 6 Black PWRGND
GPIO1 trigger input, one flash control output;1 GPO output
Video output formatBayer8/Mono8
Visual standard protocolUSB3Vision 1.0, GenICam

Light

ColorColor/Mono
ColourColor/Mono
Mono / colourColor/Mono

Environment and compliance

Working temperature @ humidity0~50℃ @ 20%~80% (no condensation)
Storage temperature @ humidity-30~60℃ @ 20%~95% (no condensation)
Working temperature0~50°
Storage temperature-30~60°

Computing

Operating systemWIINXP, WIN7/8/10 32@64-bit system, Linux and ARM Linux driver (customizable), Android platform driver (customizable)

Electrical

Power supply5V,USB Bus power supply
Power<4.2W
Voltage5V,USB Bus power supply

Mechanical

Target size1"
Lens mountC
Dimensions29(mm)X39.5(mm)X32.7(mm) (Excluding the lens base and rear case interface)
Weight100g
