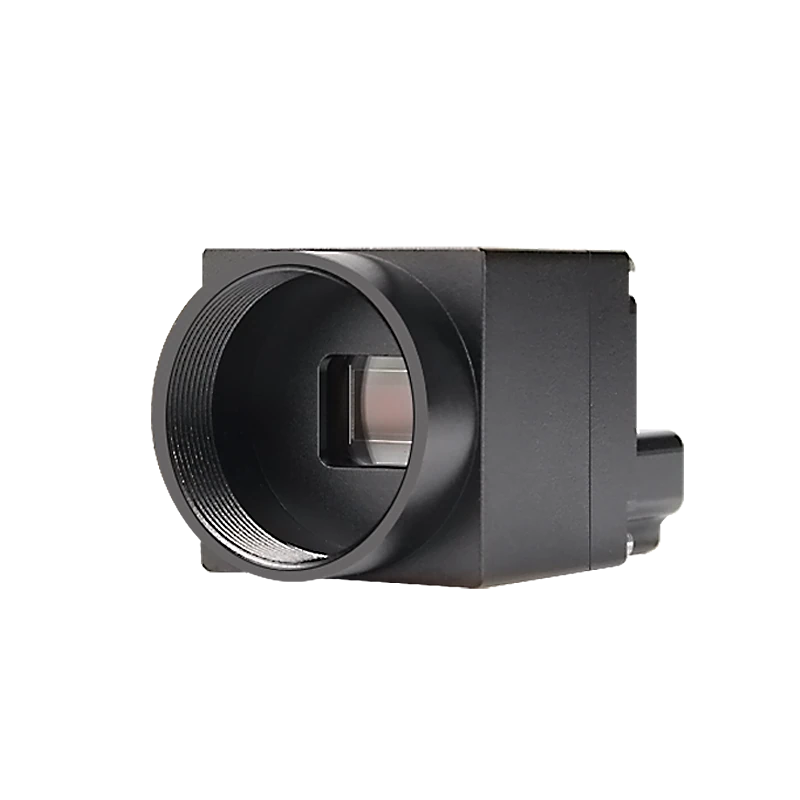

Representative photo of this series
Area scan cameras
USB2.0 area scan camera, 5.0 MP, USB 2.0, Color/Mono (LS-CMR-0467)
Model LS-CMR-0467
- Resolution2592*1944
- InterfaceUSB2.0
- Speed7.9FPS
- Lens mountC-mount
- Pixel size2.2 μm
$209.00
Ships in 2-3 weeks
0.59 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
This series of USB2.0 area scan cameras includes color and monochrome, global and rolling shutter.Extremely cost-effective,ultra-low power consumption.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0467 |
|---|
Sensor and imaging
| Resolution | 2592*1944 |
|---|---|
| Pixel size | 2.2 μm |
| Shutter | Rolling |
| Frame rate | 7.9FPS |
| Sensor | 1/2.5" |
Interfaces and I/O
| Data interface | USB2.0 |
|---|
Light
| Color/Mono | Color/Mono |
|---|---|
| Mono / colour | Color/Mono |
Mechanical
| Target size | 1/2.5" |
|---|---|
| Lens mount | C |
| Shipping weight | 0.59 kg |
Other models in the USB2.0 area scan camera (LS-CMR-S35) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CMR-0466 | 5.0 MP, USB 2.0, Color | $209.00 | Ships in 2-3 weeks | View |
| LS-CMR-0464 | 1.3 MP, USB 2.0, Color/Mono | $299.00 | Ships in 2-3 weeks | View |
| LS-CMR-0465 | 1.3 MP, USB 2.0, Mono | $299.00 | Ships in 2-3 weeks | View |
