USB2.0 area scan camera (U2 series)

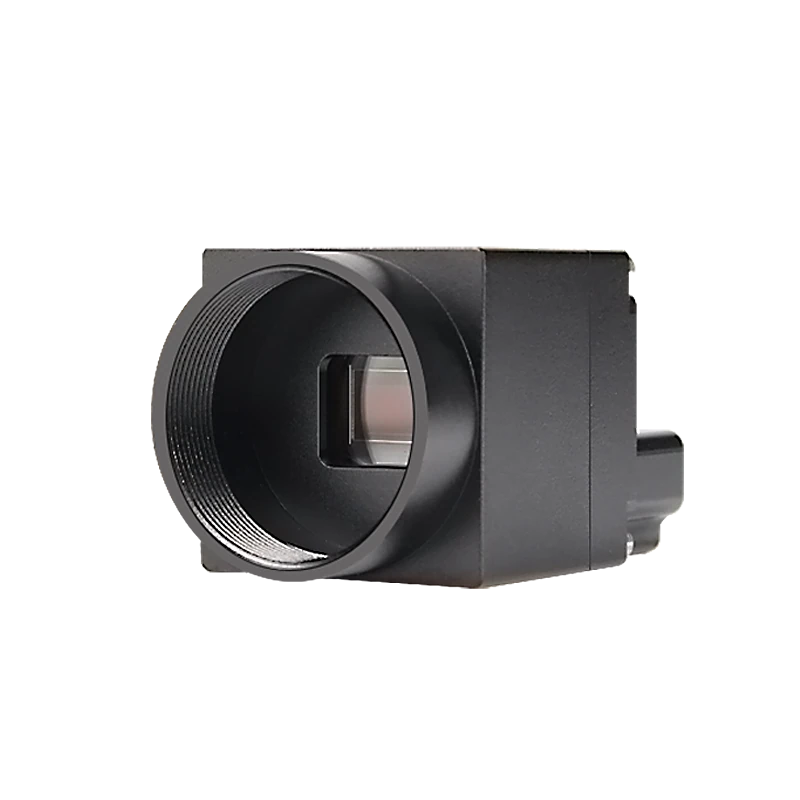

  • USB2.0 area scan camera (U2 series)

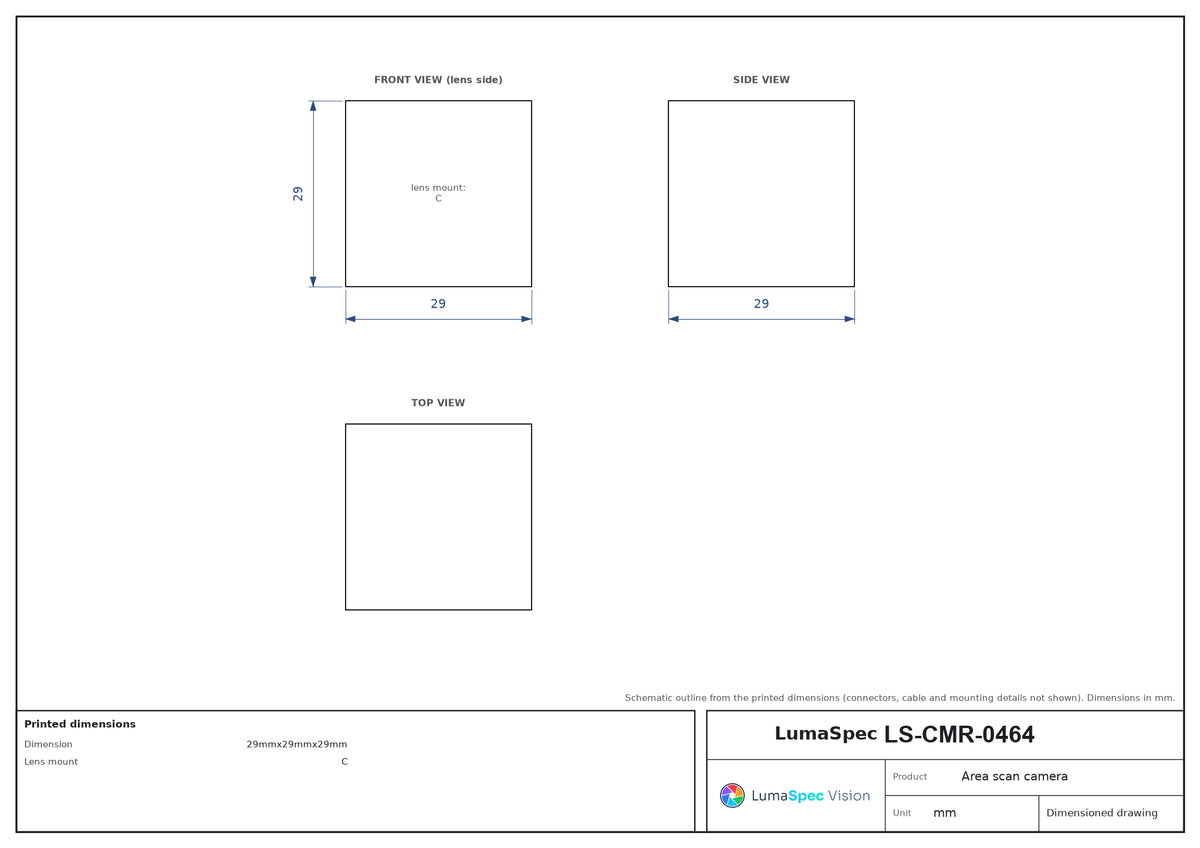

  • LS-CMR-0464 dimensions (mm)

Area scan cameras

USB2.0 area scan camera, 1.3 MP, USB 2.0, Color/Mono (LS-CMR-0464)

Model LS-CMR-0464

  • Resolution1280*1024
  • SensorGlobal Shutter
  • InterfaceUSB2.0
  • Speed30FPS
  • Lens mountC-mount
  • Mono / colourColor/Mono
$299.00

Ships in 2-3 weeks

0.16 kg shipping weight

Sensor

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

USB2.0 area scan camera, 1.3 MP, USB 2.0, Color/Mono (LS-CMR-0464)LS-CMR-0464

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

This series of USB2.0 area scan cameras includes color and monochrome, global and rolling shutter.Extremely cost-effective,ultra-low power consumption.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0464
Sensitivity6V/Lux.S
SUM640x512 30FPS
Spectral responseColor:390nm-650nm, Mono:390nm-1050nm
Photo support formatsRAW, BMP, JPEG, PNG
CompatibilityUSB2.0Vision,GenlCam,HALCON,LabView,OpenCV

Sensor and imaging

Resolution1280*1024
Pixel size4.0 μm
ShutterGlobal
Frame rate30FPS
Sensor typeGlobal Shutter
Mono/colorColor/Mono
Max Frame Rate30FPS
GainGain:1-4times,step size:0.125times
Dynamic range58db
Exposure time2us-128ms
SNRColor:34.3db, Mono:38.4db

Interfaces and I/O

Data interfaceUSB2.0
Lens interfaceC-Mount

Light

Color/MonoColor/Mono
Mono / colourColor/Mono

Environment and compliance

TemperatureOperating temperature:-10℃~50℃
Humidity5% ~ 90%RH (non-condensing)
CertificationsCE,FCC,RoHS

Electrical

Output Image FormatMONO8, RAW8, MONO16
Trigger modeSoftware Trigger
Power supplyUSB5V power supply
Typical Power Consumption<1.2W
IP Protection RatingIP30
VoltageUSB5V power supply

Mechanical

Target size1/2.7"
Lens mountC
Optical Size1/2.7"
Dimension29mmx29mmx29mm
Weight<42g
