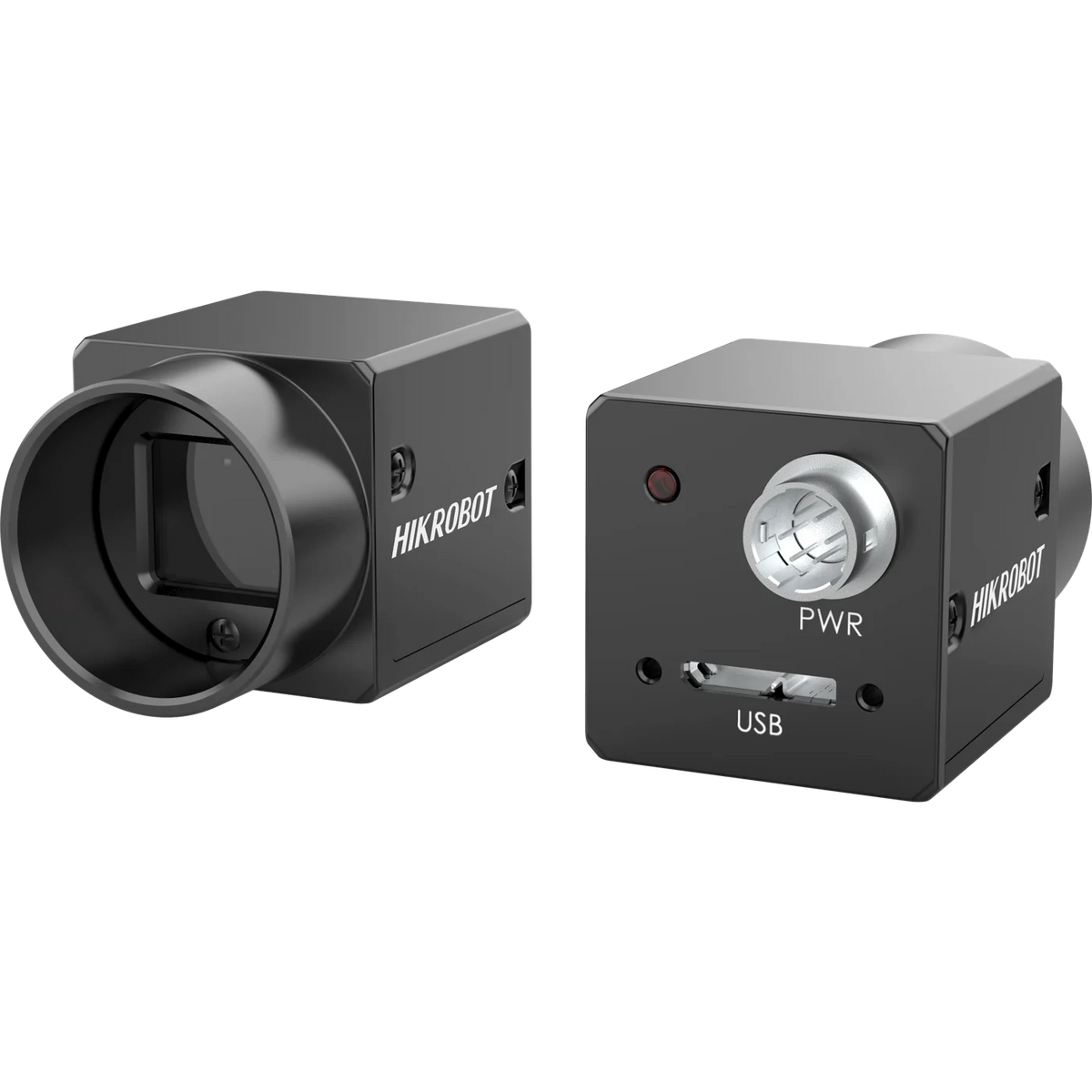

Hikrobot MV-CE050-30UC 5MP Area Scan Camera, USB3, AR0521, Color
Model MV-CE050-30UCHikrobot
- Resolution2592 × 1944
- SensorCMOS, rolling shutter
- InterfaceUSB3.0, compatible with USB2.0
- Speed44.7 fps @ 2592 × 1944
- Lens mountC-mount
- Mono / colourColor
$269.00
Quoted price: add to quote for lead time and volume pricing.
End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.
Ships in 2-3 weeks
0.18 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-CE050-30UC 5MP Area Scan Camera, USB3, AR0521, Color. Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc. Supports hardware triggering, software triggering and free run mode.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-CE050-30UC |
|---|---|
| Brand | Hikrobot |
| Compatibility | USB3 Vision, GenlCam |
Sensor and imaging
| Sensor type | CMOS, rolling shutter |
|---|---|
| Sensor model | Aptina AR0521 |
| Pixel size | 2.2 μm × 2.2 μm |
| Sensor size | 1/2.5" |
| Resolution | 2592 × 1944 |
| Max. frame rate | 44.7 fps @ 2592 × 1944 |
| Dynamic range | 60 dB |
| SNR | 40 dB |
| Gain | 0 dB to 15 dB |
| Exposure time | 28 μs to 0.6 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Mono 8/10/12; Bayer GR 8/10/10p/12/12p; YUV422_YUYV_Packed, YUV 422 Packed, RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Image buffer | 128 MB |
Interfaces and I/O
| Data interface | USB3.0, compatible with USB2.0 |
|---|---|
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1; (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2) |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
Environment and compliance
| Ingress protection | IP30 (under correct lens installation and wiring) |
|---|---|
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Certification | CE, RoHS, KC |
Computing
| Operating system | 32/64-bit Windows 7/10, 32/64-bit Linux |
|---|
Electrical
| Power supply | 12 VDC; supports USB3.0 power supply |
|---|---|
| Power consumption | Typ. 2.5 W @ 5 VDC (USB3.0 provides power supply) |
Mechanical
| Lens mount | C-mount |
|---|---|
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 56 g (0.12 lb.) |
| Shipping weight (estimated) | 0.18 kg |
