Hikrobot MV-CE120-10UC 12MP Area Scan Camera, USB3, IMX226, Color
Model MV-CE120-10UCHikrobot
- Resolution4000 × 3036
- SensorCMOS, rolling shutter
- InterfaceUSB3.0, compatible with USB2.0
- Speed31.9 fps @4000 × 3036
- Lens mountC-mount
- Mono / colourColor
$499.00
Quoted price: add to quote for lead time and volume pricing.
End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.
Ships in 2-3 weeks
0.21 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-CE120-10UC 12MP Area Scan Camera, USB3, IMX226, Color. Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc. Supports hardware triggering, software triggering and free run mode.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-CE120-10UC |
|---|---|
| Brand | Hikrobot |
| Compatibility | USB3 Vision, GenICam |
Sensor and imaging
| Sensor type | CMOS, rolling shutter |
|---|---|
| Sensor model | Sony® IMX226 |
| Pixel size | 1.85 μm × 1.85 μm |
| Sensor size | 1/1.7" |
| Resolution | 4000 × 3036 |
| Max. frame rate | 31.9 fps @4000 × 3036 |
| Dynamic range | 70.5 dB |
| SNR | 40.5 dB |
| Gain | 0 dB to 27 dB |
| Exposure time | 30 μs to 0.5 sec |
| Exposure mode | Off/Once/Continuous exposure mode, supports Rolling and Global Reset |
| Pixel format | Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
| Binning | Not support |
| Decimation | Not support |
| Reverse image | Supports horizontal and vertical reverse image output |
| Image buffer | 128 MB |
| Mono/color | Color |
Interfaces and I/O
| Data interface | USB3.0, compatible with USB2.0 |
|---|---|
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2) |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
Environment and compliance
| Ingress protection | IP30 (under proper lens installation and wiring) |
|---|---|
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 80% RH, non-condensing |
| Certification | CE, FCC, RoHS, KC |
Computing
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
|---|
Electrical
| Power supply | 9 VDC to 24 VDC, USB3.0 power supply |
|---|---|
| Power consumption | Typ. 3.42 W@5 VDC; (USB3.0 provides power supply) |
Mechanical
| Lens mount | C-mount |
|---|---|

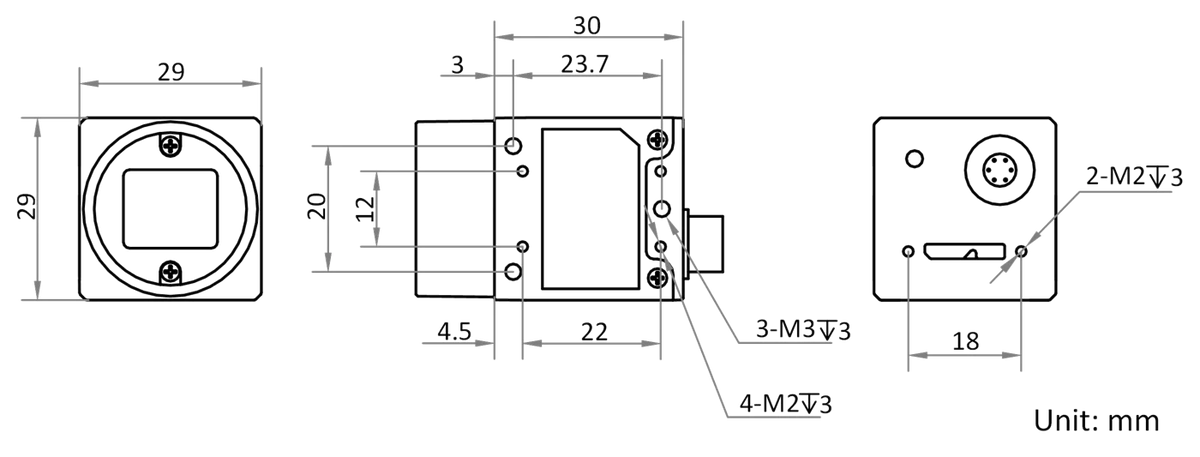

| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.2 lb.) |
| Shipping weight (estimated) | 0.21 kg |
