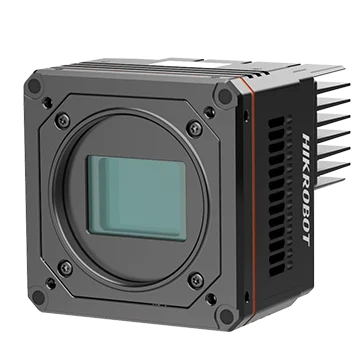

Hikrobot MV-CH210-90YM-M58S-NN 21MP Area Scan Camera, Gsprint4521, CXP-12, M58-mount, Fanless, Mono
  • Hikrobot MV-CH210-90YM-M58S-NN 21MP Area Scan Camera, Gsprint4521, CXP-12, M58-mount, Fanless, Mono

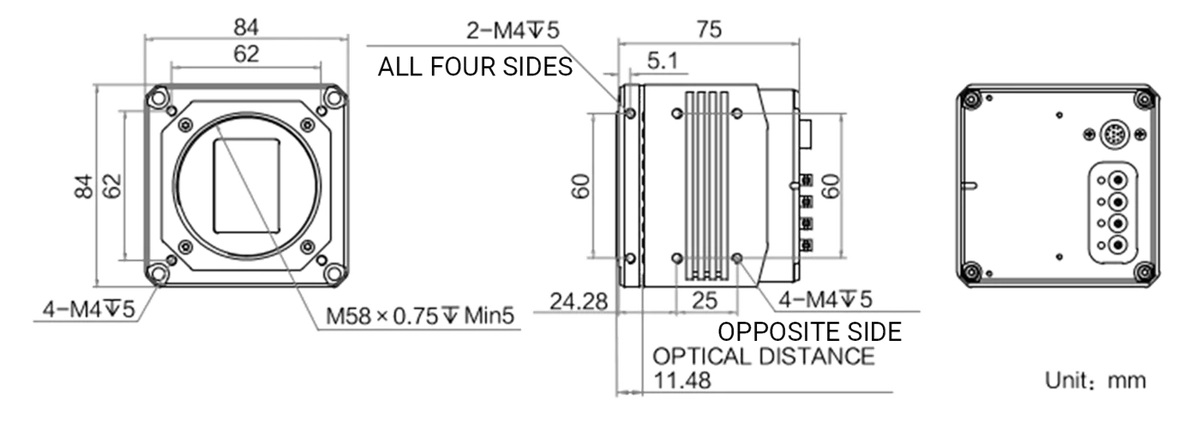

  • MV-CH210-90YM-M58S-NN dimensions (mm)

Area scan cameras

Hikrobot MV-CH210-90YM-M58S-NN 21MP Area Scan Camera, Gsprint4521, CXP-12, M58-mount, Fanless, Mono

Model MV-CH210-90YM-M58S-NNHikrobot

  • Resolution5120 × 4096
  • SensorCMOS, global shutter
  • InterfaceCoaXPress with Micro-BNC interface
  • Speed222 fps @ 5120 × 4096 Mono 8
  • Lens mountM58
  • Mono / colourMono
$9,819.00
List price

Ships in 2-3 weeks

1.21 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Available in the US - comparable cameras:

Ask an engineerBrowse Area scan cameras

MV-CH210-90YM-M58S-NN: resolution 5120 x 4096; sensor type CMOS, global shutter; sensor size 23.04 mm x 18.43 mm; max. frame rate 222 fps @ 5120 x 4096 Mono 8.

Hikrobot MV-CH210-90YM-M58S-NN 21MP Area Scan Camera, Gsprint4521, CXP-12, M58-mount, Fanless, Mono. Resolution of 5120 × 4096, and pixel size of 4.5 µm × 4.5 µm. Adopts global shutter CMOS to provide high dynamic range, SNR, and high-quality images.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CH210-90YM-M58S-NN
BrandHikrobot
CompatibilityCoaXPress, GenICam

Sensor and imaging

Sensor typeCMOS, global shutter
Sensor modelGpixel Gsprint4521
Pixel size4.5 μm × 4.5 μm
Sensor size23.04 mm × 18.43 mm
Resolution5120 × 4096
Max. frame rate222 fps @ 5120 × 4096 Mono 8
Dynamic range65 dB
SNR43 dB
Gain1.0 ×, 2.0 ×, 4.0 ×
Exposure time4 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/12
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceCoaXPress with Micro-BNC interface
Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Client softwareMVS or frame grabber software meeting with CoaXPress Protocol

Environment and compliance

Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating system32/64-bit Windows 7/10, 64-bit Windows 11

Electrical

Power supply12 VDC to 24 VDC, CXP-0 and CXP-1 connectors support PoCXP
Power consumptionTyp. 18 W @ 24 VDC

Mechanical

Lens mountM58*0.75
DimensionWith fan: 84 mm × 84 mm × 75 mm (3.3" × 3.3" × 3.0"); Without fan: 84 mm × 84 mm × 92.5 mm (3.3" × 3.3" × 3.6")
WeightWith fan: Approx. 790 g (1.7 lb.); Without fan: Approx. 650 g (1.4 lb.)
Shipping weight (estimated)1.21 kg

Engineering data

Field of view and resolution with the MV-CH210-90YM-M58S-NN

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area23.04 × 18.43 mmAPS-C optical format
Lens image circle needed≥ Ø 29.5 mmM58
Pixel pitch4.5 µm5120 x 4096 px
Image data at max frame rate4656 MB/sCalculated: 222 fps × 5120 × 4096 px at 8 bit
With a 35 mm lens at 500 mm329 × 263 mm0.064 mm per pixel
Dynamic range65 dB
SNR43 dB
Power consumption18 Wtyp. at 24 V DC
ShutterGlobal
Exposure range4 µs to 10 s
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
16 mm432 × 346 mm0.084 mm per pixel720 × 576 mm0.141 mm per pixel1440 × 1152 mm0.281 mm per pixel
25 mm276 × 221 mm0.054 mm per pixel461 × 369 mm0.09 mm per pixel922 × 737 mm0.18 mm per pixel
35 mm197 × 158 mm0.039 mm per pixel329 × 263 mm0.064 mm per pixel658 × 527 mm0.129 mm per pixel
50 mm138 × 111 mm0.027 mm per pixel230 × 184 mm0.045 mm per pixel461 × 369 mm0.09 mm per pixel
75 mm92.2 × 73.7 mm0.018 mm per pixel154 × 123 mm0.03 mm per pixel307 × 246 mm0.06 mm per pixel
100 mm69.1 × 55.3 mm0.014 mm per pixel115 × 92.2 mm0.022 mm per pixel230 × 184 mm0.045 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

Lenses for this M58 camera

Covers up to 46 mm diagonal; this camera's sensor is 29.5 mm

Covers up to 42 mm diagonal; this camera's sensor is 29.5 mm

Covers up to 46 mm diagonal; this camera's sensor is 29.5 mm

Covers up to 60 mm diagonal; this camera's sensor is 29.5 mm

Covers up to 46 mm diagonal; this camera's sensor is 29.5 mm

Covers up to 44 mm diagonal; this camera's sensor is 29.5 mm

Cables and frame grabbers

Other models in the CH Series CoaXPress Area Scan Cameras series

See all 66 models
ModelResolutionInterfaceSpeedPriceAvailabilityLink
MV-CH210-90YM-M58S-NNThis model5120 × 4096CoaXPress with Micro-BNC interface222 fps @ 5120 × 4096 Mono 8$9,819.00 Quote Ships in 2-3 weeks
MV-CH120-90X2C-C-NN4096 × 3072CoaXPress with DIN interface95 fps @ 4096 × 3072 Bayer GB 8$7,859.00 Quote Ships in 2-3 weeks View
MV-CH120-90Y1M-NH4096 × 3072CoaXPress with Micro-BNC interface93.9 fps @ 4096 × 3072 Mono 8$7,859.00 Quote Ships in 2-3 weeks View
MV-CH120-90Y1C-NH4096 × 3072CoaXPress with Micro-BNC interface93.9 fps @ 4096 × 3072 Bayer GB 8$7,859.00 Quote Ships in 2-3 weeks View
MV-CH120-90Y1M-NN4096 × 3072CoaXPress with Micro-BNC interface93.9 fps @ 4096 × 3072 Mono 8$7,859.00 Quote Ships in 2-3 weeks View
MV-CH120-90Y1C-NN4096 × 3072CoaXPress with Micro-BNC interface93.9 fps @ 4096 × 3072 Bayer GB 8$7,859.00 Quote Ships in 2-3 weeks View
MV-CH120-60Y1M-NN V24096 × 3072CoaXPress with Micro-BNC interface80 fps @ 4096 × 3072 Mono 8$7,859.00 Quote Ships in 2-3 weeks View
MV-CH120-60Y1C-NN V24096 × 3072CoaXPress with Micro-BNC interface80 fps @ 4096 × 3072 Bayer GB 8$7,859.00 Quote Ships in 2-3 weeks View
MV-CH120-90Y2M-C-NN4096 × 3008CoaXPress with Micro-BNC interfaces149 fps @ 4096 × 3008 Mono 8$7,859.00 Quote Ships in 2-3 weeks View
MV-CH120-90Y2C-C-NN4096 × 3008CoaXPress with Micro-BNC interfaces149 fps @ 4096 × 3008 Bayer GB 8$7,859.00 Quote Ships in 2-3 weeks View
MV-CH140-90XM-M58S-NN4608 × 3072CoaXPress with DIN interface169 fps @ 4608 × 3072 Mono 8$8,069.00 Quote Ships in 2-3 weeks View
MV-CH140-90YM-M58S-NF4608 × 3072CoaXPress with Micro-BNC interface339 fps @ 4608 × 3072 Mono 8$8,069.00 Quote Ships in 2-3 weeks View
MV-CH140-90YC-M58S-NF4608 × 3072CoaXPress with Micro-BNC interface339 fps @ 4608 × 3072 Bayer GR 8$8,069.00 Quote Ships in 2-3 weeks View
MV-CH210-90YC-M58S-NN5120 × 4096CoaXPress with Micro-BNC interface222 fps @ 5120 × 4096 Bayer GB 8$9,819.00 Quote Ships in 2-3 weeks View
MV-CH210-90YC-M58S-NF5120 × 4096CoaXPress with Micro-BNC interface222 fps @ 5120 × 4096 Bayer GB 8$9,819.00 Quote Ships in 2-3 weeks View
MV-CH250-20XM-M58S-NN5120 × 5120CoaXPress with DIN interface80 fps @ 5120 × 5120$10,399.00 Quote Ships in 2-3 weeks View
MV-CH250-20XC-M58S-NN5120 × 5120CoaXPress with DIN interface80 fps @ 5120 × 5120 Bayer RG 8$10,399.00 Quote Ships in 2-3 weeks View
MV-CH240-10YM-C-NN5312 × 4608CoaXPress with Micro-BNC interface191.7 fps @ 5312 × 4608 Mono 8$10,609.00 Quote Ships in 2-3 weeks View
MV-CH250-90XM-C-NN5120 × 5120CoaXPress with DIN interface41.5 fps @ 5120 × 5120 Mono 8$10,979.00 Quote Ships in 2-3 weeks View
MV-CH250-90XC-C-NN5120 × 5120CoaXPress with DIN interface41.5 fps @ 5120 × 5120 Bayer BG 8$10,979.00 Quote Ships in 2-3 weeks View
MV-CH250-90YM-C-NN5120 × 5120CoaXPress with micro-BNC interface150 fps @ 5120 × 5120 Mono 8$10,979.00 Quote Ships in 2-3 weeks View
MV-CH250-90YC-C-NN5120 × 5120CoaXPress with micro-BNC interface150 fps @ 5120 × 5120 Bayer BG 8$10,979.00 Quote Ships in 2-3 weeks View
MV-CH250-90YM-M58S-NN5120 × 5120CoaXPress with micro-BNC interface150 fps @ 5120 × 5120 Mono 8$10,979.00 Quote Ships in 2-3 weeks View
MV-CH250-90YC-M58S-NN5120 × 5120CoaXPress with micro-BNC interface150 fps @ 5120 × 5120 Bayer BG 8$10,979.00 Quote Ships in 2-3 weeks View
MV-CH250-90YN-C-NN5120 × 5120CoaXPress with micro-BNC interface150 fps @ 5120 × 5120 Mono 8$10,979.00 Quote Ships in 2-3 weeks View
