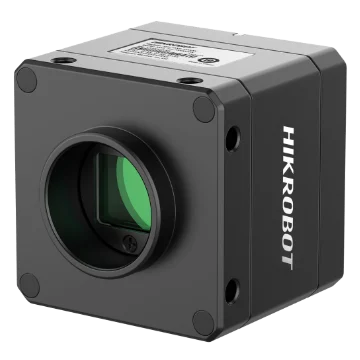

Hikrobot MV-CH120-90Y2M-C-NN 12MP Area Scan Camera, GMAX3412, 2-link CXP-12, C-mount, without fan, Mono
  • Hikrobot MV-CH120-90Y2M-C-NN 12MP Area Scan Camera, GMAX3412, 2-link CXP-12, C-mount, without fan, Mono

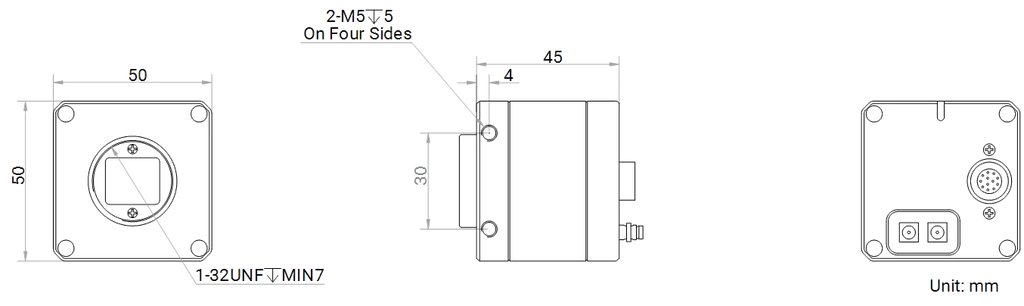

  • MV-CH120-90Y2M-C-NN dimensions (mm)

Area scan cameras

Hikrobot MV-CH120-90Y2M-C-NN 12MP Area Scan Camera, GMAX3412, 2-link CXP-12, C-mount, without fan, Mono

Model MV-CH120-90Y2M-C-NNHikrobot

  • Resolution4096 × 3008
  • SensorCMOS, global shutter
  • InterfaceCoaXPress with Micro-BNC interfaces
  • Speed149 fps @ 4096 × 3008 Mono 8
  • Lens mountC-mount
  • Mono / colourMono
$7,859.00
List price

Ships in 2-3 weeks

0.39 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Area scan cameras

MV-CH120-90Y2M-C-NN: resolution 4096 x 3008; sensor type CMOS, global shutter; sensor size 1.1"; max. frame rate 149 fps @ 4096 x 3008 Mono 8.

Hikrobot MV-CH120-90Y2M-C-NN 12MP Area Scan Camera, GMAX3412, 2-link CXP-12, C-mount, without fan, Mono. Resolution of 4096 × 3008, pixel size of 3.4 µm × 3.4 µm. Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality image.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CH120-90Y2M-C-NN
BrandHikrobot
CompatibilityCoaXPress, GenICam

Sensor and imaging

Sensor typeCMOS, global shutter
Sensor modelGpixel GMAX3412
Pixel size3.4 μm × 3.4 μm
Sensor size1.1"
Resolution4096 × 3008
Max. frame rate149 fps @ 4096 × 3008 Mono 8
Dynamic range59.8 dB
SNR38.9 dB
Gain0 dB to 6.1 dB
Exposure time6 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/12
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceCoaXPress with Micro-BNC interfaces
Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Client softwareMVS or frame grabber software meeting with CoaXPress Protocol

Environment and compliance

Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supply9 VDC to 24 VDC, CXP-0 supports PoCXP
Power consumptionTyp. 6.1 W @ 12 VDC

Mechanical

Lens mountC-mount
Dimension50 mm × 50 mm × 45 mm (2.0" × 2.0" × 1.8")
WeightApprox. 207 g (0.5 lb.)
Shipping weight (estimated)0.39 kg

Engineering data

Field of view and resolution with the MV-CH120-90Y2M-C-NN

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area13.93 × 10.23 mm1.1" optical format
Lens image circle needed≥ Ø 17.3 mmC-mount
Pixel pitch3.4 µm4096 x 3008 px
Image data at max frame rate1836 MB/sCalculated: 149 fps × 4096 × 3008 px at 8 bit
With a 16 mm lens at 500 mm435 × 320 mm0.106 mm per pixel
Dynamic range59.8 dB
SNR38.9 dB
Power consumption6.1 Wtyp. at 12 V DC
ShutterGlobal
Exposure range6 µs to 10 s
Weight207 gapprox.
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
8 mm522 × 384 mm0.128 mm per pixel871 × 639 mm0.213 mm per pixel1741 × 1279 mm0.425 mm per pixel
12 mm348 × 256 mm0.085 mm per pixel580 × 426 mm0.142 mm per pixel1161 × 852 mm0.283 mm per pixel
16 mm261 × 192 mm0.064 mm per pixel435 × 320 mm0.106 mm per pixel871 × 639 mm0.213 mm per pixel
25 mm167 × 123 mm0.041 mm per pixel279 × 205 mm0.068 mm per pixel557 × 409 mm0.136 mm per pixel
35 mm119 × 87.7 mm0.029 mm per pixel199 × 146 mm0.049 mm per pixel398 × 292 mm0.097 mm per pixel
50 mm83.6 × 61.4 mm0.02 mm per pixel139 × 102 mm0.034 mm per pixel279 × 205 mm0.068 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.
