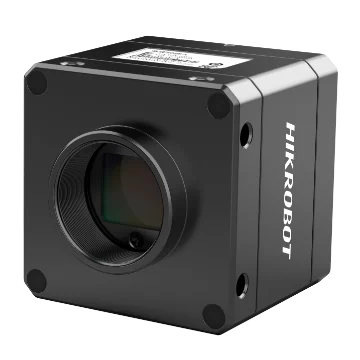

Hikrobot MV-CH250-90XM-C-NN 25MP Area Scan Camera, GMAX0505, CXP-6, Mono, C-mount, without fan
  • Hikrobot MV-CH250-90XM-C-NN 25MP Area Scan Camera, GMAX0505, CXP-6, Mono, C-mount, without fan
  • MV-CH250-90XM-C-NN dimensions (mm)

Area scan cameras

Hikrobot MV-CH250-90XM-C-NN 25MP Area Scan Camera, GMAX0505, CXP-6, Mono, C-mount, without fan

Model MV-CH250-90XM-C-NNHikrobot

  • Resolution5120 × 5120
  • SensorCMOS, global shutter
  • InterfaceCoaXPress with DIN interface
  • Speed41.5 fps @ 5120 × 5120 Mono 8
  • Lens mountC-mount
  • Mono / colourMono
$10,979.00
List price

Ships in 2-3 weeks

0.39 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Available in the US - comparable cameras:

Ask an engineerBrowse Area scan cameras

MV-CH250-90XM-C-NN: resolution 5120 x 5120; sensor type CMOS, global shutter; sensor size 1.1"; max. frame rate 41.5 fps @ 5120 x 5120 Mono 8.

Hikrobot MV-CH250-90XM-C-NN 25MP Area Scan Camera, GMAX0505, CXP-6, Mono, C-mount, without fan. Resolution of 5120 × 5120, pixel size of 2.5 µm × 2.5 µm. Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality image.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CH250-90XM-C-NN
BrandHikrobot
CompatibilityCoaXPress, GenICam

Sensor and imaging

Sensor typeCMOS, global shutter
Sensor modelGpixel GMAX0505
Pixel size2.5 μm × 2.5 μm
Sensor size1.1"
Resolution5120 × 5120
Max. frame rate41.5 fps @ 5120 × 5120 Mono 8
Dynamic range65 dB
SNR41 dB
Gain2.0 × to 5.0 ×
Exposure time13 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/12
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceCoaXPress with DIN interface
Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Client softwareMVS or frame grabber software meeting with CoaXPress Protocol

Environment and compliance

Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supply9 VDC to 24 VDC, CXP-1 supports PoCXP
Power consumptionTyp. 7.0 W @ 12 VDC

Mechanical

Lens mountC-mount
Dimension50 mm × 50 mm × 45 mm (2.0" × 2.0" × 1.8")
WeightApprox. 207 g (0.5 lb.)
Shipping weight (estimated)0.39 kg

Engineering data

Field of view and resolution with the MV-CH250-90XM-C-NN

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area12.8 × 12.8 mm1.1" optical format
Lens image circle needed≥ Ø 18.1 mmC-mount
Pixel pitch2.5 µm5120 x 5120 px
Image data at max frame rate1088 MB/sCalculated: 41.5 fps × 5120 × 5120 px at 8 bit
With a 16 mm lens at 500 mm400 × 400 mm0.078 mm per pixel
Dynamic range65 dB
SNR41 dB
Power consumption7.0 Wtyp. at 12 V DC
ShutterGlobal
Exposure range13 µs to 10 s
Weight207 gapprox.
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
8 mm480 × 480 mm0.094 mm per pixel800 × 800 mm0.156 mm per pixel1600 × 1600 mm0.312 mm per pixel
12 mm320 × 320 mm0.062 mm per pixel533 × 533 mm0.104 mm per pixel1067 × 1067 mm0.208 mm per pixel
16 mm240 × 240 mm0.047 mm per pixel400 × 400 mm0.078 mm per pixel800 × 800 mm0.156 mm per pixel
25 mm154 × 154 mm0.03 mm per pixel256 × 256 mm0.05 mm per pixel512 × 512 mm0.1 mm per pixel
35 mm110 × 110 mm0.021 mm per pixel183 × 183 mm0.036 mm per pixel366 × 366 mm0.071 mm per pixel
50 mm76.8 × 76.8 mm0.015 mm per pixel128 × 128 mm0.025 mm per pixel256 × 256 mm0.05 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

Lenses for this C-mount camera

Covers up to 17.6 mm diagonal; this camera's sensor is 18.1 mm

Covers up to 17.6 mm diagonal; this camera's sensor is 18.1 mm

Covers up to 17.6 mm diagonal; this camera's sensor is 18.1 mm

Covers up to 17.6 mm diagonal; this camera's sensor is 18.1 mm

Covers up to 17.6 mm diagonal; this camera's sensor is 18.1 mm

Covers up to 17.6 mm diagonal; this camera's sensor is 18.1 mm

Cables and frame grabbers

Other models in the CH Series CoaXPress Area Scan Cameras series

See all 66 models
ModelResolutionInterfaceSpeedPriceAvailabilityLink
MV-CH250-90XM-C-NNThis model5120 × 5120CoaXPress with DIN interface41.5 fps @ 5120 × 5120 Mono 8$10,979.00 Quote Ships in 2-3 weeks
MV-CH120-60Y1C-NN V24096 × 3072CoaXPress with Micro-BNC interface80 fps @ 4096 × 3072 Bayer GB 8$7,859.00 Quote Ships in 2-3 weeks View
MV-CH120-90Y2M-C-NN4096 × 3008CoaXPress with Micro-BNC interfaces149 fps @ 4096 × 3008 Mono 8$7,859.00 Quote Ships in 2-3 weeks View
MV-CH120-90Y2C-C-NN4096 × 3008CoaXPress with Micro-BNC interfaces149 fps @ 4096 × 3008 Bayer GB 8$7,859.00 Quote Ships in 2-3 weeks View
MV-CH140-90XM-M58S-NN4608 × 3072CoaXPress with DIN interface169 fps @ 4608 × 3072 Mono 8$8,069.00 Quote Ships in 2-3 weeks View
MV-CH140-90YM-M58S-NF4608 × 3072CoaXPress with Micro-BNC interface339 fps @ 4608 × 3072 Mono 8$8,069.00 Quote Ships in 2-3 weeks View
MV-CH140-90YC-M58S-NF4608 × 3072CoaXPress with Micro-BNC interface339 fps @ 4608 × 3072 Bayer GR 8$8,069.00 Quote Ships in 2-3 weeks View
MV-CH210-90YM-M58S-NN5120 × 4096CoaXPress with Micro-BNC interface222 fps @ 5120 × 4096 Mono 8$9,819.00 Quote Ships in 2-3 weeks View
MV-CH210-90YC-M58S-NN5120 × 4096CoaXPress with Micro-BNC interface222 fps @ 5120 × 4096 Bayer GB 8$9,819.00 Quote Ships in 2-3 weeks View
MV-CH210-90YC-M58S-NF5120 × 4096CoaXPress with Micro-BNC interface222 fps @ 5120 × 4096 Bayer GB 8$9,819.00 Quote Ships in 2-3 weeks View
MV-CH250-20XM-M58S-NN5120 × 5120CoaXPress with DIN interface80 fps @ 5120 × 5120$10,399.00 Quote Ships in 2-3 weeks View
MV-CH250-20XC-M58S-NN5120 × 5120CoaXPress with DIN interface80 fps @ 5120 × 5120 Bayer RG 8$10,399.00 Quote Ships in 2-3 weeks View
MV-CH240-10YM-C-NN5312 × 4608CoaXPress with Micro-BNC interface191.7 fps @ 5312 × 4608 Mono 8$10,609.00 Quote Ships in 2-3 weeks View
MV-CH250-90XC-C-NN5120 × 5120CoaXPress with DIN interface41.5 fps @ 5120 × 5120 Bayer BG 8$10,979.00 Quote Ships in 2-3 weeks View
MV-CH250-90YM-C-NN5120 × 5120CoaXPress with micro-BNC interface150 fps @ 5120 × 5120 Mono 8$10,979.00 Quote Ships in 2-3 weeks View
MV-CH250-90YC-C-NN5120 × 5120CoaXPress with micro-BNC interface150 fps @ 5120 × 5120 Bayer BG 8$10,979.00 Quote Ships in 2-3 weeks View
MV-CH250-90YM-M58S-NN5120 × 5120CoaXPress with micro-BNC interface150 fps @ 5120 × 5120 Mono 8$10,979.00 Quote Ships in 2-3 weeks View
MV-CH250-90YC-M58S-NN5120 × 5120CoaXPress with micro-BNC interface150 fps @ 5120 × 5120 Bayer BG 8$10,979.00 Quote Ships in 2-3 weeks View
MV-CH250-90YN-C-NN5120 × 5120CoaXPress with micro-BNC interface150 fps @ 5120 × 5120 Mono 8$10,979.00 Quote Ships in 2-3 weeks View
MV-CH250-90Y1M-NH5120 × 5120CoaXPress with Micro-BNC interface41.3 fps @ 5120 × 5120 Mono 8$10,979.00 Quote Ships in 2-3 weeks View
MV-CH250-90Y1C-NH5120 × 5120CoaXPress with Micro-BNC interface41.3 fps @ 5120 × 5120 Bayer BG 8$10,979.00 Quote Ships in 2-3 weeks View
MV-CH250-90Y1M-NN5120 × 5120CoaXPress with Micro-BNC interface41.3 fps @ 5120 × 5120 Mono 8$10,979.00 Quote Ships in 2-3 weeks View
MV-CH250-90Y1C-NN5120 × 5120CoaXPress with Micro-BNC interface41.3 fps @ 5120 × 5120 Bayer BG 8$10,979.00 Quote Ships in 2-3 weeks View
MV-CH250-90Y2M-C-NF5120 × 5120CoaXPress with Micro-BNC interface85 fps @ 5120 × 5120 Mono 8$10,979.00 Quote Ships in 2-3 weeks View
MV-CH250-90YM-M58S-NN V25120 × 5120CoaXPress with Micro-BNC interface150 fps @ 5120 × 5120 Mono 8$10,979.00 Quote Ships in 2-3 weeks View
