Area scan cameras

26.2 MP CoaXPress area scan camera, GMAX0505, 1.1" global shutter, 90 fps (LS-CMR-0222)

Model LS-CMR-0222

Resolution5120×5120
Sensor1.1''
InterfaceCoaXPress(Micro-BNC) CXP-12
Speed90
Lens mountC-mount
Pixel size5.5x5.5 μm

$2,550.00

Ships in 3-4 weeks

1.18 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

26.2 MP area scan camera for inspection, measurement and guidance on the production line. GMAX0505 CMOS sensor (1.1"); 5120 x 5120 pixels of 5.5 μm; up to 90 frames per second; global shutter; CoaXPress interface; C-mount lens mount; mono or colour version.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0222

Sensor and imaging

Sensor model	GMAX0505
Sensor size	1.1''
Resolution	5120×5120
Max. frame rate	90
Pixel size	5.5x5.5 μm
Sensor make	Gpixel
Shutter	Global Shutter
Sensor type	CMOS, Global
Dynamic range	61.6 dB
SNR	36 dB
Pixel bit depth	12 bits

Interfaces and I/O

Data interface	CoaXPress(Micro-BNC) CXP-12
Digital I/O	12-pin: Opto-isolated input x 1, opto-isolated output x 1, bi-directional custom non-isolated I/O x 1,RS232 x 1

Environment and compliance

Operating temperature	-30~80 °C (Storage), 0~50°C (Working)
Certification	CoaXPress, GenICam

Computing

Operating system	Windows

Electrical

Trigger mode	Soft Trigger,Hardware Trigger or Free Run Mode
Power supply	DC 12-24 V, CXP-0/1 supports PoCXP
Power consumption	24 V@ ≈13 W

Mechanical

Lens mount	C-mount

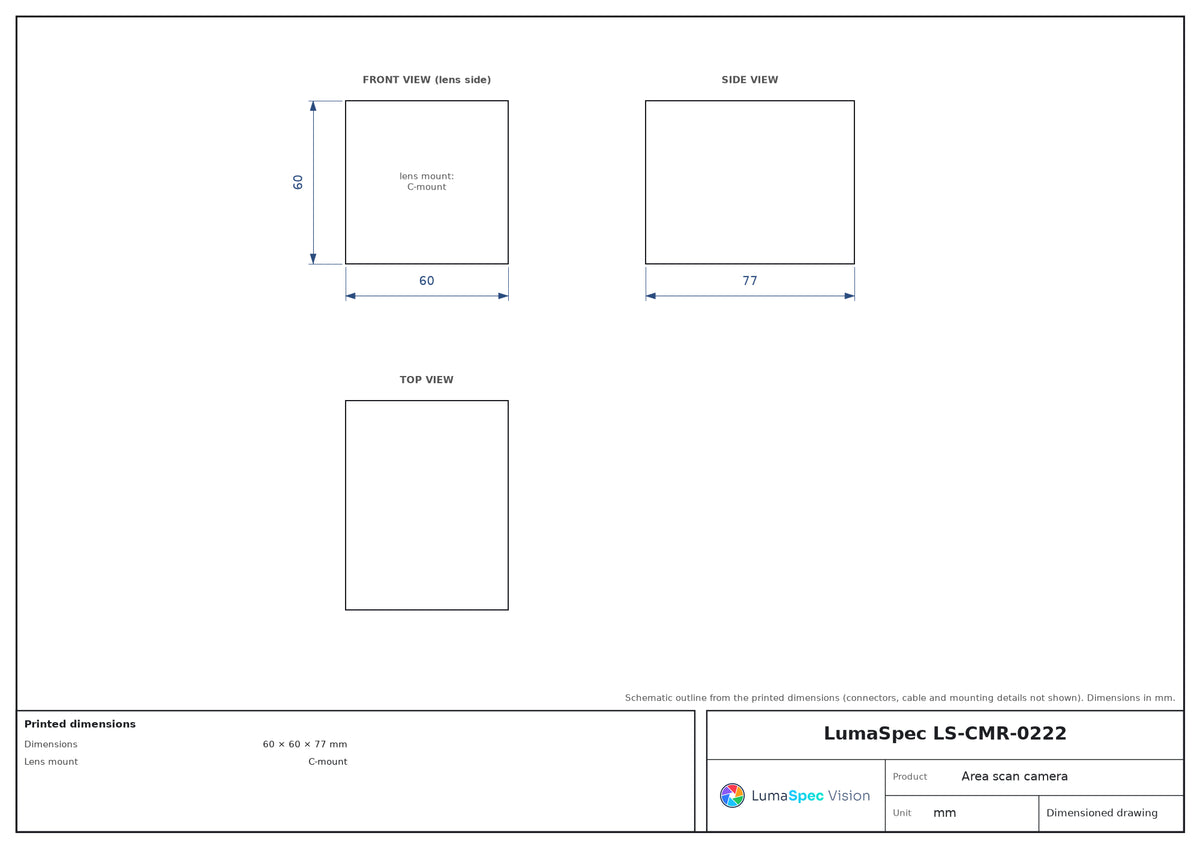

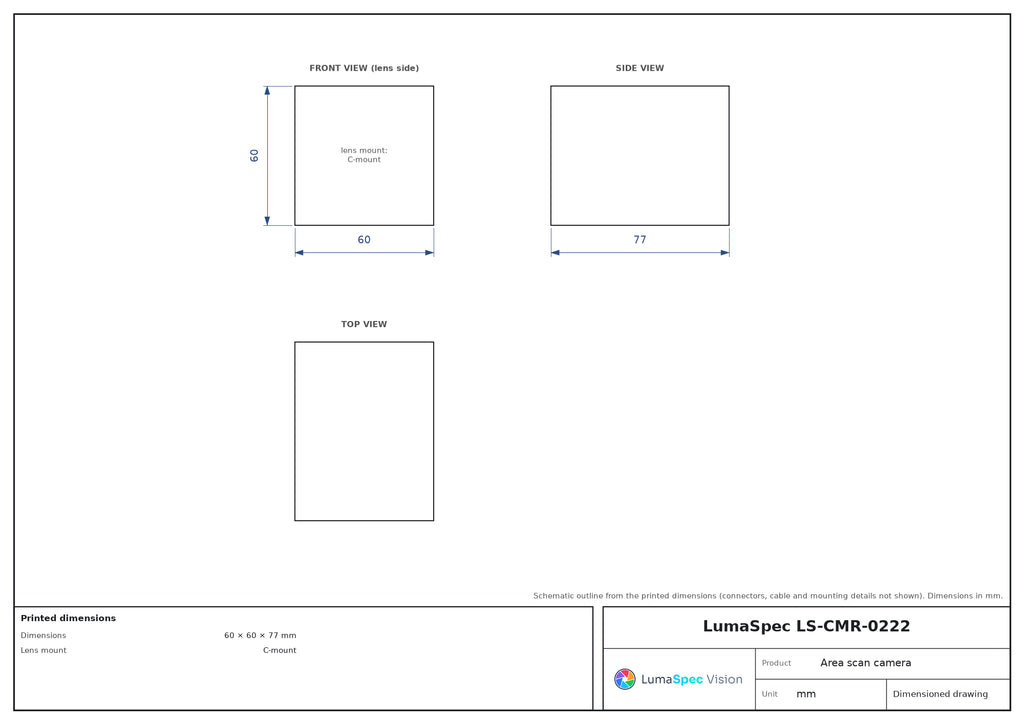

Dimensions	60 × 60 × 77 mm (790g)
Mounting holes	4-M4; 16-M4
Shipping weight	1.18 kg
