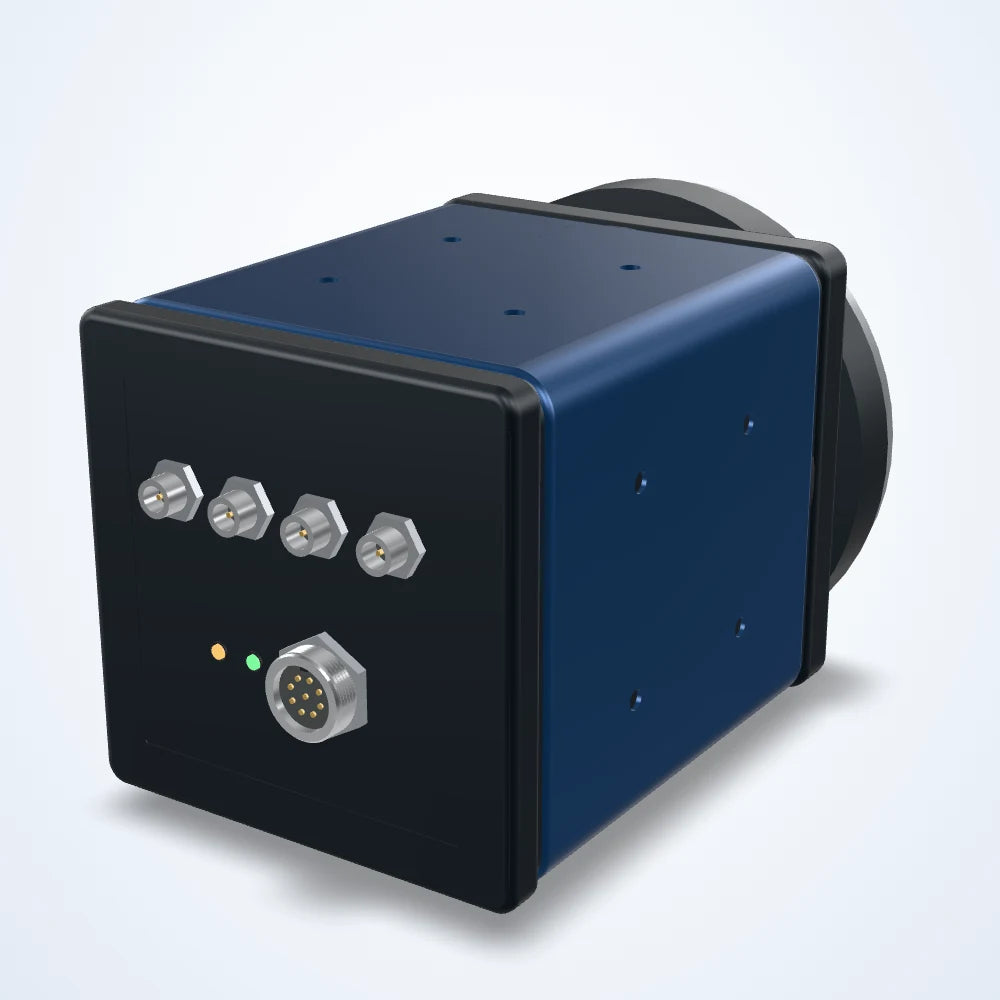

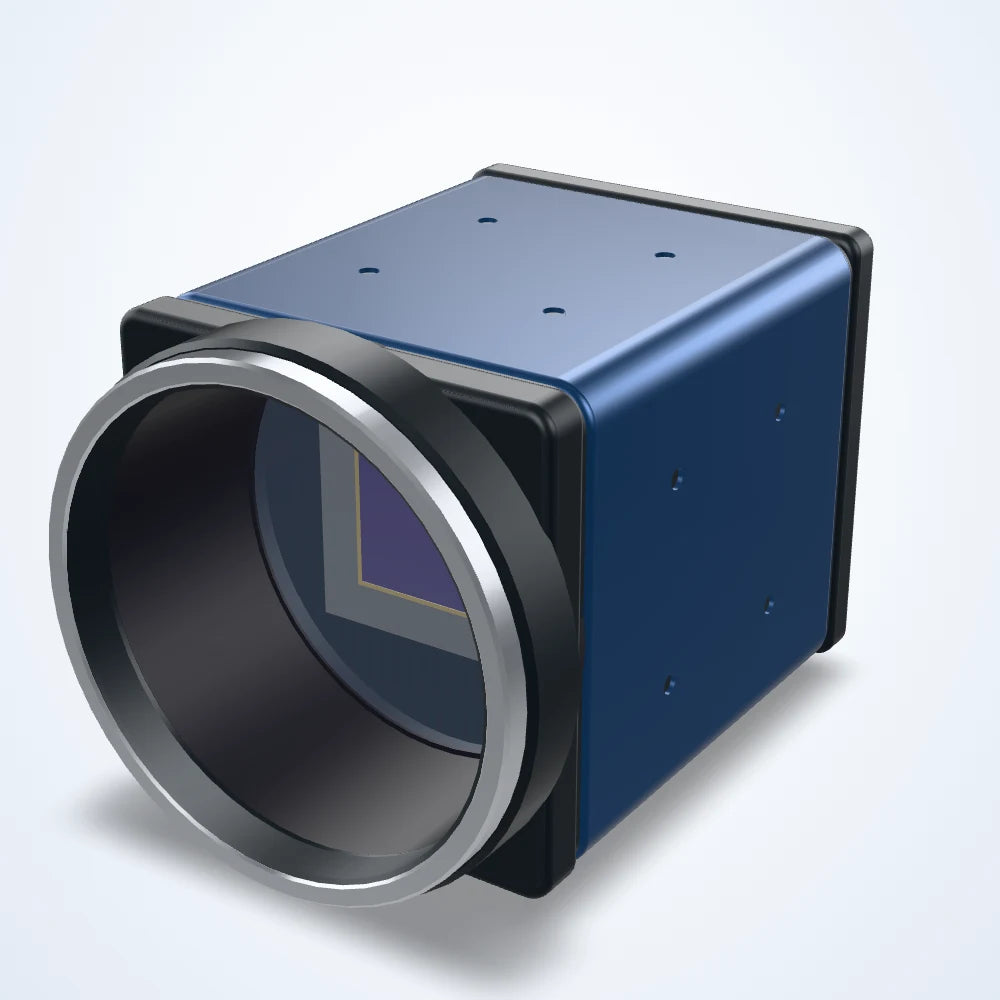

Area scan camera (series view)
  • Area scan camera (series view)
  • Area scan camera (series view)
  • 14.2 MP CoaXPress area scan camera, Gsprint5514, global shutter, 188 fps, M58

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

14.2 MP CoaXPress area scan camera, Gsprint5514, global shutter, 188 fps, M58 (LS-CMR-0214)

Model LS-CMR-0214

  • Resolution4608x3072
  • Sensor25.34x16.9 mm
  • InterfaceCoaXPress(Micro-BNC) CXP-12
  • Speed340 fps
  • Lens mountM58
  • Pixel size5.5x5.5 μm
$4,150.00

Ships in 3-4 weeks

1.18 kg shipping weight

Option

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

14.2 MP CoaXPress area scan camera, Gsprint5514, global shutter, 188 fps, M58 (LS-CMR-0214)LS-CMR-0214

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

14.2 MP area scan camera for inspection, measurement and guidance on the production line. Gsprint5514 CMOS sensor; 4608 x 3072 pixels of 5.5 μm; up to 188 frames per second; global shutter; CoaXPress interface; M58 lens mount; mono or colour version.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0214

Sensor and imaging

Sensor size25.34x16.9 mm
Resolution4608x3072
Pixel size5.5x5.5 μm
Max. frame rate340 fps
Sensor makeGpixel
Sensor modelGsprint5514
ShutterGlobal Shutter
Sensor typeCMOS, Global
Dynamic range61.6 dB
SNR>41 dB
Pixel bit depth12 bits

Interfaces and I/O

Data interfaceCoaXPress(Micro-BNC) CXP-12
Digital I/O12-pin: Opto-isolated input x 1, opto-isolated output x 1, bi-directional custom non-isolated I/O x 1,RS232 x 1

Environment and compliance

Operating temperature-30~80 °C (Storage), 0~50°C (Working)
CertificationCoaXPress, GenICam

Computing

Operating systemWindows

Electrical

Trigger modeSoft Trigger,Hardware Trigger or Free Run Mode
Power supplyDC 12-24 V, CXP-0/1 supports PoCXP
Power consumption24 V@ ≈15 W

Mechanical

Dimensions60 × 60 × 77 mm (790g)
Lens mountM58x0.75, BFL 11.48 mm
Mounting holes8-M4
Shipping weight1.18 kg
