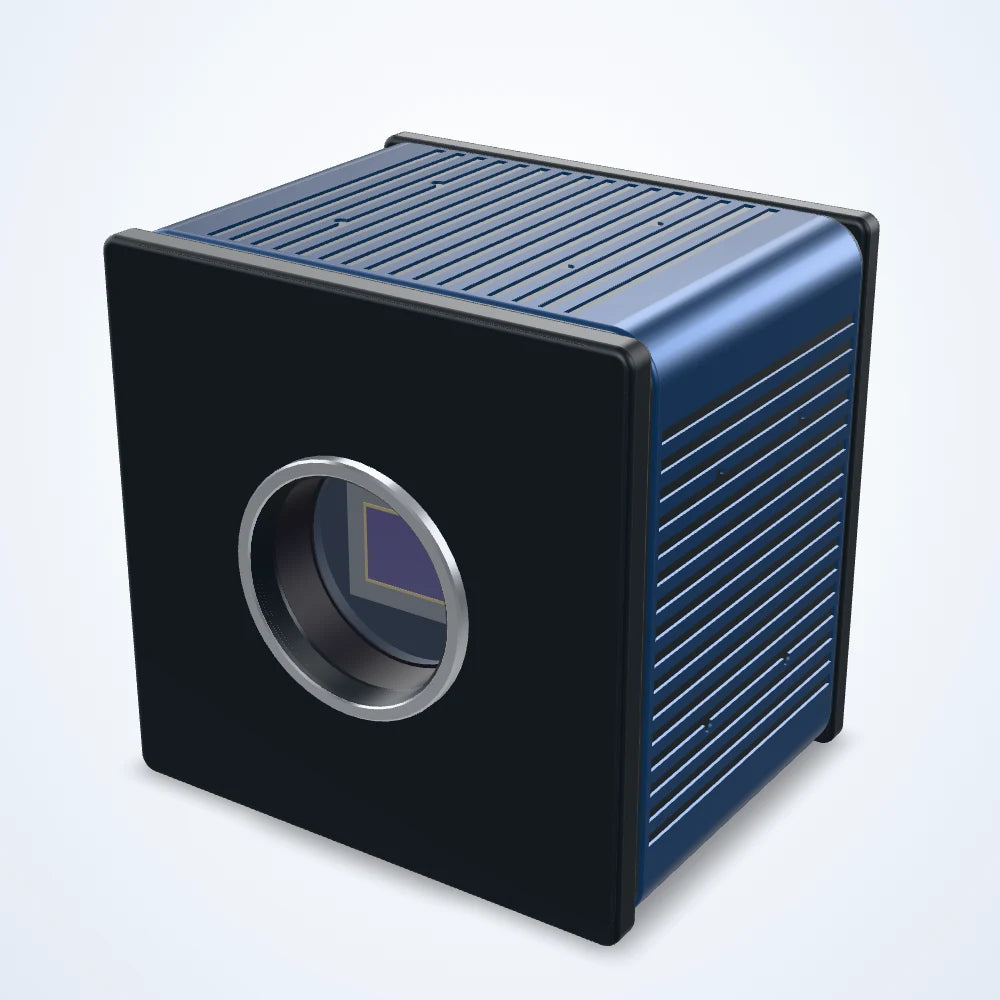

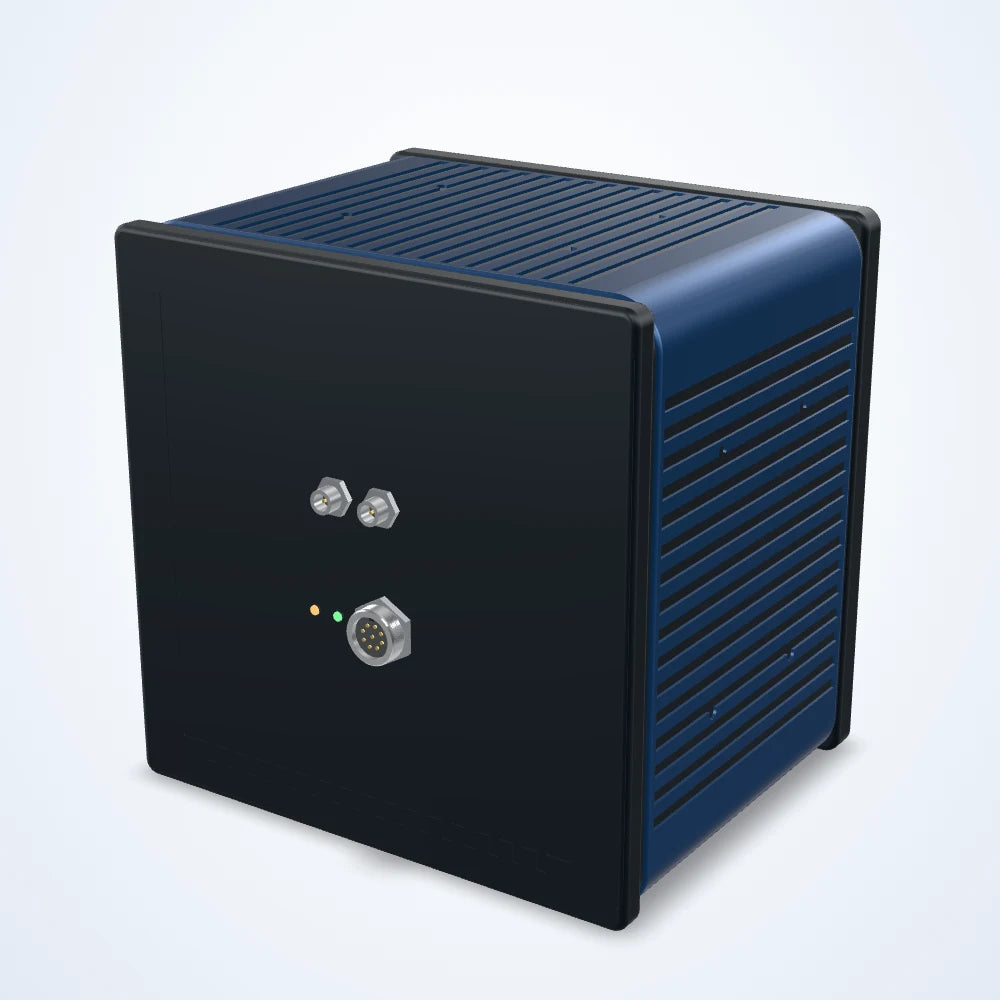

CoaXPress area scan camera GMAX0505 1.1" global shutter (series view)

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

26.2 MP CoaXPress area scan camera, GMAX0505, 1.1" global shutter, 150 fps, M58 (LS-CMR-0224)

Model LS-CMR-0224

Resolution5120 × 5120 (25MP)
Sensor1.1"
InterfaceCoaXPress
Speed150 fps
Lens mountM58
Pixel size2.5 μm

$3,800.00

Ships in 3-4 weeks

2.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

26.2 MP area scan camera for inspection, measurement and guidance on the production line. GMAX0505 sensor (1.1"); 5120 x 5120 pixels of 2.5 μm; up to 150 frames per second; global shutter; CoaXPress interface; M58 lens mount; mono or colour version.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0224

Sensor and imaging

Sensor model	Gpixel GMAX0505
Resolution	5120 × 5120 (25MP)
Max. frame rate	150 fps
Pixel size	2.5 μm
Sensor size	1.1"
Shutter	Global
Pixel bit depth	12-bit
Sensor make	Gpixel
Sensor type	CMOS
Dynamic range	63.0 dB
SNR	36.0 dB

Interfaces and I/O

Data interface	CoaXPress
Digital I/O	Opto-isolated input x 3, opto-isolated output x 3, and RS232 x 1

Environment and compliance

Operating temperature	-30~80 °C (Storage), -30~50°C (Working)
Certification	CoaXPress,GenICam

Computing

Operating system	Windows

Electrical

Output	Mono / Color
Trigger mode	● Soft Trigger ● Hardware Trigger ● Free Run
Power supply	PoCXP / DC 24 V
Power consumption	24 V@ ≈19.4 W

Mechanical

Lens mount	M58

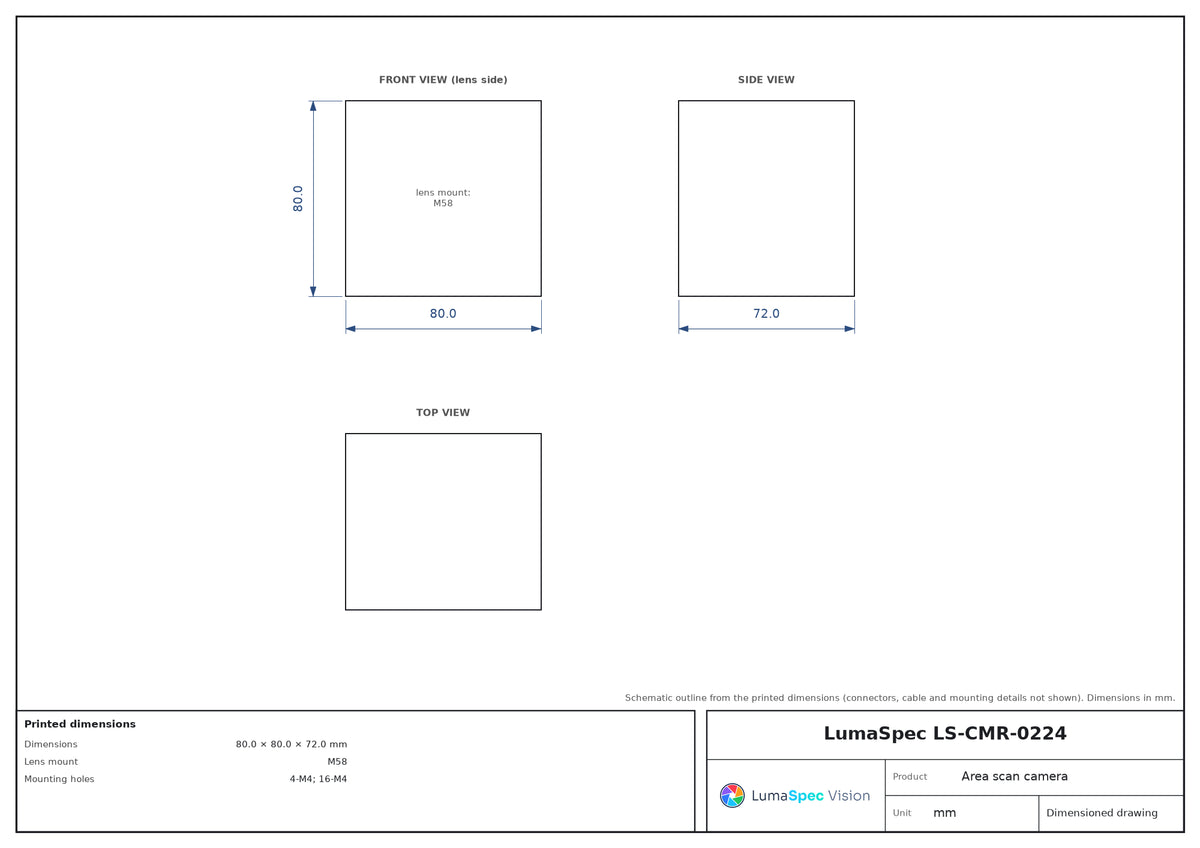

Dimensions	80.0 × 80.0 × 72.0 mm
Weight	890g
Mounting holes	4-M4; 16-M4
