9.1 MP CoaXPress area scan camera, GMAX2509, 2/3" global shutter, 120 fps
  • 9.1 MP CoaXPress area scan camera, GMAX2509, 2/3" global shutter, 120 fps
  • 9.1 MP CoaXPress area scan camera, GMAX2509, 2/3" global shutter, 120 fps
  • 9.1 MP CoaXPress area scan camera, GMAX2509, 2/3" global shutter, 120 fps

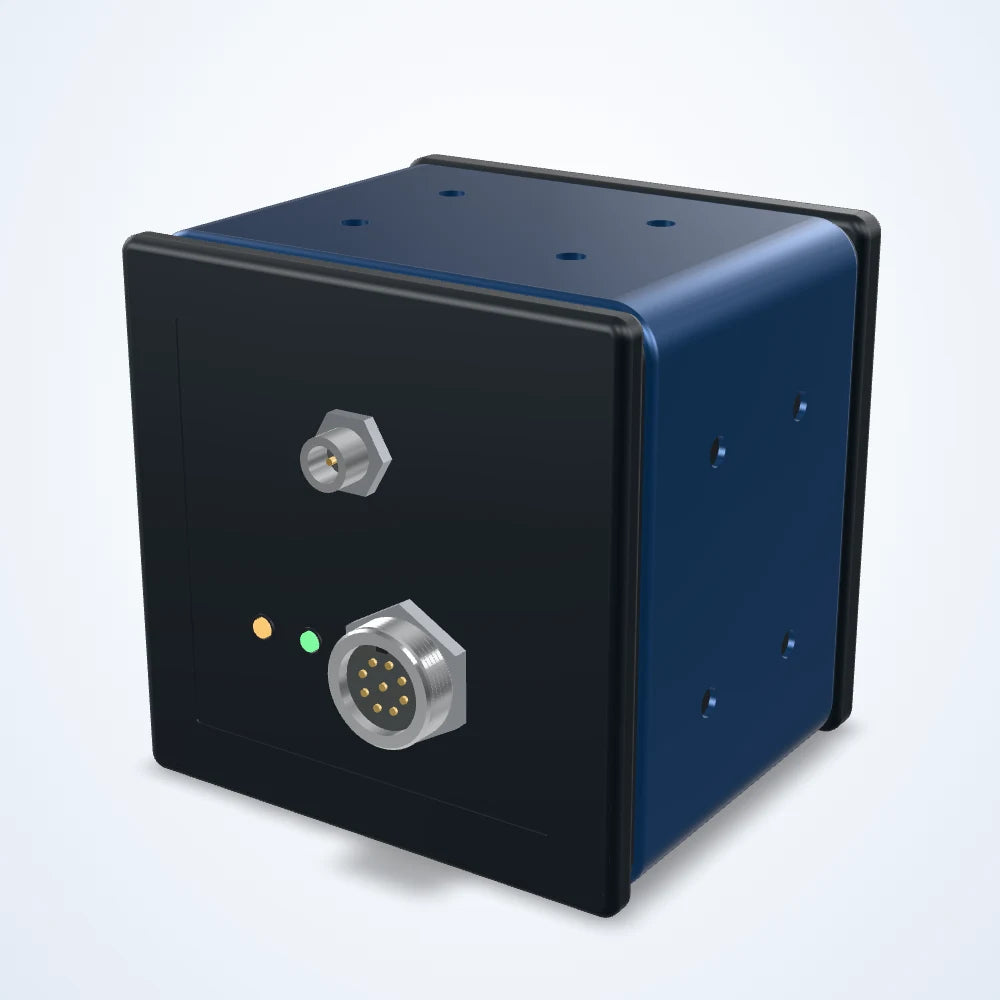

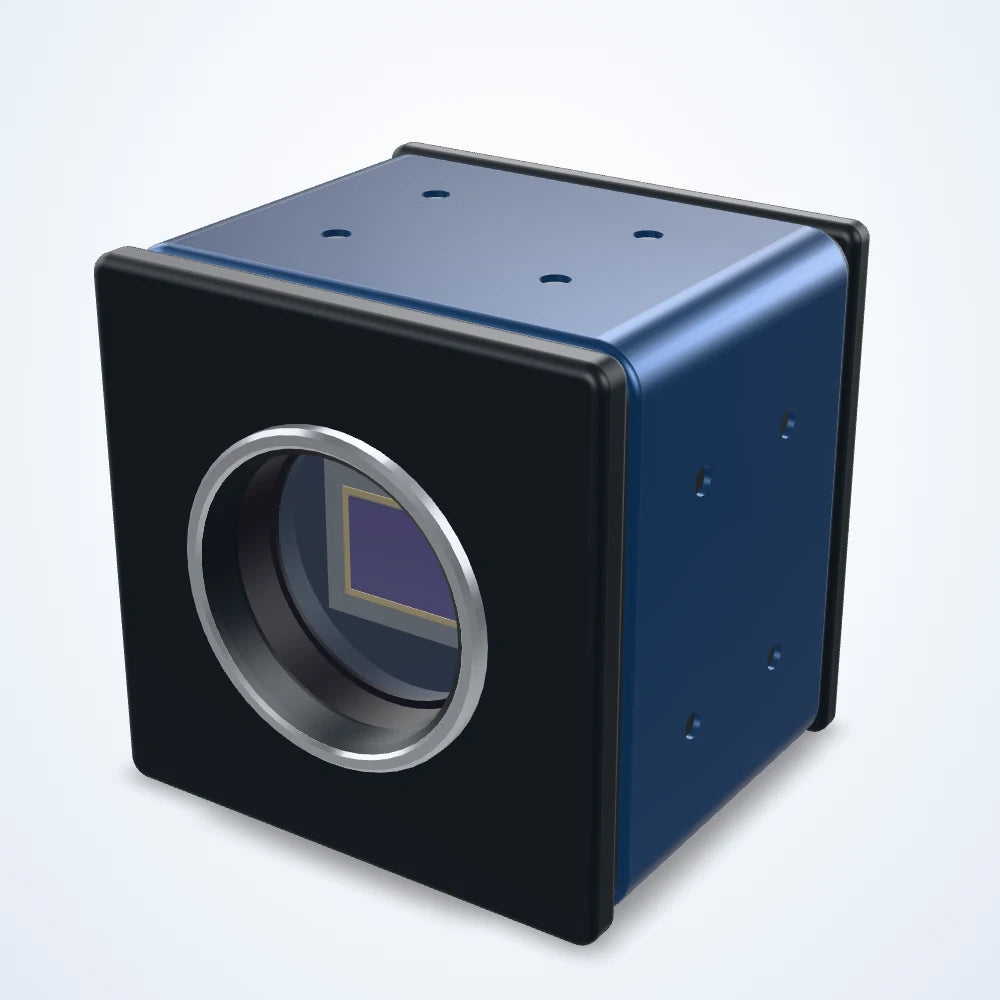

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

9.1 MP CoaXPress area scan camera, GMAX2509, 2/3" global shutter, 120 fps (LS-CMR-0203)

Model LS-CMR-0203

  • Resolution4192 px x 2160 px
  • Sensor2/3"
  • InterfaceCoaXPress
  • Speed120 fps
  • Lens mountC-mount
  • Pixel size2.5 μm × 2.5 μm
$1,170.00

Ships in 3-4 weeks

0.28 kg shipping weight

OptionMono

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

9.1 MP CoaXPress area scan camera, GMAX2509, 2/3" global shutter, 120 fps (LS-CMR-0203)LS-CMR-0203

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

9.1 MP area scan camera for inspection, measurement and guidance on the production line. GMAX2509 CMOS sensor (2/3"); 4192 x 2160 pixels of 2.5 μm; up to 120 frames per second; global shutter; CoaXPress interface; C-mount lens mount.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0203

Sensor and imaging

Resolution4192 px x 2160 px
Pixel size2.5 μm × 2.5 μm
Max. frame rate120 fps
Sensor makeGPixel
Sensor modelGMAX2509
ShutterGlobal Shutter
Sensor size2/3"
Sensor typeCMOS
Dynamic range62.0 dB
SNR36 dB
Pixel bit depth12 bits

Interfaces and I/O

Data interfaceCoaXPress
Digital I/O1× Opto-isolated input, 1× Opto-isolated output, 1× configurable input and output

Environment and compliance

Operating temperature-30 - 50°C(Operating), -30 - 80°C(Storage)
CertificationCoaxPress and GenICam

Computing

Operating systemWindows

Electrical

Trigger mode● Soft Trigger; ● Hardware Trigger; ● Free Run
Power supply24 VDC / PoCXP

Mechanical

Dimensions50 mm × 50 mm × 44.7 mm
Lens mountC-mount
Weight100g
