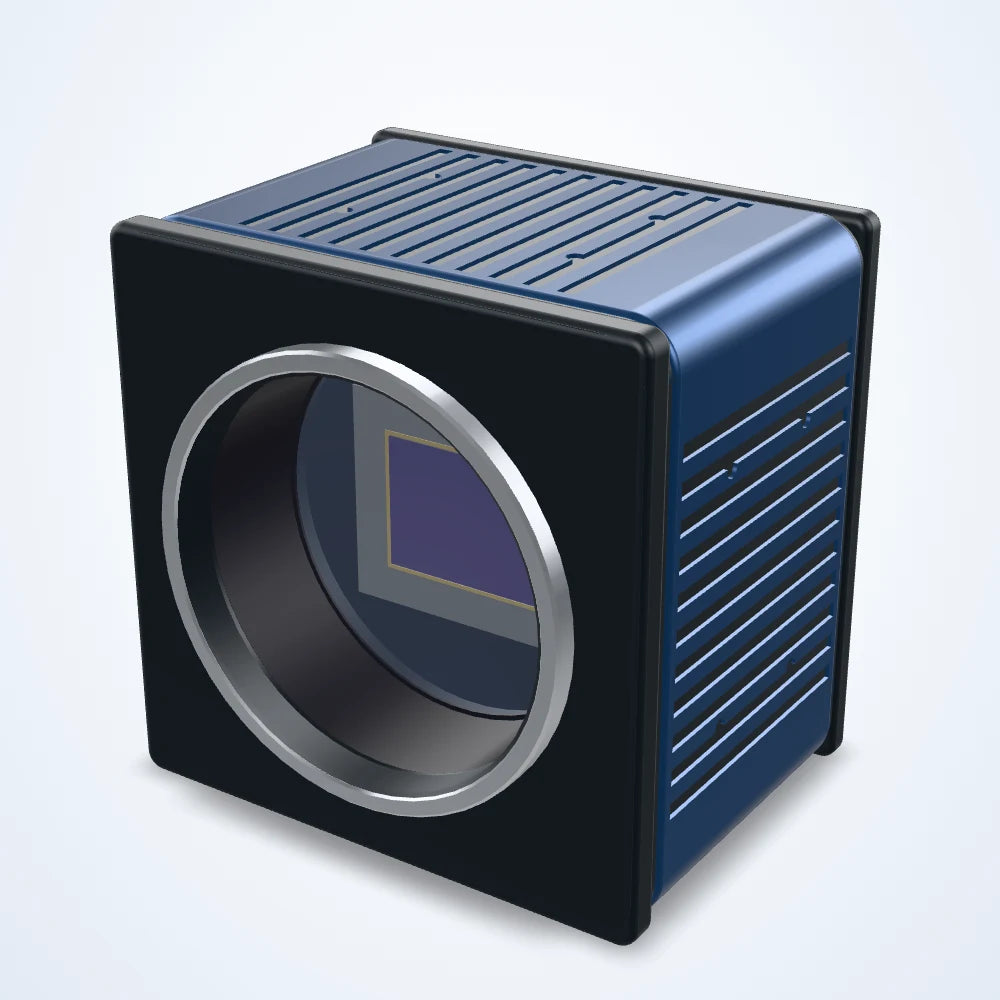

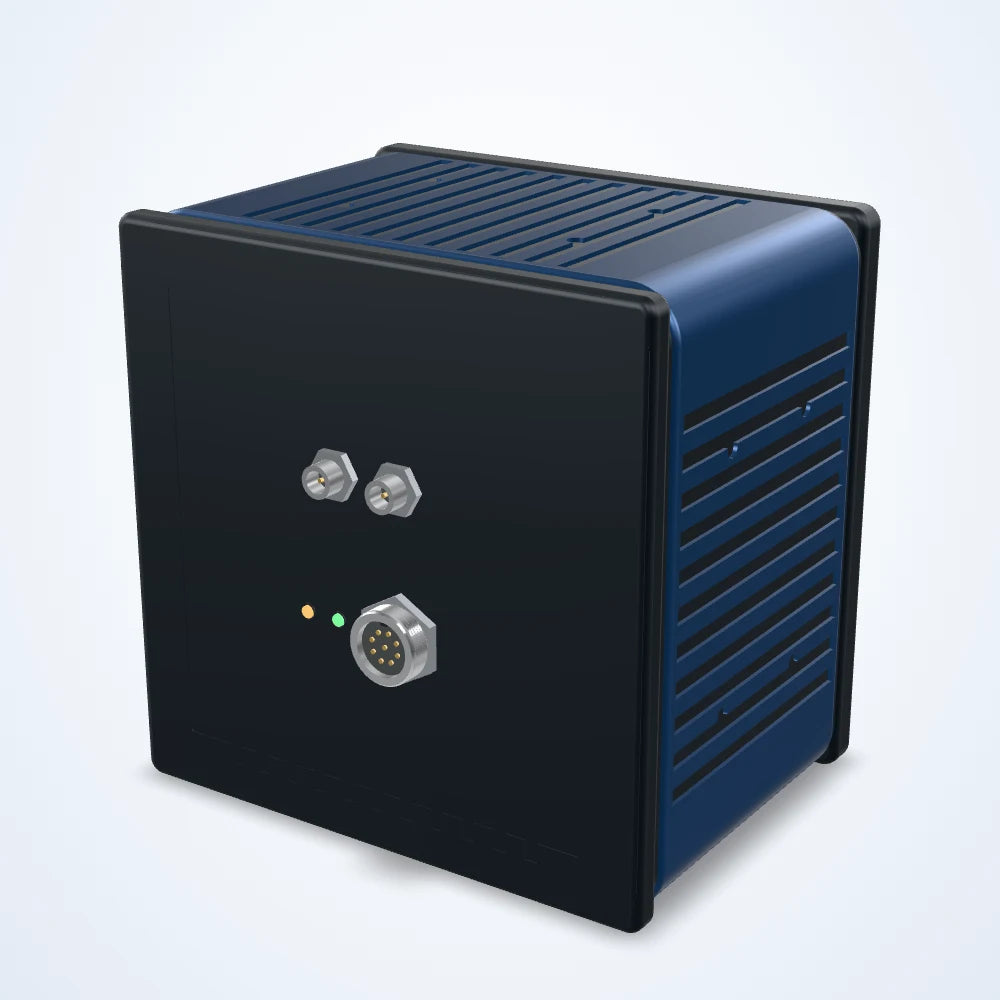

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
21 MP CoaXPress area scan camera, Gsprint4521, global shutter, 222 fps, M58 (LS-CMR-0220)
Model LS-CMR-0220
- Resolution5120 × 4096
- Sensor23.04x18.43 mm
- InterfaceCoaXPress(Micro-BNC) CXP12
- Speed222 fps
- Lens mountM58
- Pixel size4.5 μm x 4.5 μm
$5,000.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
21 MP area scan camera for inspection, measurement and guidance on the production line. Gsprint4521 CMOS sensor; 5120 x 4096 pixels of 4.5 μm; up to 222 frames per second; global shutter; CoaXPress interface; M58 lens mount; mono or colour version.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0220 |
|---|
Sensor and imaging
| Sensor size | 23.04x18.43 mm |
|---|---|
| Resolution | 5120 × 4096 |
| Pixel size | 4.5 μm x 4.5 μm |
| Max. frame rate | 222 fps |
| Sensor make | Gpixel |
| Sensor model | Gsprint4521 |
| Shutter | Global Shutter |
| Sensor type | CMOS |
| Dynamic range | 63 dB |
| Pixel bit depth | 12 bit |
Interfaces and I/O
| Data interface | CoaXPress(Micro-BNC) CXP12 |
|---|---|
| Digital I/O | Opto-isolated input x 1, opto-isolated output x 1, and bi-directional custom non-isolated I/O x 1, RS232 x 1 |
Environment and compliance
| Operating temperature | -30~70 °C ( Storage ), 0~50° C ( Working ) |
|---|---|
| Certification | CoaXPress, GenICam |
Computing
| Operating system | Windows |
|---|
Electrical
| Trigger mode | Soft Trigger,Hardware Trigger,Free Run Mode |
|---|---|
| Power supply | DC 12-24 V, CXP-1/2 supports PoCXP |
Mechanical
| Dimensions | 84 × 84 × 62.5 mm (650g)(A); 84 × 84 × 75 mm (790g)(B)With Fan |
|---|---|
| Lens mount | M58*0.75, BFL 11.48 mm |
| Shipping weight | 0.99 kg |
