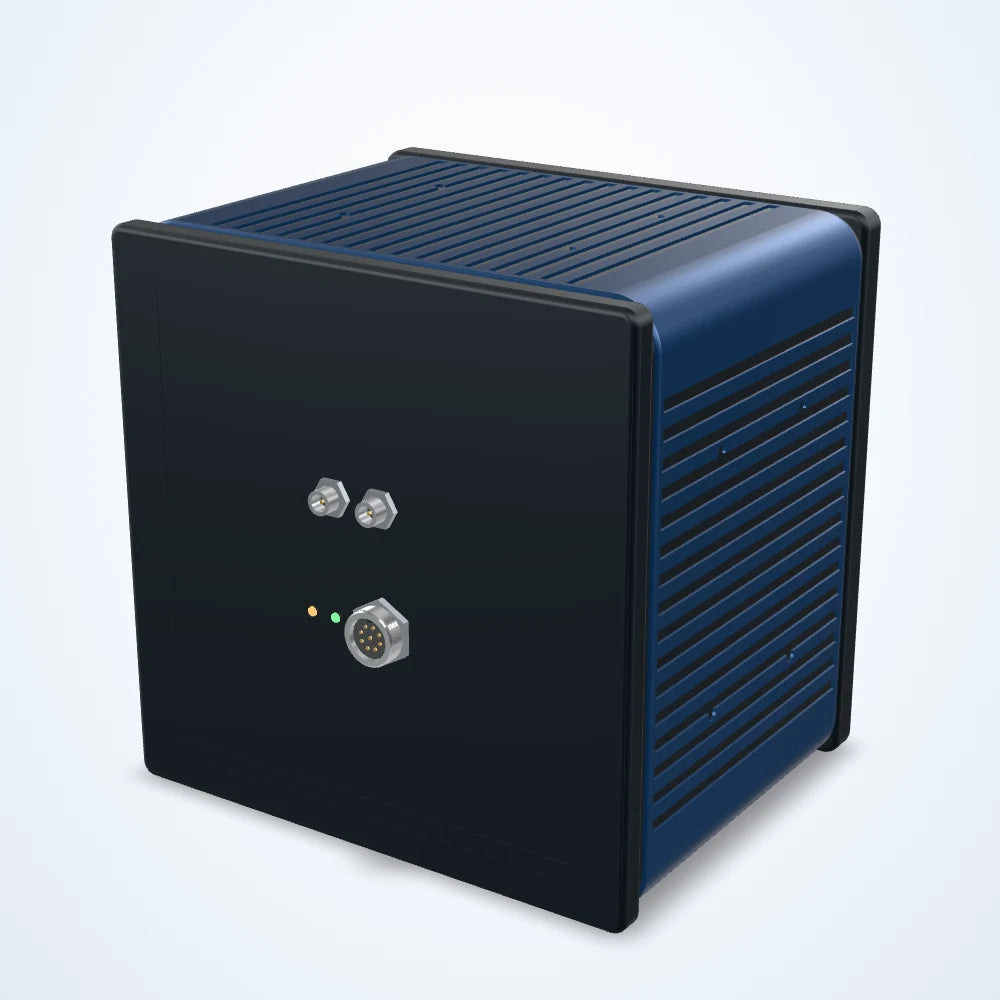

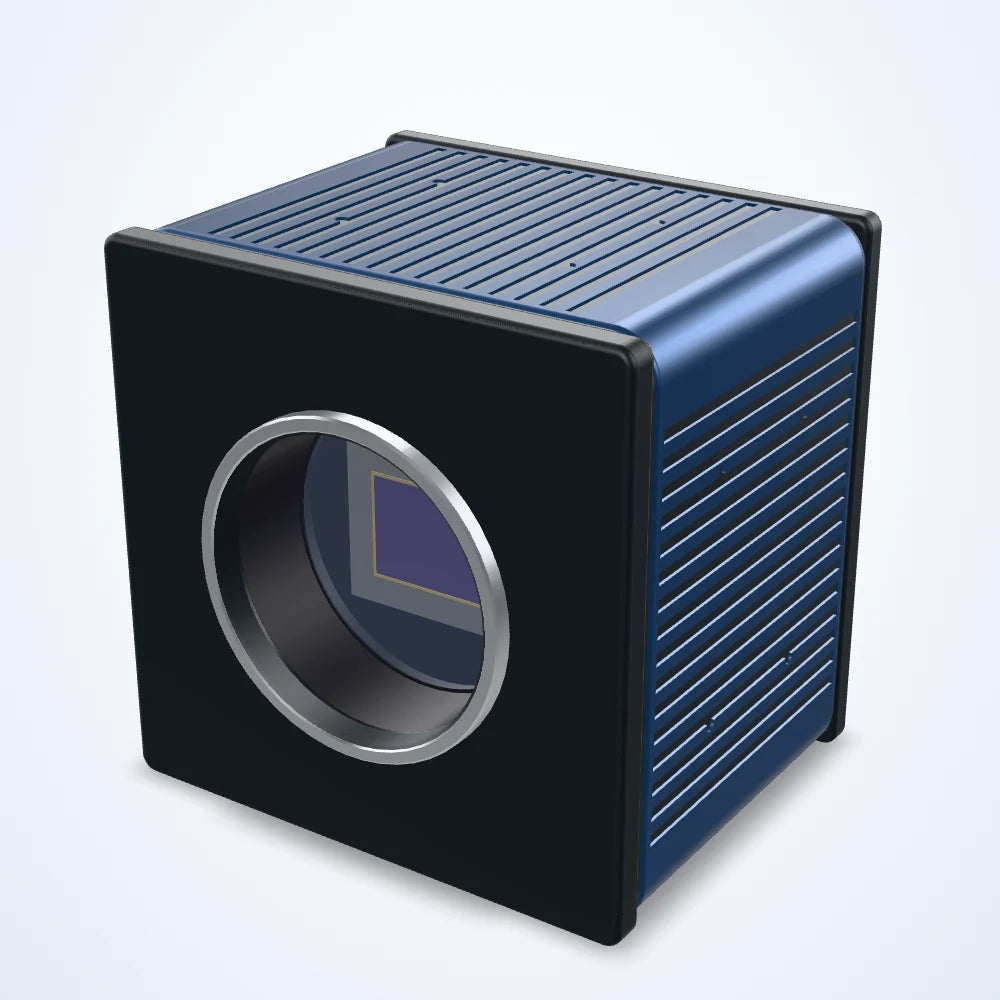

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
65.4 MP CoaXPress area scan camera, GMAX3265, global shutter, 71 fps, M58 (LS-CMR-0229)
Model LS-CMR-0229
- Resolution9344 × 7000 (65MP)
- Sensor29.9 × 22.4 mm
- InterfaceCoaXPress
- Speed71 fps
- Lens mountM58
- Pixel size3.2 μm
$6,200.00
Ships in 3-4 weeks
2.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
65.4 MP area scan camera for inspection, measurement and guidance on the production line. GMAX3265 sensor; 9344 x 7000 pixels of 3.2 μm; up to 71 frames per second; global shutter; CoaXPress interface; M58 lens mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0229 |
|---|
Sensor and imaging
| Sensor model | Gpixel GMAX3265 |
|---|---|
| Resolution | 9344 × 7000 (65MP) |
| Max. frame rate | 71 fps |
| Pixel size | 3.2 μm |
| Sensor size | 29.9 × 22.4 mm |
| Shutter | Global |
| Pixel bit depth | 12-bit |
Interfaces and I/O
| Data interface | CoaXPress |
|---|
Electrical
| Output | Mono/Color |
|---|
Mechanical
| Lens mount | M58 |
|---|---|
| Shipping weight | 2.00 kg |
