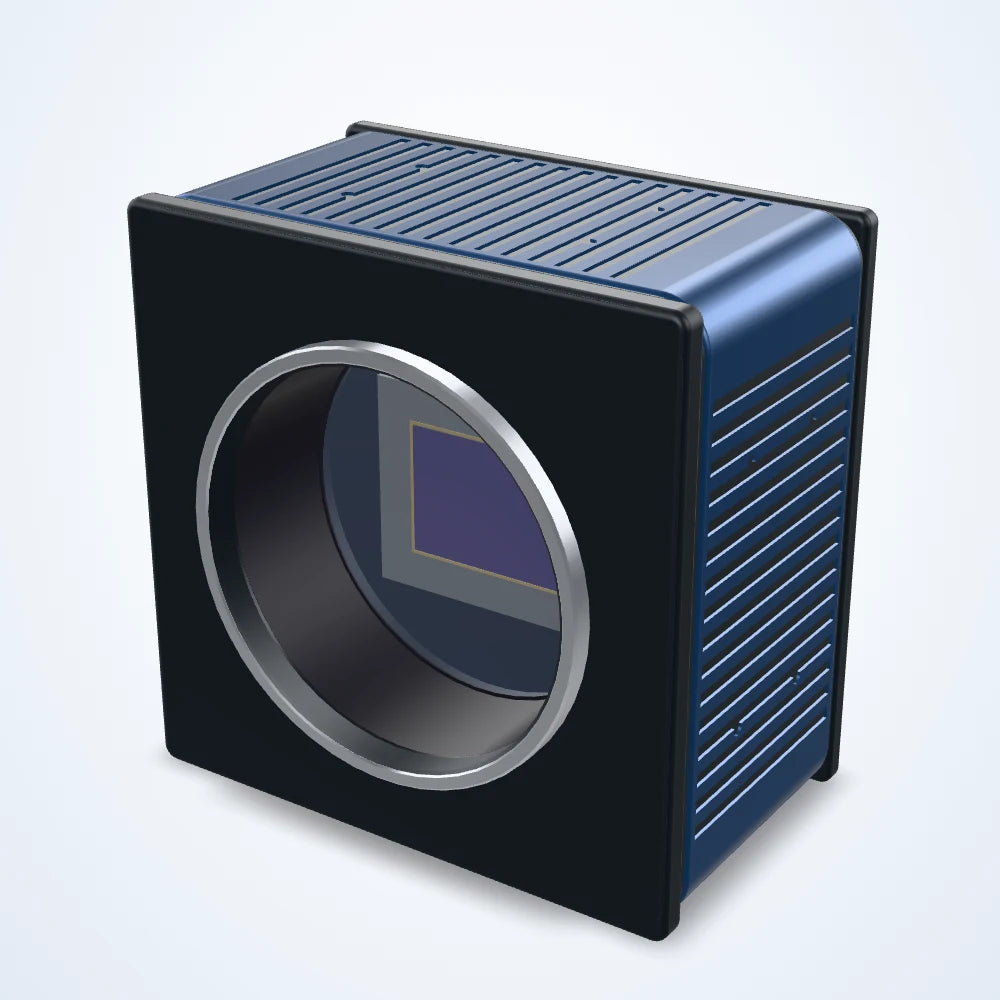

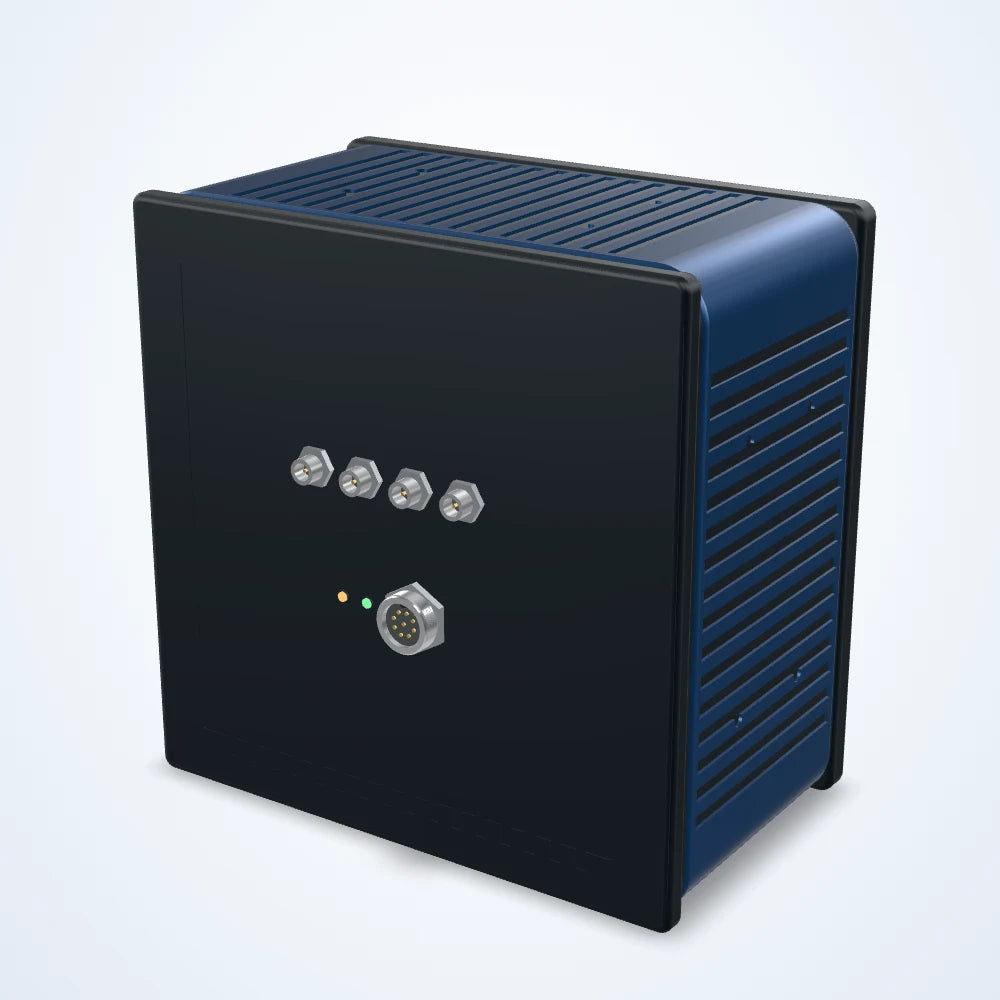

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
151 MP CoaXPress area scan camera, IMX411, rolling shutter, 6.1 fps, M72, without TEC (LS-CMR-0235)
Model LS-CMR-0235
- Resolution14192 px x 10640 px
- Sensor53.4x40.0 mm
- InterfaceCoaxpress
- Speed6.1 fps
- Lens mountM72
- Pixel size3.76 μm x 3.76 μm
$16,280.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 3-4 weeks
1.31 kg shipping weight
Collect parts in your quote list; we reply with price, lead time and volume pricing.
151 MP area scan camera for inspection, measurement and guidance on the production line. IMX411 CMOS sensor; 14192 x 10640 pixels of 3.76 μm; up to 6.1 frames per second; rolling shutter; CoaXPress interface; M72 lens mount; mono or colour version.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0235 |
|---|
Sensor and imaging
| Resolution | 14192 px x 10640 px |
|---|---|
| Pixel size | 3.76 μm x 3.76 μm |
| Max. frame rate | 6.1 fps |
| Sensor make | Sony |
| Sensor model | IMX 411 |
| Shutter | Rolling Shutter |
| Sensor size | 53.4x40.0 mm |
| Sensor type | CMOS |
| Pixel bit depth | 12 bit |
| Dynamic range | 78 dB |
| SNR | 46.4 dB |
Interfaces and I/O
| Data interface | Coaxpress |
|---|---|
| Digital I/O | Opto-isolated input x 3, opto-isolated output x 3, RS232 x 1 |
Environment and compliance
| Operating temperature | -30~80 °C (Storage), -10~50°C (Working) |
|---|---|
| Certification | CoaXPress, GenICam |
Computing
| Operating system | Windows |
|---|
Electrical
| Trigger mode | Via hardware trigger, software trigger or free run mode |
|---|---|
| Power supply | PoCXP / DC 24 V |
| Power consumption | 24 V@18 W |
Mechanical

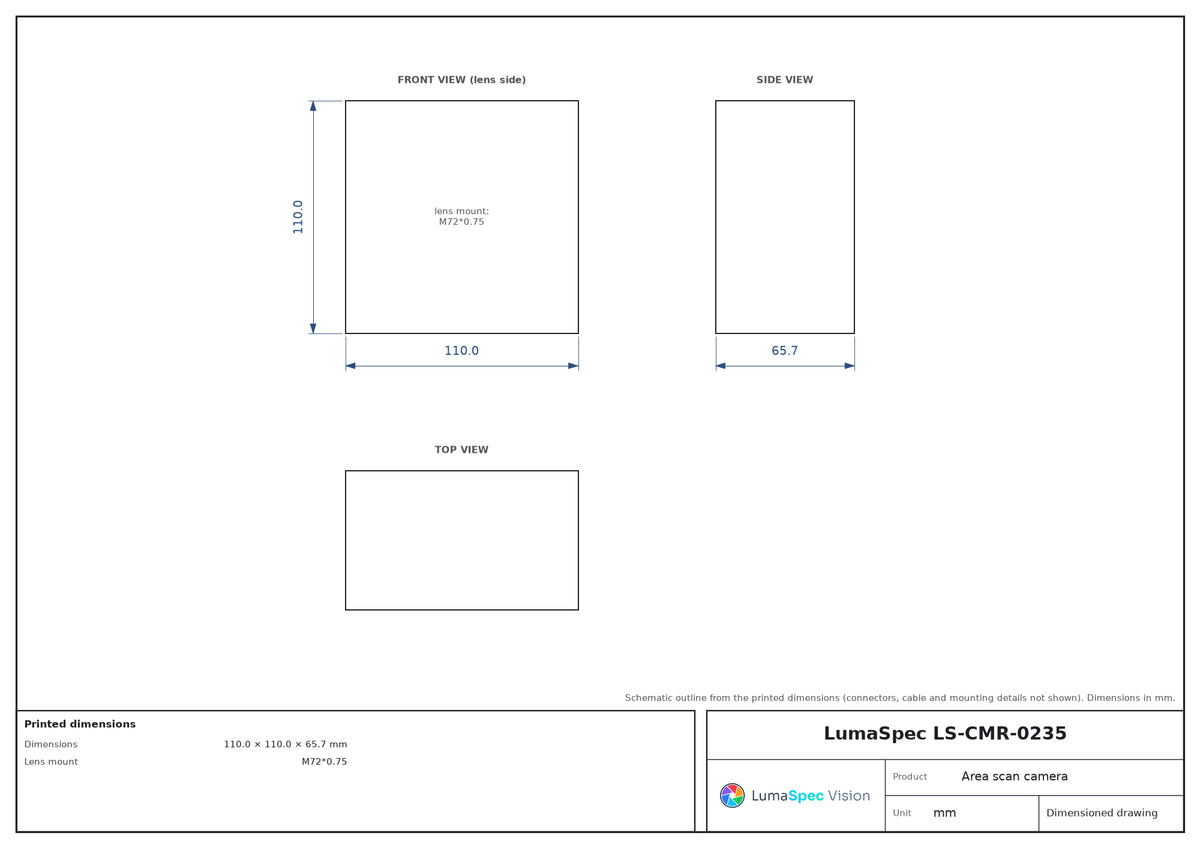

| Dimensions | 110.0 × 110.0 × 65.7 mm (890g) |
|---|---|
| Lens mount | M72*0.75 |
| Shipping weight | 1.31 kg |
