21 MP CoaXPress area scan camera, Gsprint4521, global shutter, 219 fps
  • 21 MP CoaXPress area scan camera, Gsprint4521, global shutter, 219 fps
  • 21 MP CoaXPress area scan camera, Gsprint4521, global shutter, 219 fps

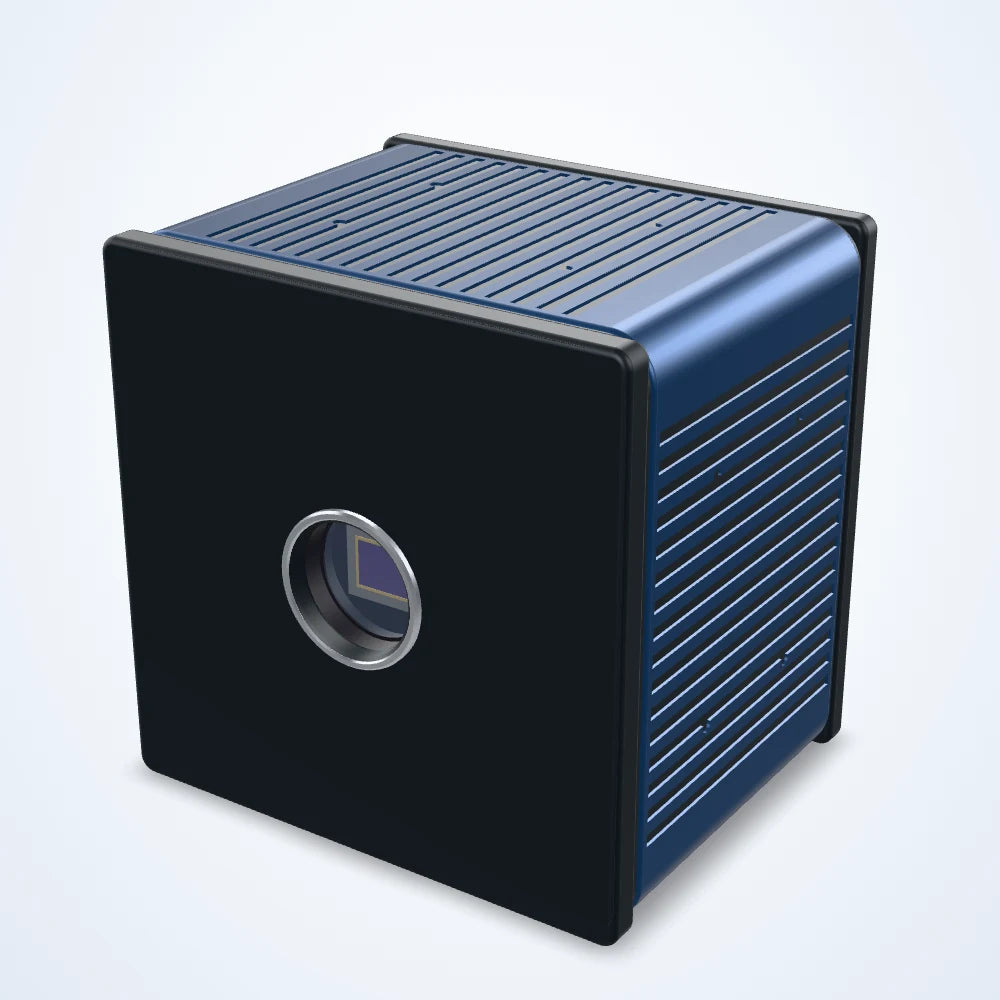

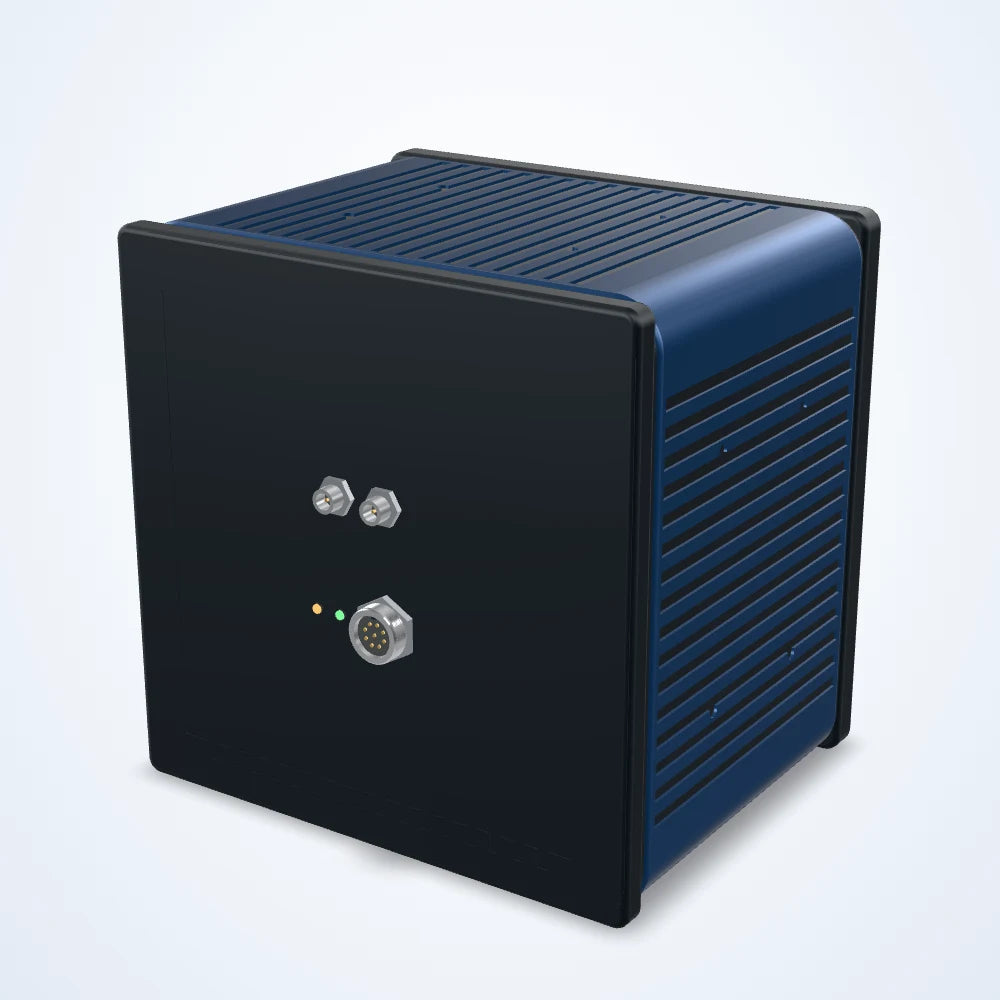

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

21 MP CoaXPress area scan camera, Gsprint4521, global shutter, 219 fps (LS-CMR-0219)

Model LS-CMR-0219

  • Resolution5120 × 4096 (21MP)
  • Sensor23.0 × 18.4 mm
  • InterfaceCoaXPress
  • Speed219 fps
  • Pixel size4.5 μm
$5,029.00

Ships in 3-4 weeks

2.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

21 MP CoaXPress area scan camera, Gsprint4521, global shutter, 219 fps (LS-CMR-0219)LS-CMR-0219

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

21 MP area scan camera for inspection, measurement and guidance on the production line. Gsprint4521 sensor; 5120 x 4096 pixels of 4.5 μm; up to 219 frames per second; global shutter; CoaXPress interface.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0219

Sensor and imaging

Sensor modelGpixel Gsprint4521
Resolution5120 × 4096 (21MP)
Max. frame rate219 fps
Pixel size4.5 μm
Sensor size23.0 × 18.4 mm
ShutterGlobal
Pixel bit depth12-bit
Sensor makeGpixel
Sensor typeCMOS
Dynamic range69.0 dB
SNR44 dB

Interfaces and I/O

Data interfaceCoaXPress
Digital I/O3x Opto-isolated input, 3x Opto-isolated output;1x RS232

Light

Color TypeMono

Environment and compliance

Operating temperature-30 - 50°C(Operating), -30 - 80°C(Storage)
CertificationCoaxPress and GenICam

Computing

Operating systemWindows

Electrical

Trigger mode● Soft Trigger ● Hardware Trigger ● Free Run
Power supply24 VDC / PoCXP

Mechanical

Shipping weight2.00 kg
