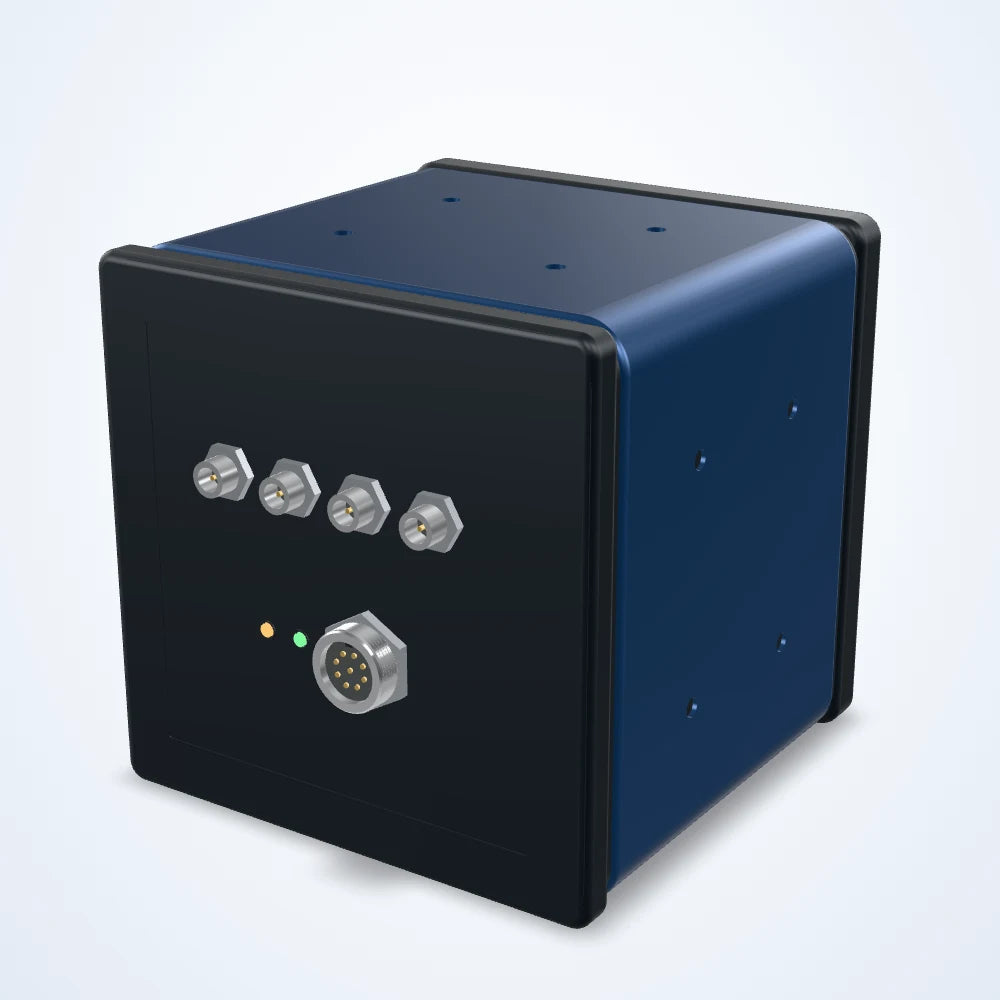

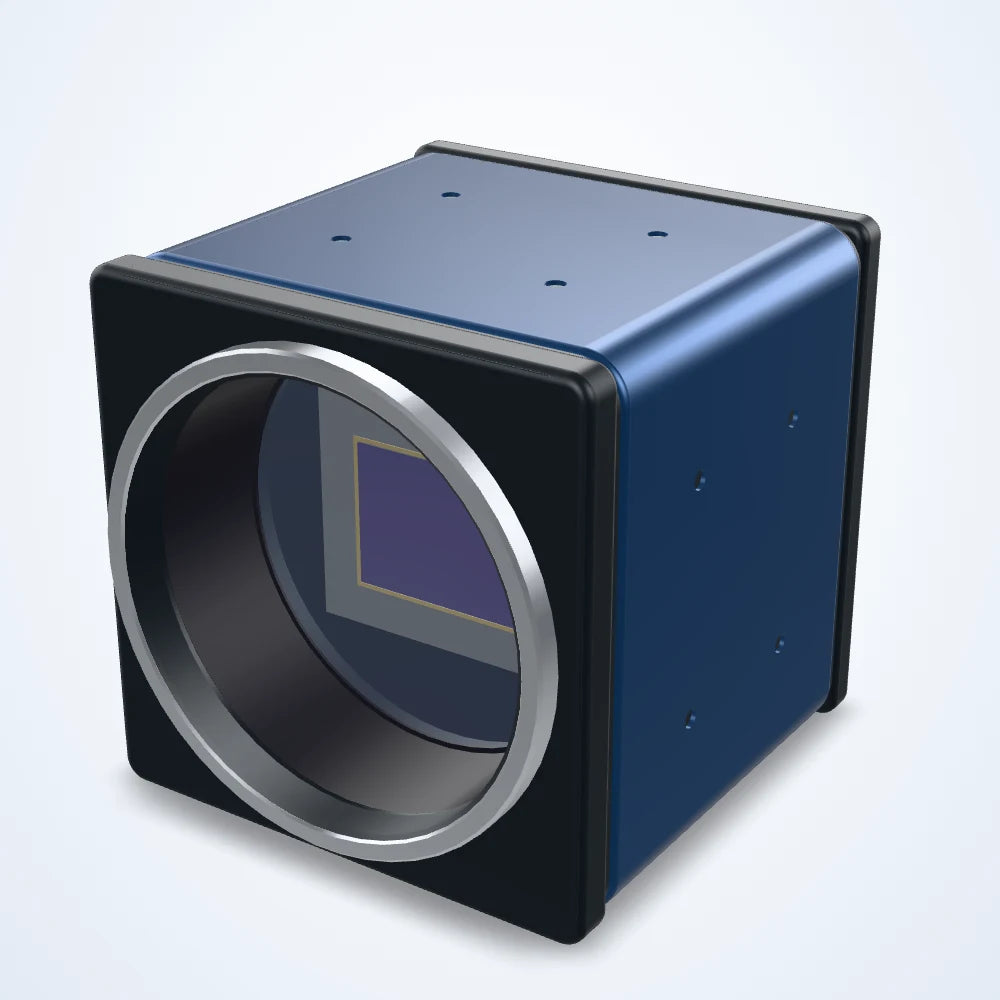

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

12.6 MP CoaXPress area scan camera, CMV12000, global shutter, 330 fps, M58 (LS-CMR-0207)

Model LS-CMR-0207

  • Resolution4096 x 3072
  • Sensor22.5x16.9 mm
  • InterfaceCoaxPress
  • Speed330 fps
  • Lens mountM58
  • Pixel size5.5 μm x 5.5 μm
$3,850.00

Ships in 3-4 weeks

1.09 kg shipping weight

Option

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

12.6 MP CoaXPress area scan camera, CMV12000, global shutter, 330 fps, M58 (LS-CMR-0207)LS-CMR-0207

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

12.6 MP area scan camera for inspection, measurement and guidance on the production line. CMV12000 CMOS sensor; 4096 x 3072 pixels of 5.5 μm; up to 330 frames per second; global shutter; CoaXPress interface; M58 lens mount; mono or colour version.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0207

Sensor and imaging

Sensor size22.5x16.9 mm
Resolution4096 x 3072
Pixel size5.5 μm x 5.5 μm
Max. frame rate330 fps
Sensor makeCmosis
Sensor modelCMV12000
ShutterGlobal Shutter
Sensor typeCMOS
Dynamic range60 dB
Pixel bit depth12 bit
SNR>41 dB

Interfaces and I/O

Data interfaceCoaxPress
Digital I/OOpto-isolated input x 3, opto-isolated output x 3, and RS232 x 1

Environment and compliance

Operating temperature-30 - 50°C(Working), -30 - 80°C(Storage)
CertificationCoaXPress, GenICam

Computing

Operating systemWindows

Electrical

Trigger modeSoft Trigger,Hardware Trigger,Free Run Mode
Power supplyPoCXP / DC 24 V
Power consumption24 V@≈24 W

Mechanical

Dimensions72.0 × 72.0 × 72.0 mm (720g)
Lens mountM58
Shipping weight1.09 kg
