26.2 MP CoaXPress area scan camera, GMAX0505, 1.1" global shutter, 150 fps, M42 (LS-CMR-0210)

Model LS-CMR-0210-M

  • Resolution5120 × 5120
  • Sensor1.1”
  • InterfaceCoaXPress
  • Speed150 fps
  • Lens mountM42
  • Pixel size2.5 μm × 2.5 μm
$4,200.00

Ships in 3-4 weeks

2.0 kg shipping weight

Option

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

26.2 MP CoaXPress area scan camera, GMAX0505, 1.1" global shutter, 150 fps, M42 (LS-CMR-0210)LS-CMR-0210-M

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

26.2 MP area scan camera for inspection, measurement and guidance on the production line. GMAX0505 CMOS sensor; 5120 x 5120 pixels of 2.5 μm; up to 150 frames per second; global shutter; CoaXPress interface; M42 lens mount; mono or colour version.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0210

Sensor and imaging

Sensor size1.1”
Resolution5120 × 5120
Pixel size2.5 μm × 2.5 μm
Max. frame rate150 fps
Sensor makeGpixel
Sensor modelGMAX0505
ShutterGlobal Shutter
Sensor typeCMOS
Dynamic range63.0 dB
Pixel bit depth10 bits

Interfaces and I/O

Data interfaceCoaXPress
Digital I/OOpto-isolated input x 3, opto-isolated output x 3, and RS232 x 1

Environment and compliance

Operating temperature-30~80 °C (Storage), -30~50°C (Working)
CertificationCoaXPress, GenICam

Computing

Operating systemWindows

Electrical

Trigger modeSoft Trigger,Hardware Trigger or Free Run Mode
Power supplyPoCXP / DC 24 V
Power consumption24 V@ ≈19.4W

Mechanical

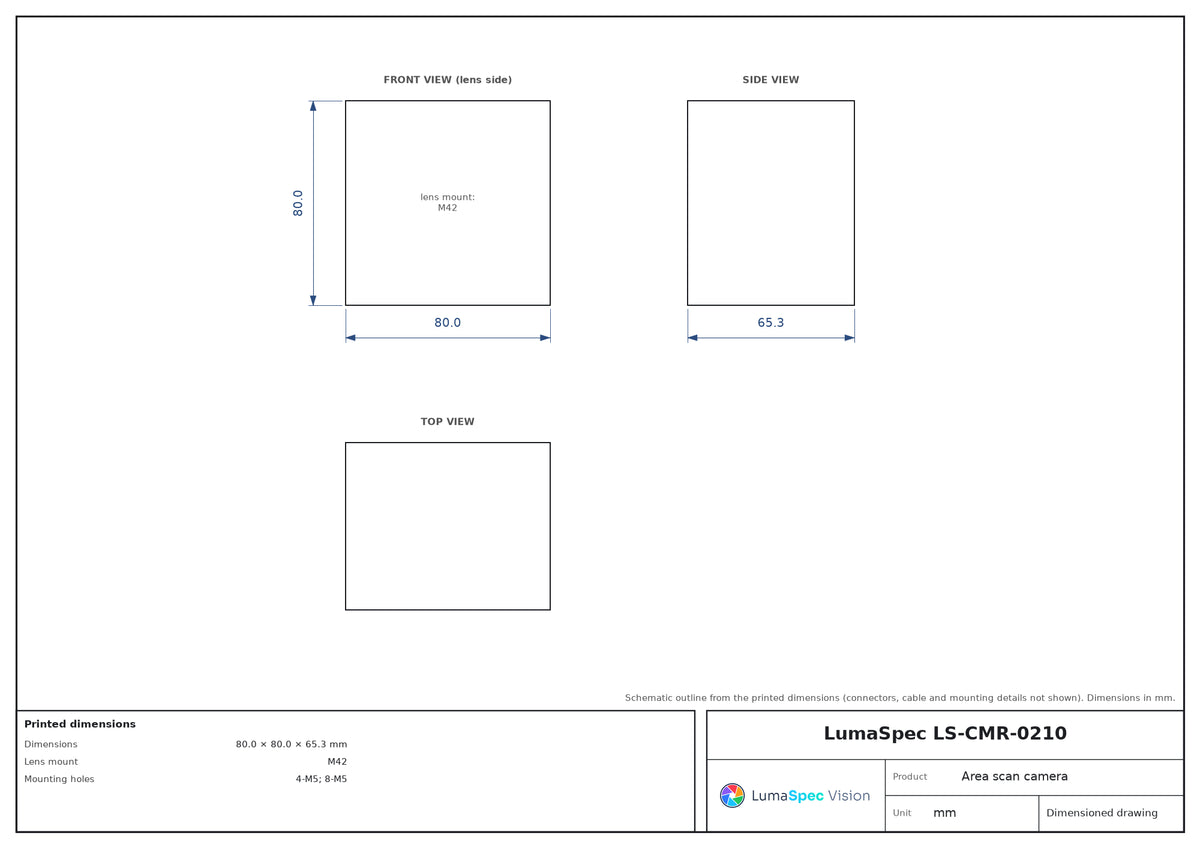

Dimensions80.0 × 80.0 × 65.3 mm
Lens mountM42
Weight890g
Mounting holes4-M5; 8-M5
