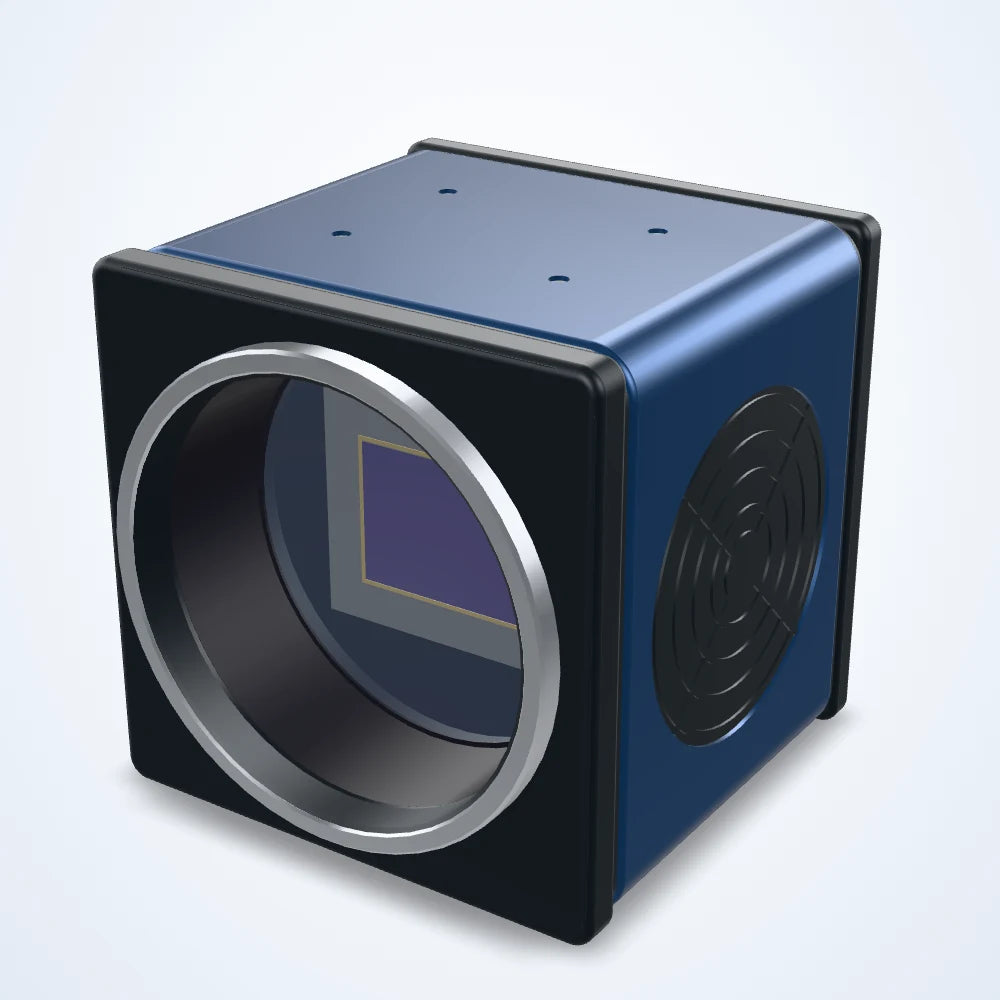

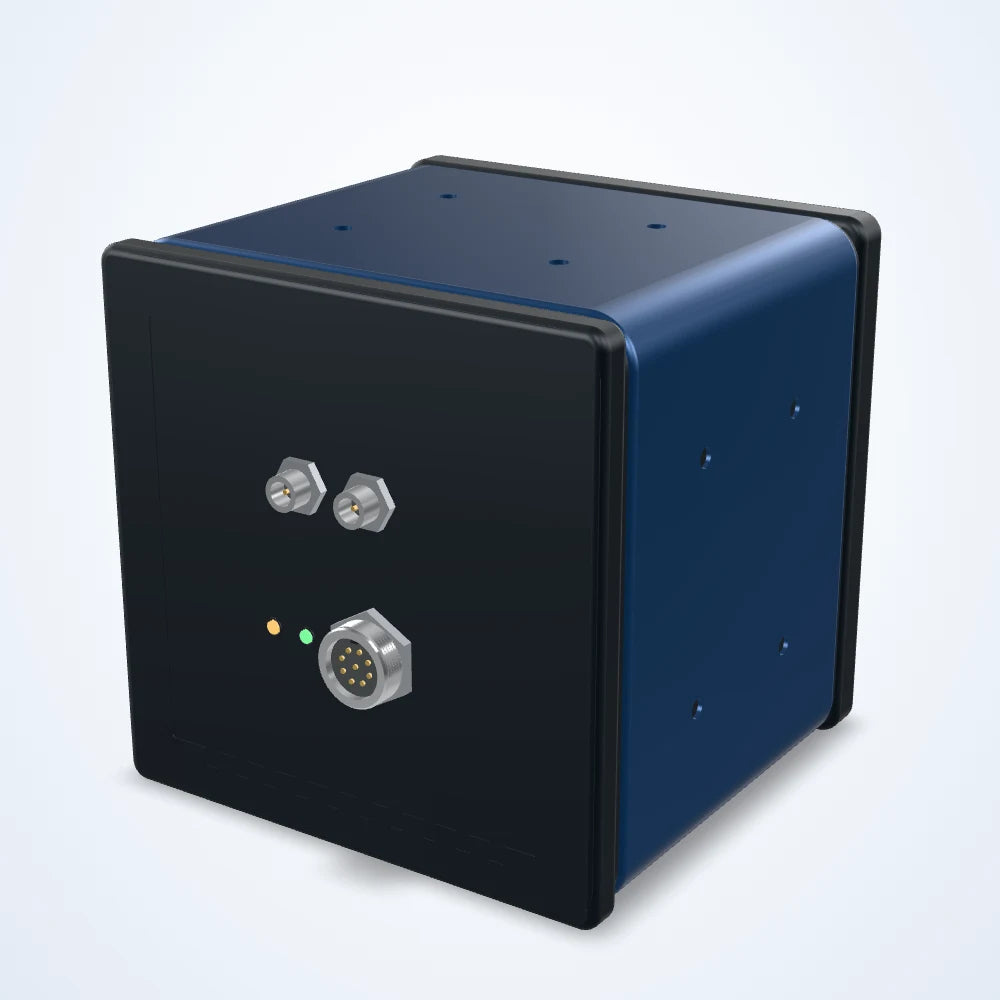

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
64.5 MP CoaXPress area scan camera, GMAX3265, global shutter, 31.5 fps, F-mount (LS-CMR-0225)
Model LS-CMR-0225
- ResolutionMono: 9216 × 7000 Color: 9344 × 7000
- Sensor29.9x 22.4 mm
- InterfaceCoaXPress(DIN port) CXP-6
- Speed31.5 fps
- Lens mountF-mount
- Pixel size3.2 × 3.2 μm
$6,600.00
Ships in 3-4 weeks
0.85 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
64.5 MP area scan camera for inspection, measurement and guidance on the production line. GMAX3265 CMOS sensor; 9216 x 7000 pixels of 3.2 μm; up to 31.5 frames per second; global shutter; CoaXPress interface; F-mount lens mount; mono or colour version.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0225 |
|---|
Sensor and imaging
| Sensor size | 29.9x 22.4 mm |
|---|---|
| Resolution | Mono: 9216 × 7000 Color: 9344 × 7000 |
| Pixel size | 3.2 × 3.2 μm |
| Max. frame rate | 31.5 fps |
| Sensor make | Gpixel |
| Sensor model | GMAX3265 |
| Shutter | Global Shutter |
| Sensor type | CMOS |
| Dynamic range | 66 dB |
| Pixel bit depth | 8 bit / 10 bit / 12 bit |
Interfaces and I/O
| Data interface | CoaXPress(DIN port) CXP-6 |
|---|---|
| Digital I/O | Opto-isolated input x 1, opto-isolated output x 1, bi-directional custom non-isolated I/O x 1,RS232 x 1 |
Environment and compliance
| Operating temperature | -30~70 °C ( Storage ), 0~50° C ( Working ) |
|---|---|
| Certification | CoaXPress, GenICam |
Computing
| Operating system | Windows |
|---|
Electrical
| Trigger mode | Soft Trigger,Hardware Trigger,Free Run Mode |
|---|---|
| Power supply | DC 9-24 V |
Mechanical
| Dimensions | M58 (With fan):74 × 74 × 70.8 mm (540g) F-Mount (With fan):74 × 74 × 76.8 mm(650g) |
|---|---|
| Lens mount | F-mount |
| Mounting holes | 4-M3; 2-M3; 4-M4; 2-M2 |
| Shipping weight | 0.85 kg |
