152.2 MP CoaXPress area scan camera, GMAX32152, global shutter, 16 fps, M72
  • 152.2 MP CoaXPress area scan camera, GMAX32152, global shutter, 16 fps, M72
  • 152.2 MP CoaXPress area scan camera, GMAX32152, global shutter, 16 fps, M72
  • 152.2 MP CoaXPress area scan camera, GMAX32152, global shutter, 16 fps, M72

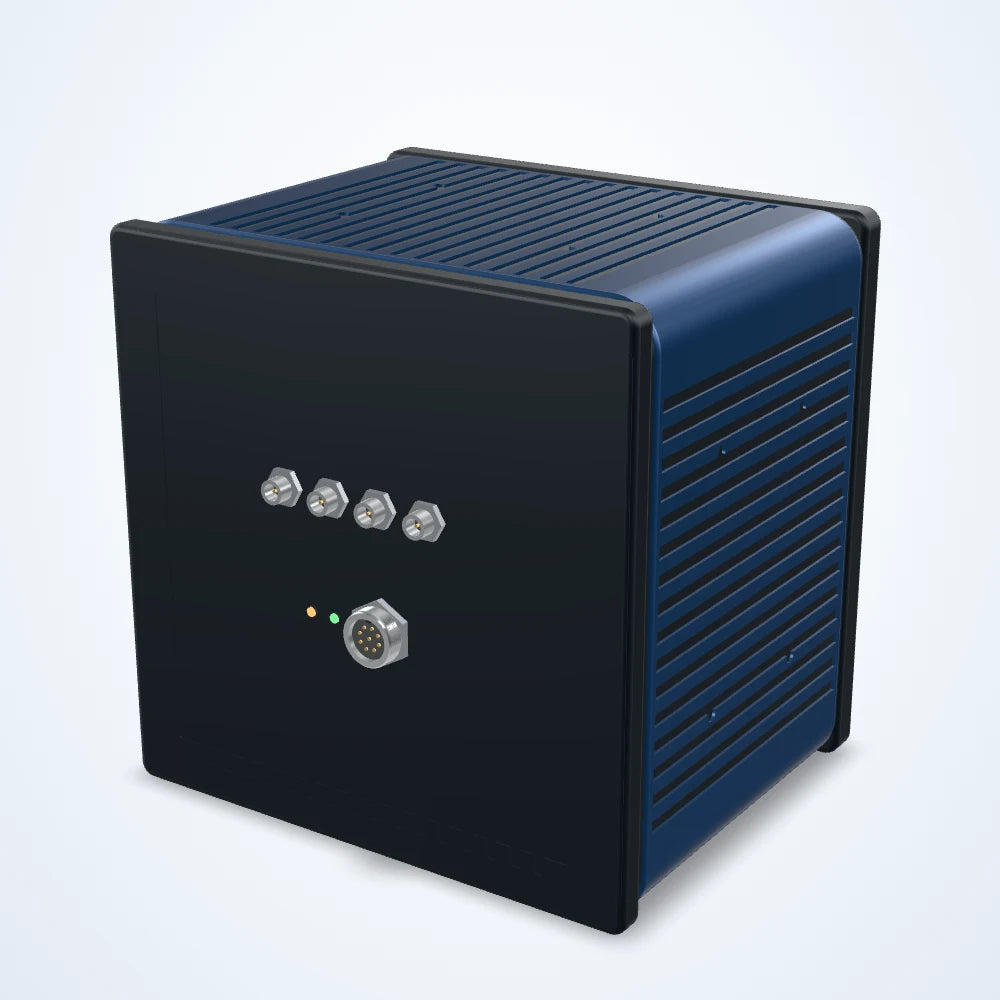

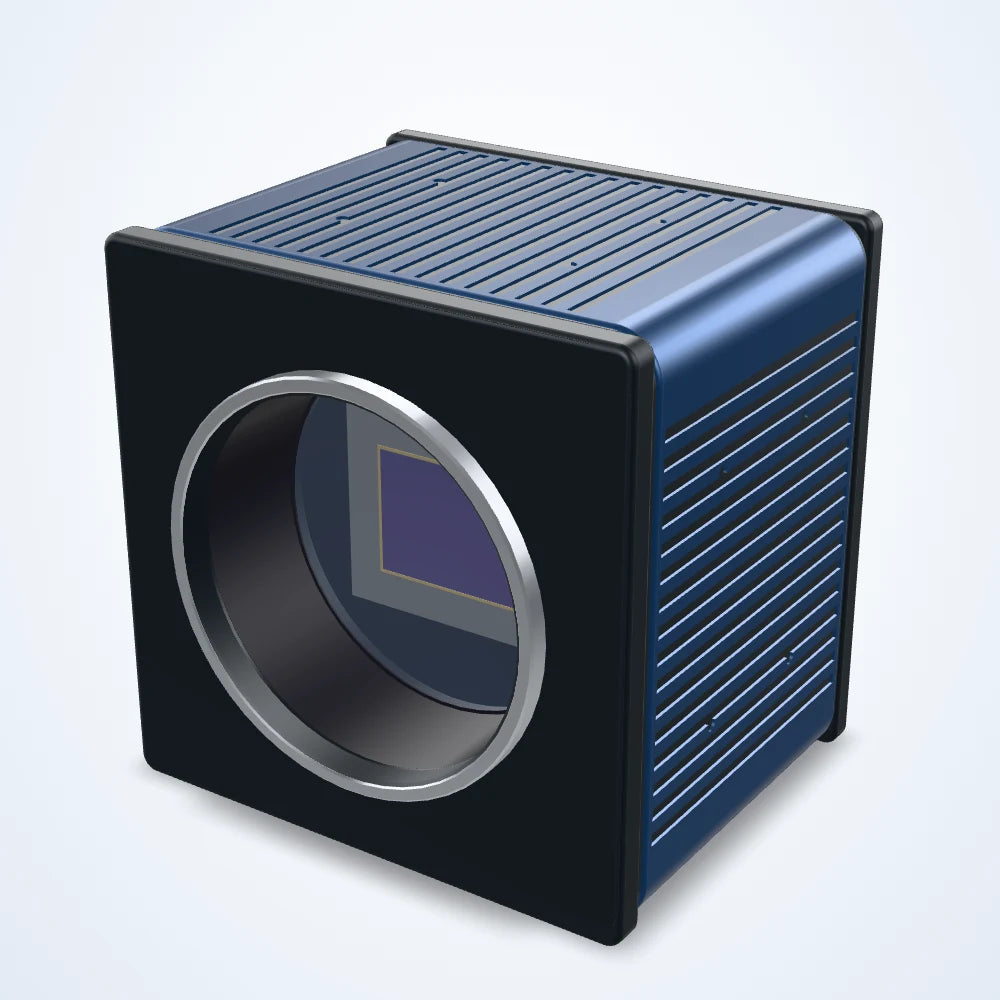

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

152.2 MP CoaXPress area scan camera, GMAX32152, global shutter, 16 fps, M72 (LS-CMR-0238)

Model LS-CMR-0238

  • Resolution16544 px x 9200 px
  • Sensor53.0x29.4 mm
  • InterfaceCoaxpress
  • Speed16 fps
  • Lens mountM72
  • Pixel size3.2 μm x 3.2 μm
$17,200.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 3-4 weeks

1.32 kg shipping weight

Option

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

152.2 MP CoaXPress area scan camera, GMAX32152, global shutter, 16 fps, M72 (LS-CMR-0238)LS-CMR-0238

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

152.2 MP area scan camera for inspection, measurement and guidance on the production line. GMAX32152 CMOS sensor; 16544 x 9200 pixels of 3.2 μm; up to 16 frames per second; global shutter; CoaXPress interface; M72 lens mount; mono or colour version.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0238

Sensor and imaging

Resolution16544 px x 9200 px
Pixel size3.2 μm x 3.2 μm
Max. frame rate16 fps
Sensor makeGpixel
Sensor modelGMAX32152
ShutterGlobal Shutter
Sensor size53.0x29.4 mm
Sensor typeCMOS
Pixel bit depth12 bit
Dynamic range67.3 dB

Interfaces and I/O

Data interfaceCoaxpress
Digital I/O12Pin: Opto-isolated input x 3, opto-isolated output x 3

Environment and compliance

Operating temperature-30~80 °C (Storage), -30~50°C (Working)
CertificationCoaXPress, GenICam

Computing

Operating systemWindows

Electrical

Trigger modeVia hardware trigger, software trigger or free run mode
Power supplyPoCXP / DC 24 V

Mechanical

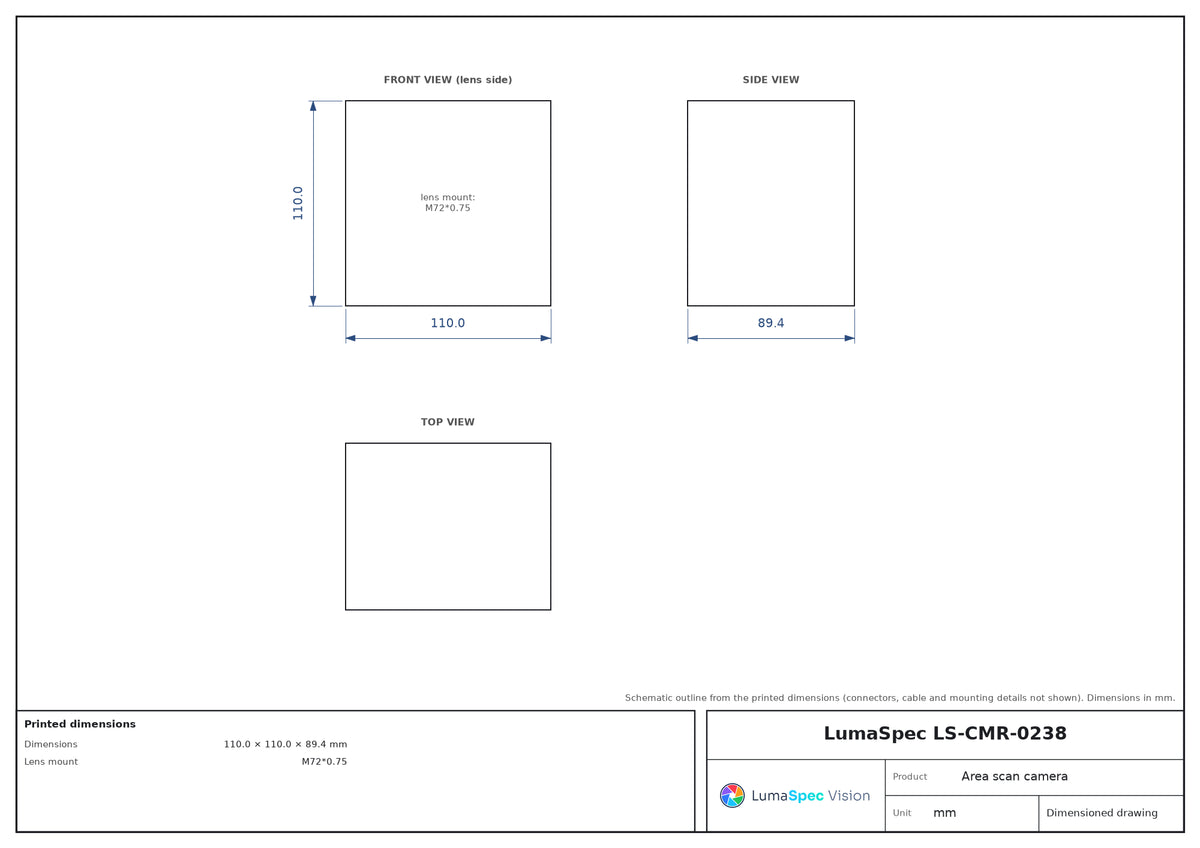

Dimensions110.0 × 110.0 × 89.4 mm (900g)
Lens mountM72*0.75
Shipping weight1.32 kg
